HP ProBook 455 G5

To Next Page

To Previous Page

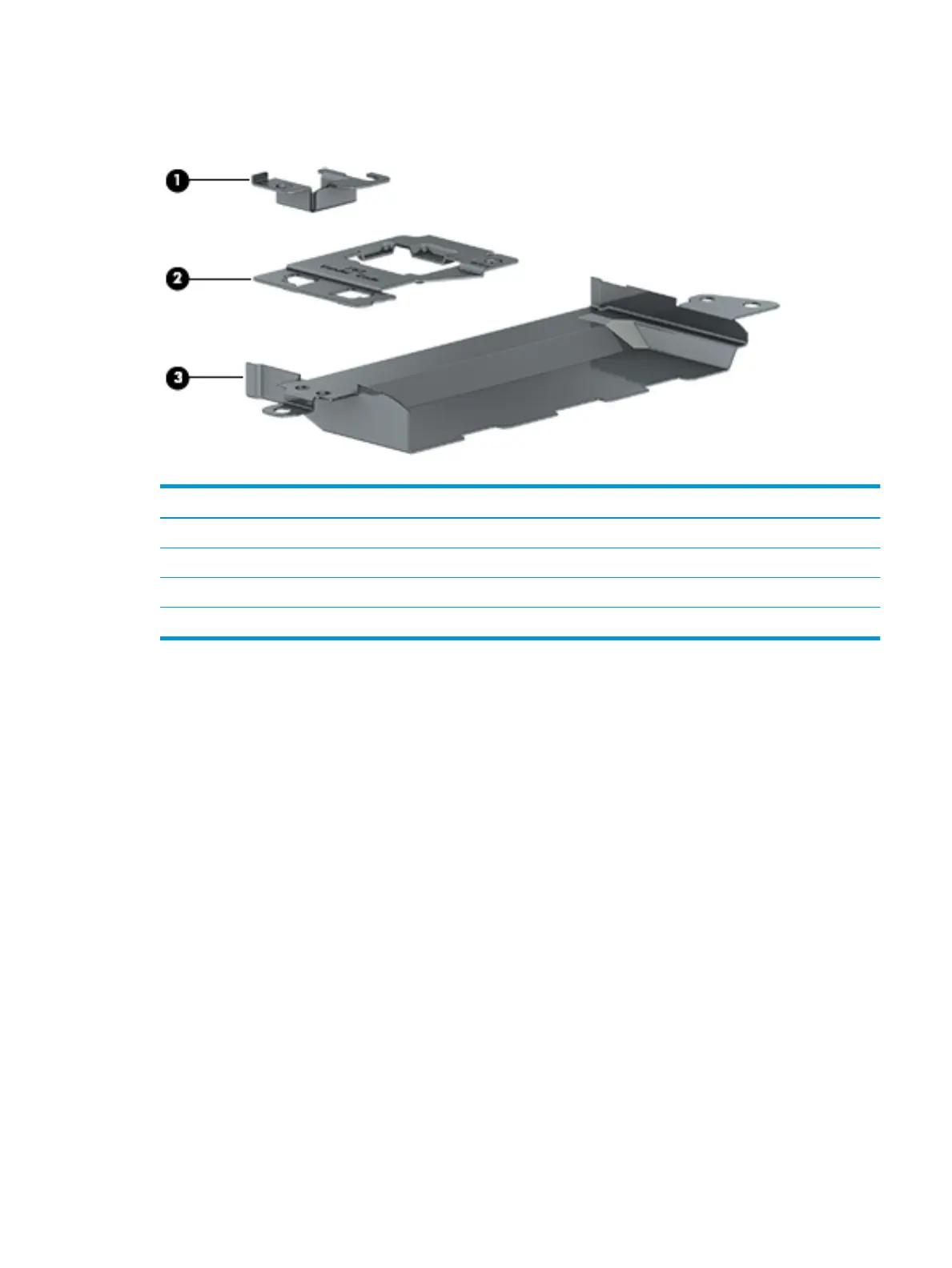

Bracket Kit

Item Description Spare part number

Bracket Kit L01029-001

(1) USB Type-C connector bracket

(2) Fingerprint reader bracket

(3) Fan bracket

Bracket Kit 21
