Power connector and cable
Description Spare part number
Power connector and cable L01952-001
Before removing the power cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
4. Remove the following components:
a. Service door (Service doors on page 32).
b. Hard drive (Hard drive on page 38)
c. Keyboard (Keyboard on page 41)
d. Top cover (Top cover on page 45)
e. Card reader board (Card reader board on page 59)
f. Battery (Battery on page 60)
g. Display assembly right hinge (Display assembly on page 67)

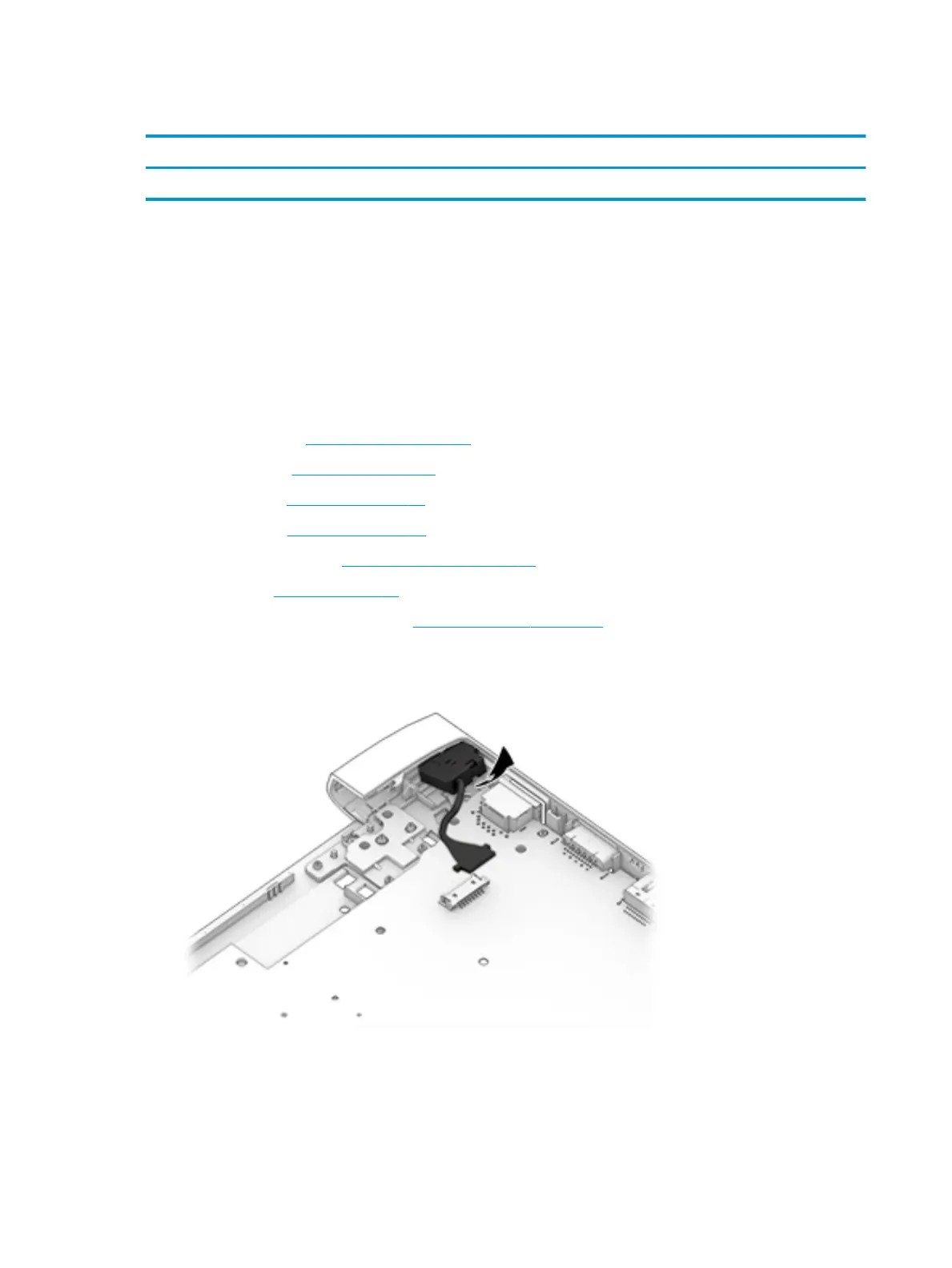

Remove the power cable:
▲
Rotate the bottom of the power cable upward to remove it from the computer.
Reverse this procedure to install the power cable.
72 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
