Power button board
Description Spare part number
Power button board L00832-001
Power button board cable (included in Cable Kit) L00847-001
Before removing the power button board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Place the computer in “Battery Safe mode” (Battery Safe mode on page 31).
3. Disconnect all external devices connected to the computer.
4. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet, and
then unplugging the AC adapter from the computer.
5. Remove the following components:
a. Service doors (Service doors on page 32)
b. Hard drive (Hard drive on page 38)
c. Keyboard (Keyboard on page 41)
d. Top cover (Top cover on page 45)

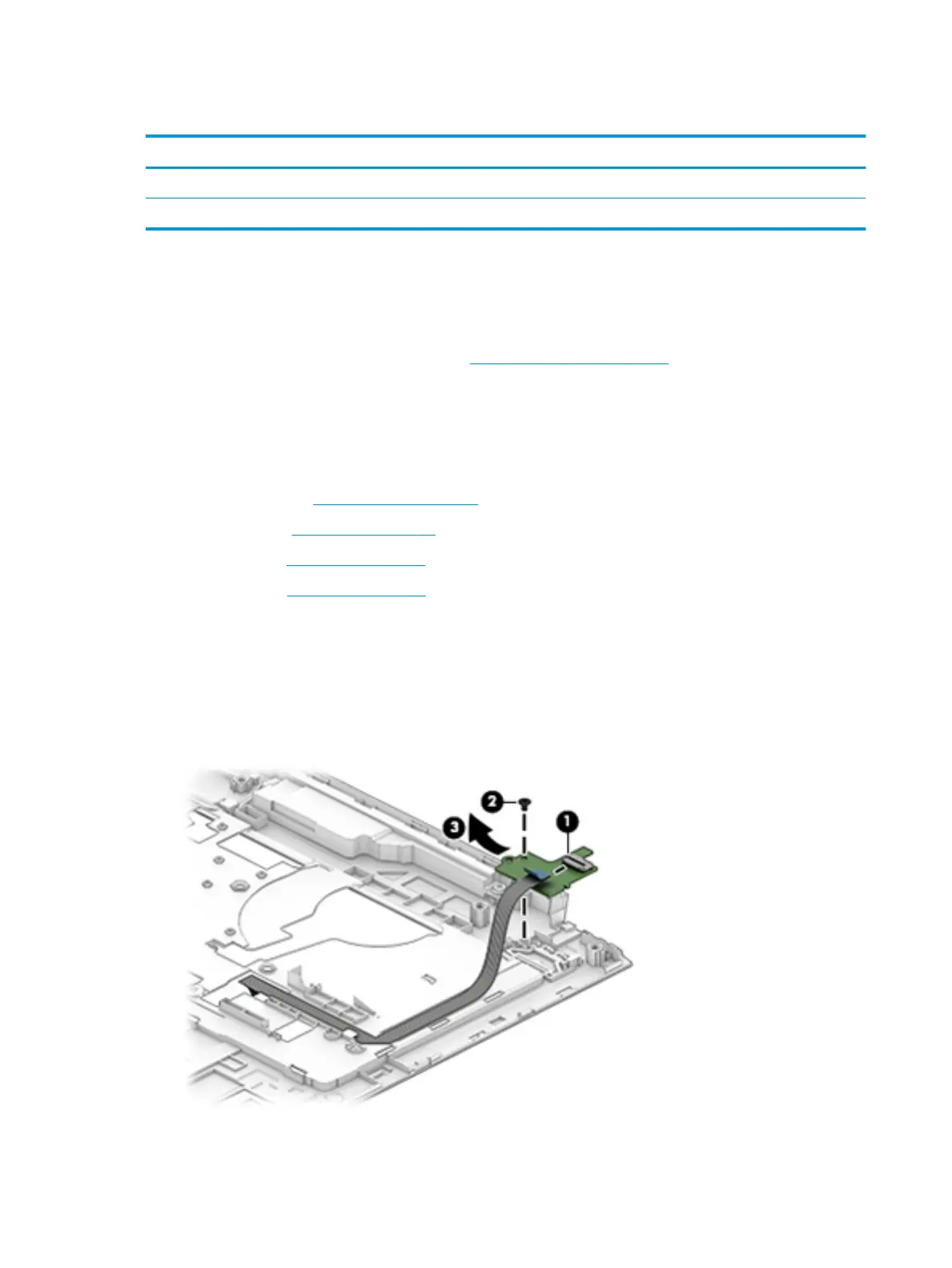

Remove the power button board:
1. Position the top cover upside-down.
2. Disconnect the cable from the connector on the board (1).
3. Remove the Phillips M2.0×3.0 screw (2) that secures the board to the top cover.
4. Lift the left side of the board, and then pull the board to the left (3) to remove it from the top cover.
Reverse this procedure to install the power button board.
