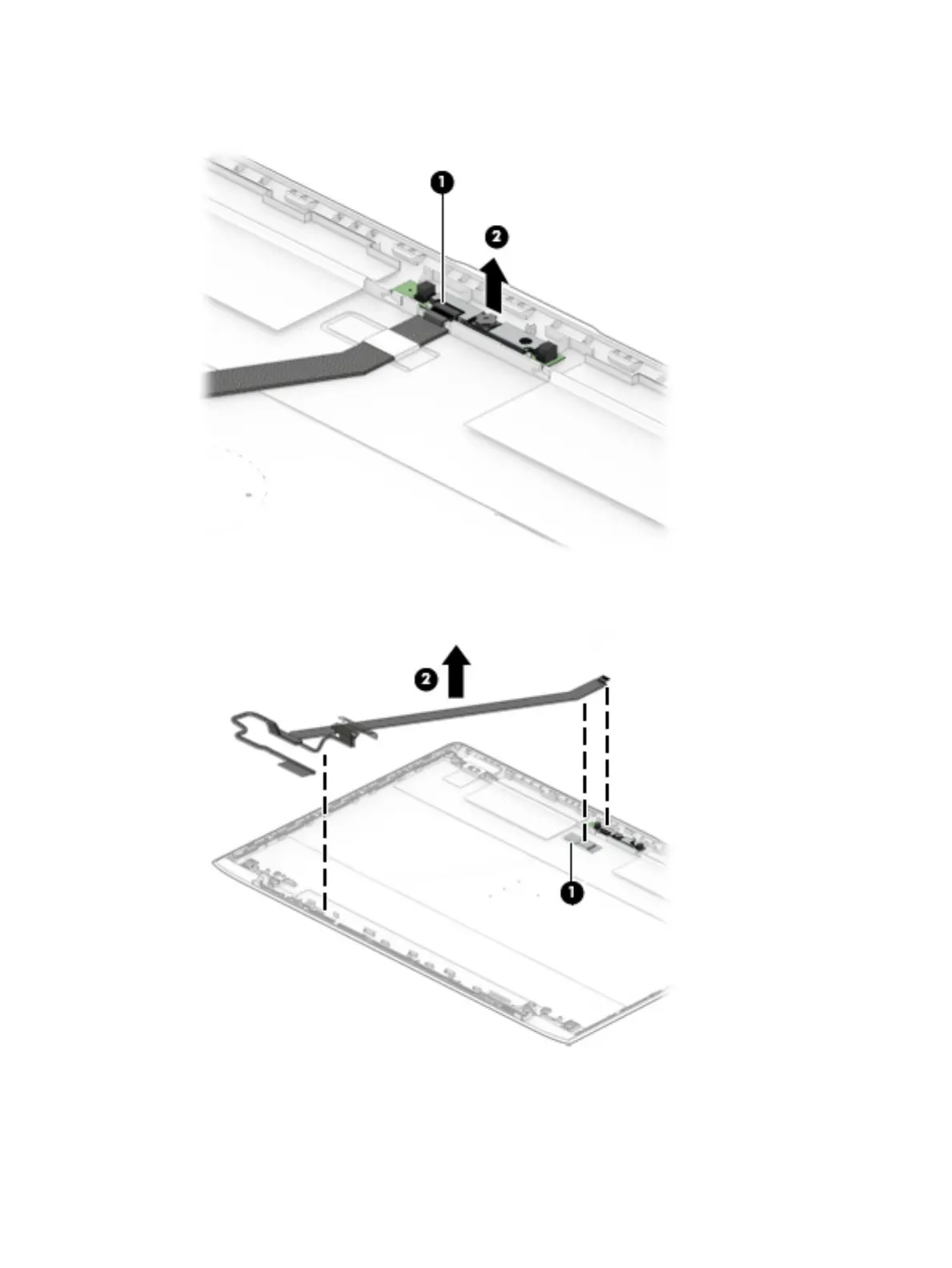

12. If it is necessary to remove or replace an HD camera, disconnect the cable from the camera (1), and then
peel the camera module up to remove it from the adhesive that secures it to the enclosure (2) .
13. If it is necessary to remove or replace an HD display/camera cable, remove the cable from under the tab
that secures it to the enclosure (1), and then remove the cable from the display enclosure (2).
Reverse this procedure to reassemble the display assembly.
