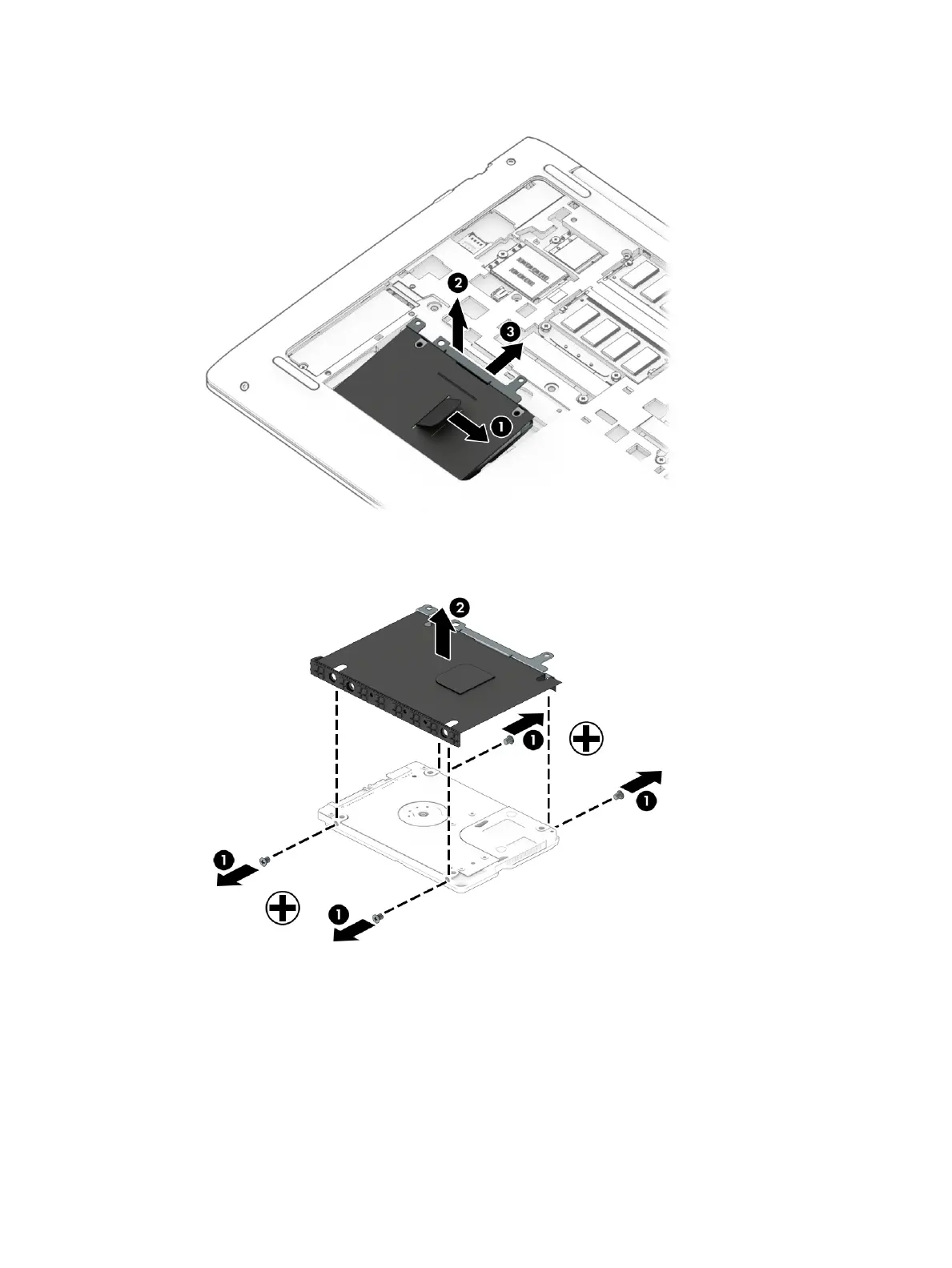

3. Lift the bracket side of the drive (2), and then remove the drive from the bay (3).
4. To remove the hard drive cover from the hard drive, remove the 4 Phillips M3.0×3.0 screws (1) that
secure the cover to the drive, and then remove the cover from the drive (2).
Reverse these procedures to install a hard drive.
Component replacement procedures 39
