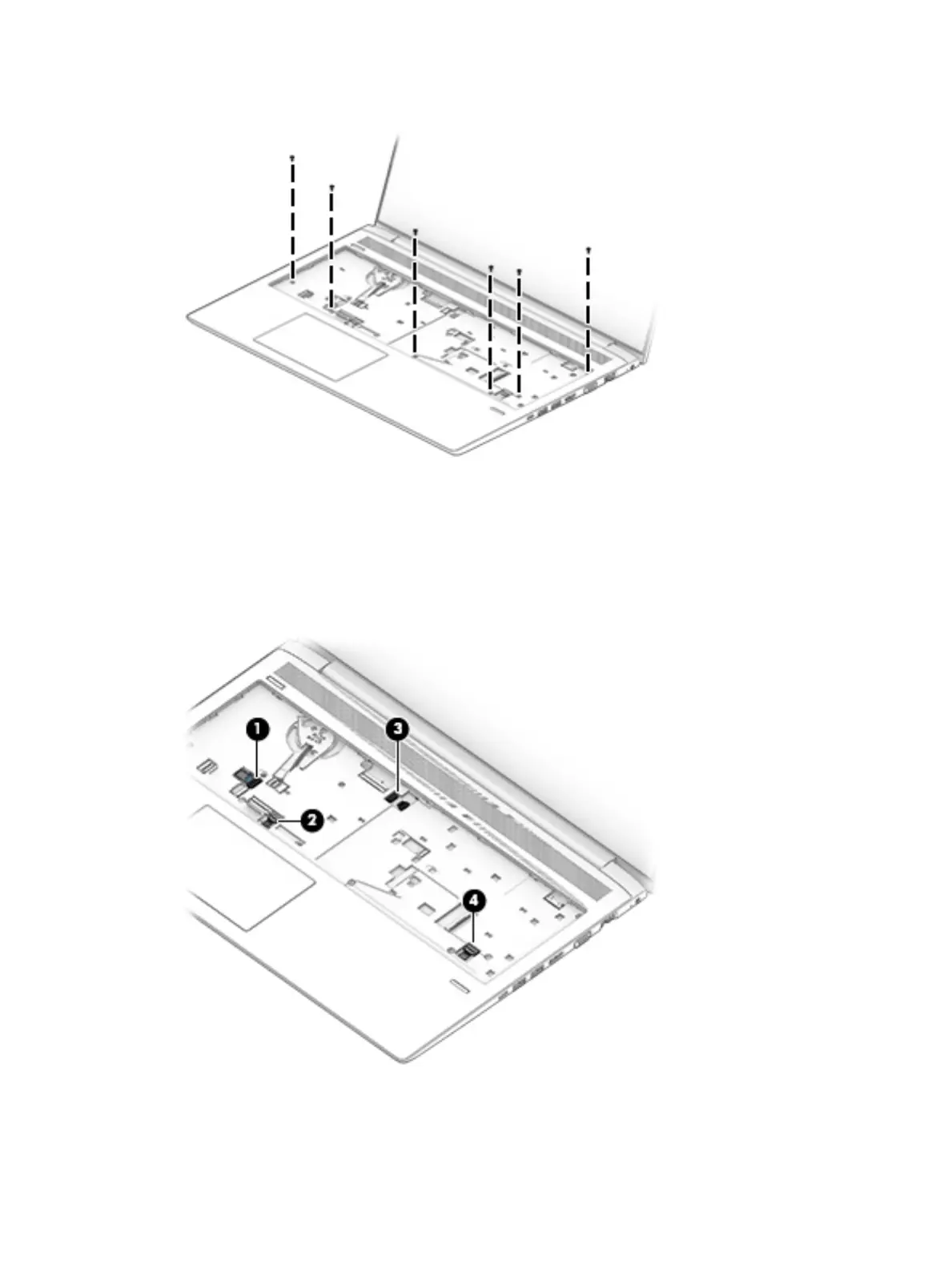

6. Remove the 6 Torx T8 2.5×5.0 screws from under the keyboard.

7. Disconnect the following cables from the system board:

(1) Power button board cable

(2) TouchPad cable

(3) Speaker cable

(4) Fingerprint reader cable

46 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
