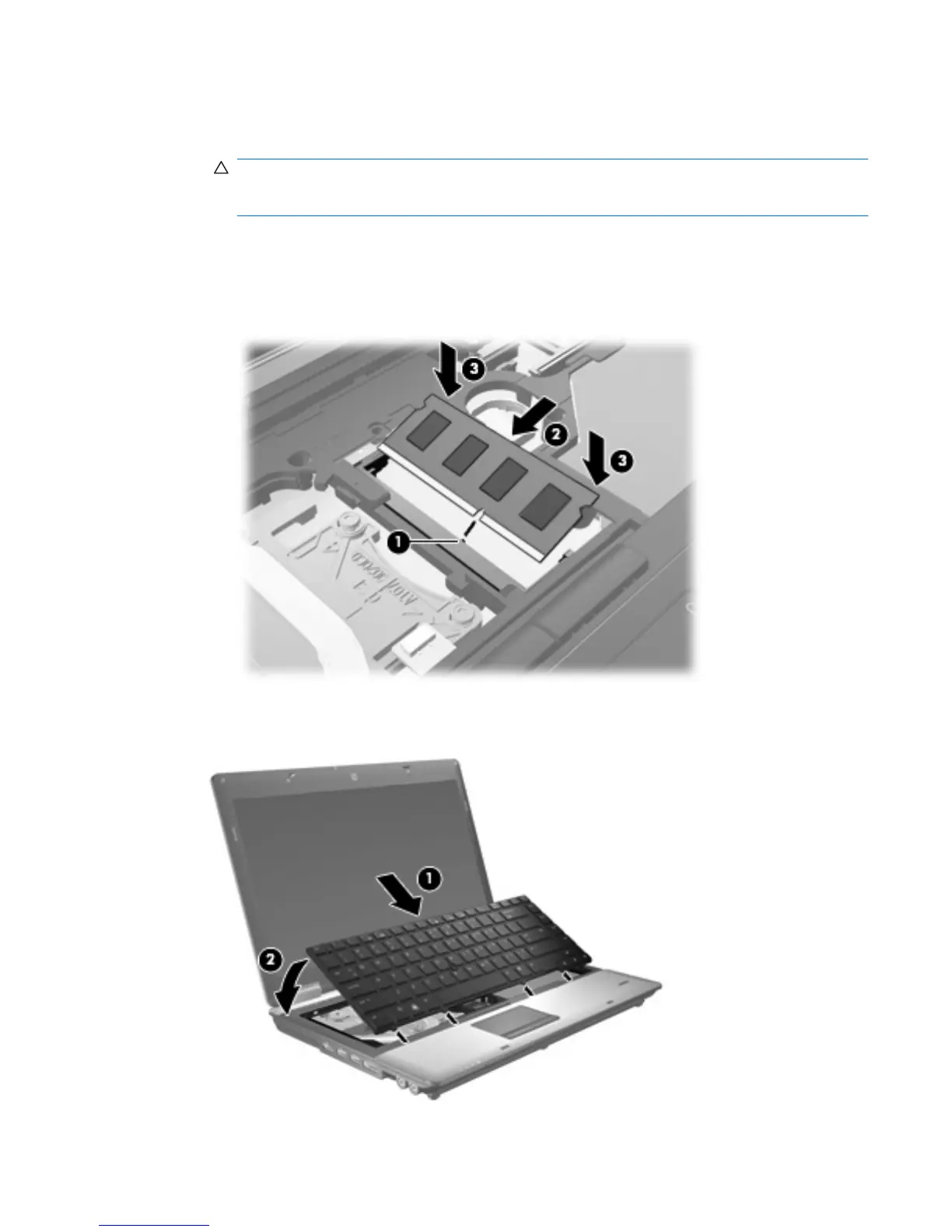

11. Insert a memory module:
a. Align the notched edge (1) of the memory module with the tab in the memory module slot.
CAUTION: To prevent damage to the memory module, hold the memory module by the
edges only. Do not touch the components on the memory module and do not bend the memory
module.
b. With the memory module at a 45-degree angle from the surface of the memory module
compartment, press the module (2) into the memory module slot until it is seated.
c. Gently press the memory module (3) down, applying pressure to both the left and right edges
of the memory module, until the retention clips snap into place.
12. Align the notched edge (1) of the keyboard with the tabs in the keyboard slot and lower the keyboard
(2) until it is seated.
Upgrading a memory module in the primary memory module slot 111

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP ProBook 6450b - Notebook PC and is the answer not in the manual?

HP ProBook 6450b - Notebook PC Specifications

General IconGeneral
ProcessorIntel Core i5 or i7
RAMUp to 8 GB DDR3
Operating SystemWindows 7 Professional
CPUIntel Core i5 or i7
StorageUp to 500GB HDD or 256GB SSD
Display14.0-inch diagonal LED-backlit HD anti-glare (1366 x 768 resolution)
GraphicsIntel HD Graphics
Battery6-cell Li-ion
ChipsetIntel QM57
Optical DriveDVD+/-RW SuperMulti DL
Wireless802.11a/b/g/n
AudioStereo speakers, microphone
PortsDisplayPort, VGA, RJ-45
Card Reader5-in-1
Webcam2 MP Webcam (optional)
