4–34 Maintenance and Service Guide
Removal and replacement procedures
3. Turn the computer display-side up, with the front toward you.
4. Open the computer as far as possible.

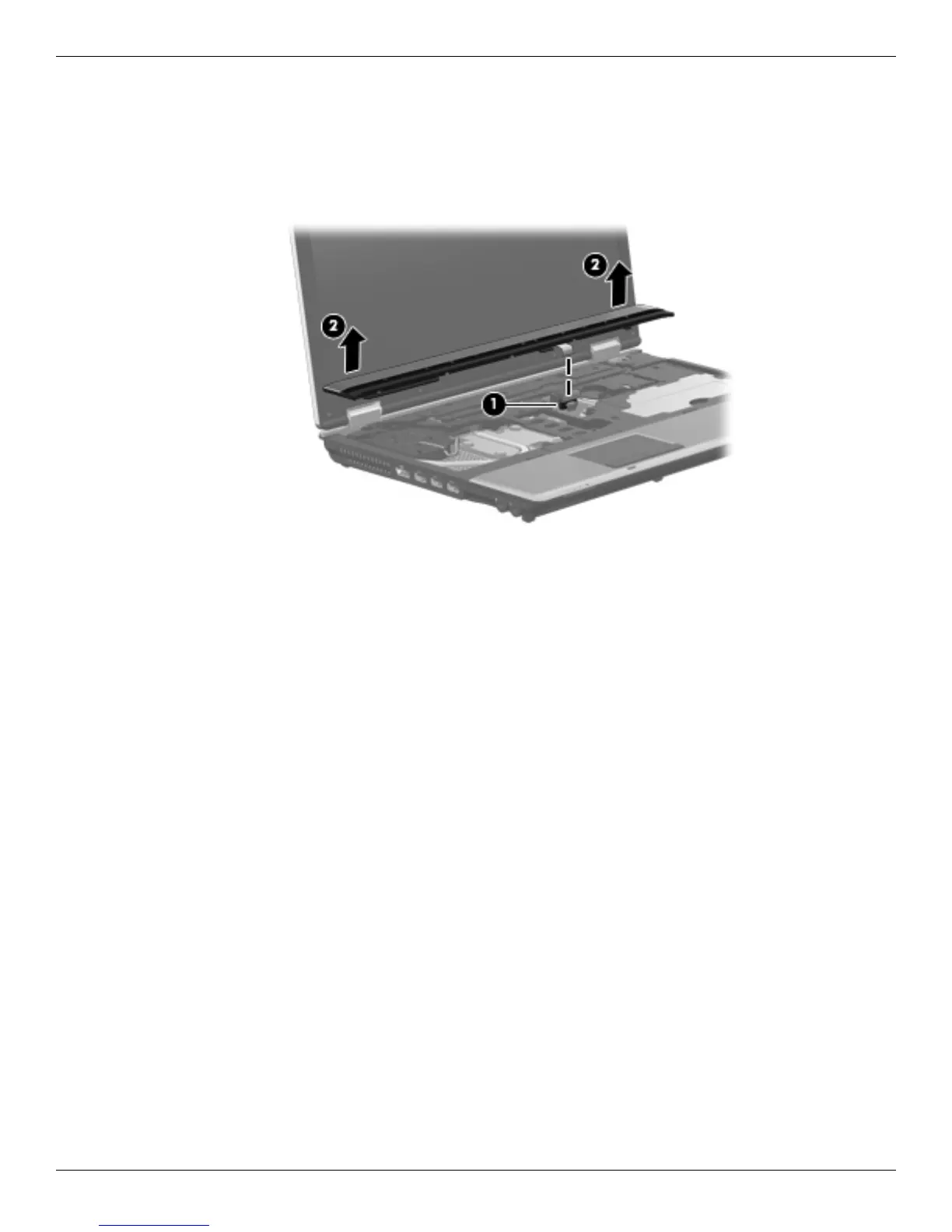

5. Release the ZIF connector to which the LED board cable 1 is attached, and then disconnect the LED board
cable from the system board.
6. Lift the left and right sides of the switch cover 2 until it detaches from the computer.
7. Remove the switch cover.
Reverse this procedure to install the switch cover.

HP ProBook 6540b Specifications

General

Graphics	Intel HD Graphics
Operating System	Windows 7 Professional
Processor	Intel Core i5-430M
RAM	Up to 8GB DDR3
Storage	250 GB HDD (7200 rpm)
Display	15.6-inch diagonal LED-backlit HD anti-glare (1366 x 768)
Battery	6-cell Li-Ion
Weight	2.6 kg (5.7 lbs)
Chipset	Mobile Intel HM57 Express
Optical Drive	DVD+/-RW SuperMulti DL
Wireless	802.11a/b/g/n
Ports	USB 2.0, VGA, DisplayPort, eSATA, RJ-45, headphone/microphone combo jack
