Removal and replacement procedures
Maintenance and Service Guide 4–23
Optical drive
✎
The optical drive spare part kit includes an optical drive bezel and bracket.
Before removing the optical drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-7).

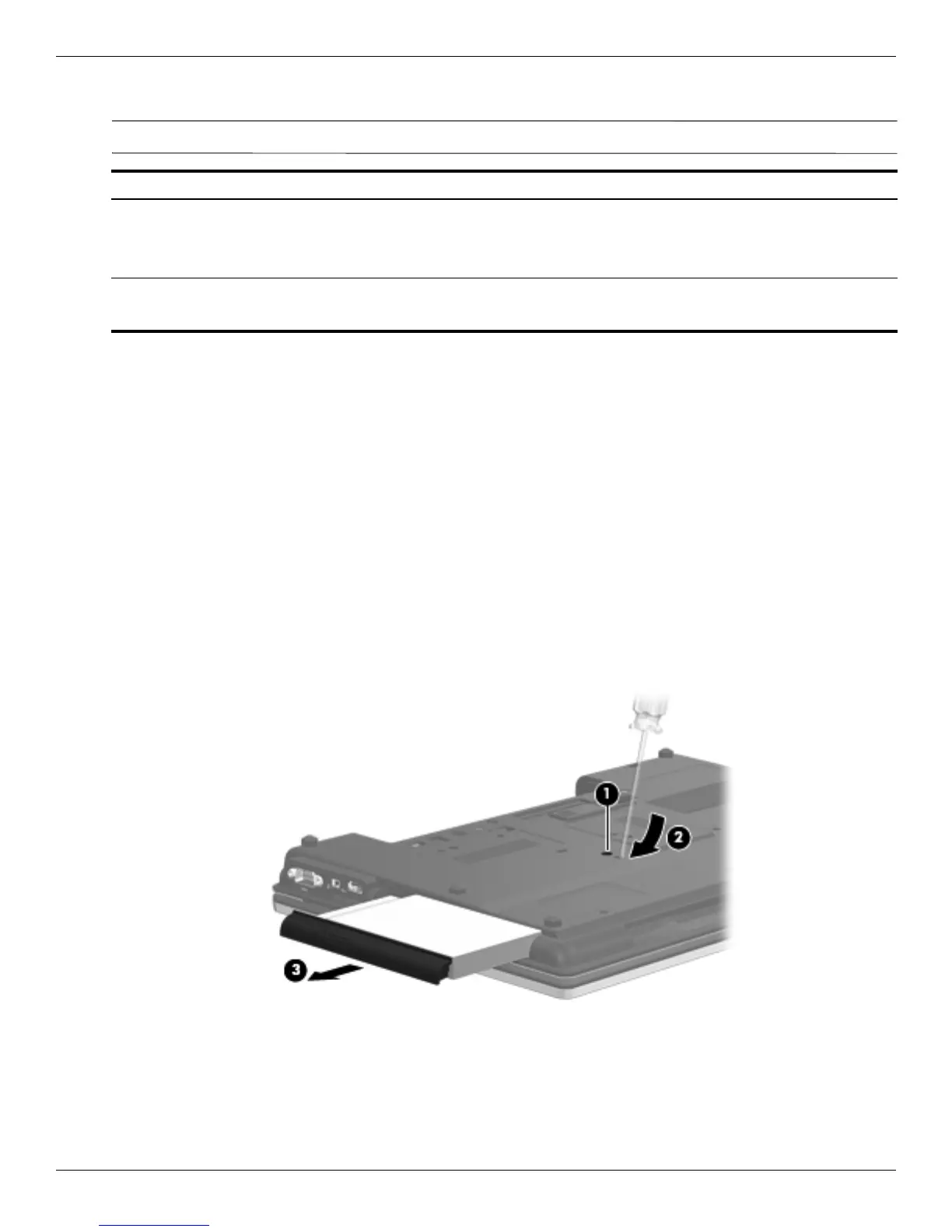

Remove the optical drive:
1. Position the computer with the front toward you.
2. Loosen the Phillips PM2.5×11.0 captive screw 1 that secures the optical drive to the computer.
3. Insert a flat-bladed screwdriver or similar tool into the optical drive tab access 2 and press the tab to the left to
release the optical drive from the computer.
4. Remove the optical drive 3 from the optical drive bay.
Description Spare part number
Blu-ray ROM with LightScribe DVD±RW SuperMulti Double-Layer Drive 583248-001
DVD±RW and CD-RW SuperMulti Double-Layer Drive 583250-001
DVD-ROM Drive 583249-001
MultiBay hard drive carrier - halogen free 614947-001
MultiBay hard drive carrier 583251-001
