9–4 Maintenance and Service Guide

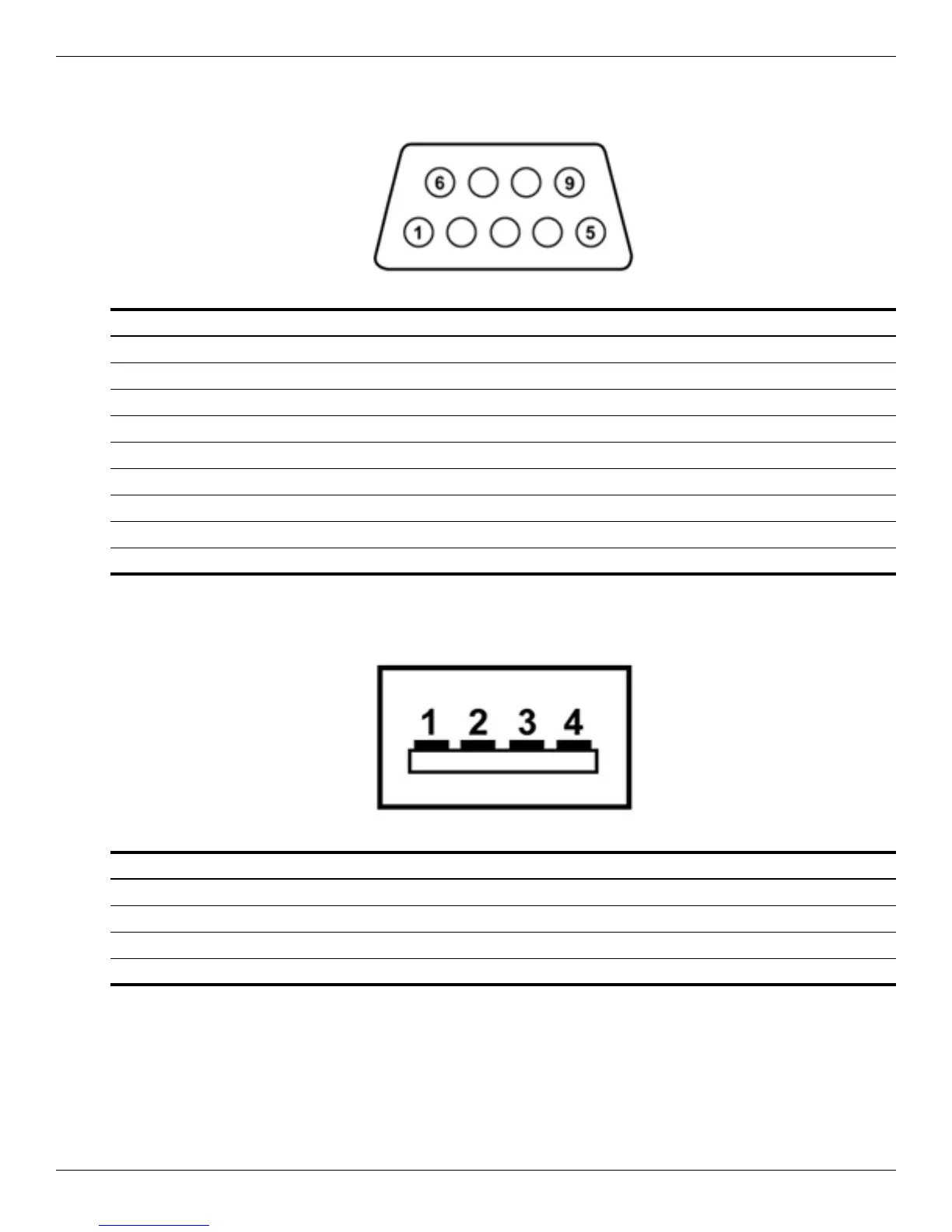

Connector pin assignments

Serial

Universal Serial Bus

Pin Signal

1 1 Data carrier detect

2 Received data

3 Transmitted data

4 Data terminal ready

5 Signal ground

6 Data set ready

7 Request to send

8 Clear to send

9 Ring indicator

Pin Signal

1+5 VDC

2Data

3Data +

4 Ground
