Maintenance and Service Guide 9–1
9

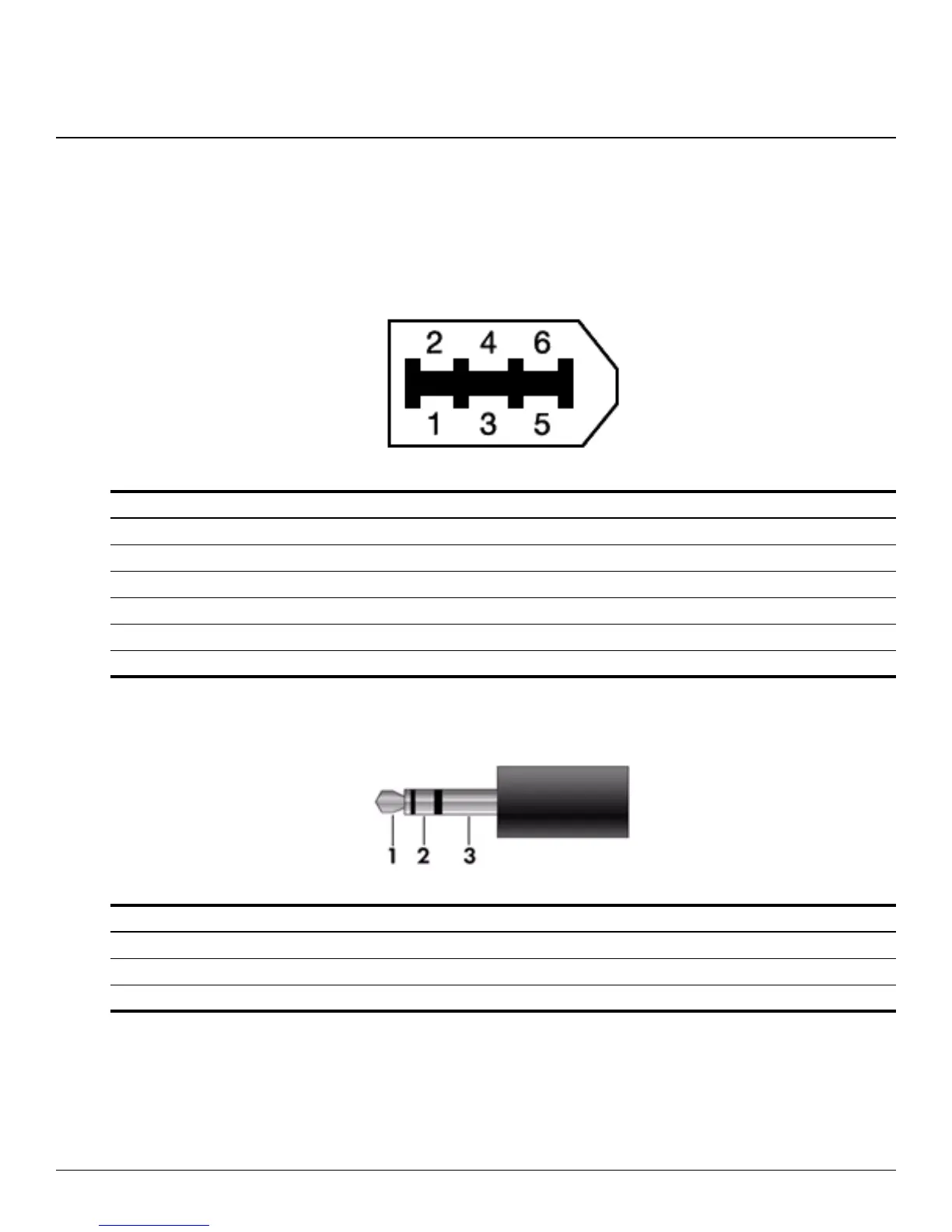

Connector pin assignments
1394
Audio-in (microphone)
Pin Signal
1Power
2 Ground
3TPB-
4TPB+
5TPA-
6TPA+
Pin Signal
1 Audio signal in
2 Audio signal in
3 Ground
