Removal and replacement procedures

Maintenance and Service Guide 4–81

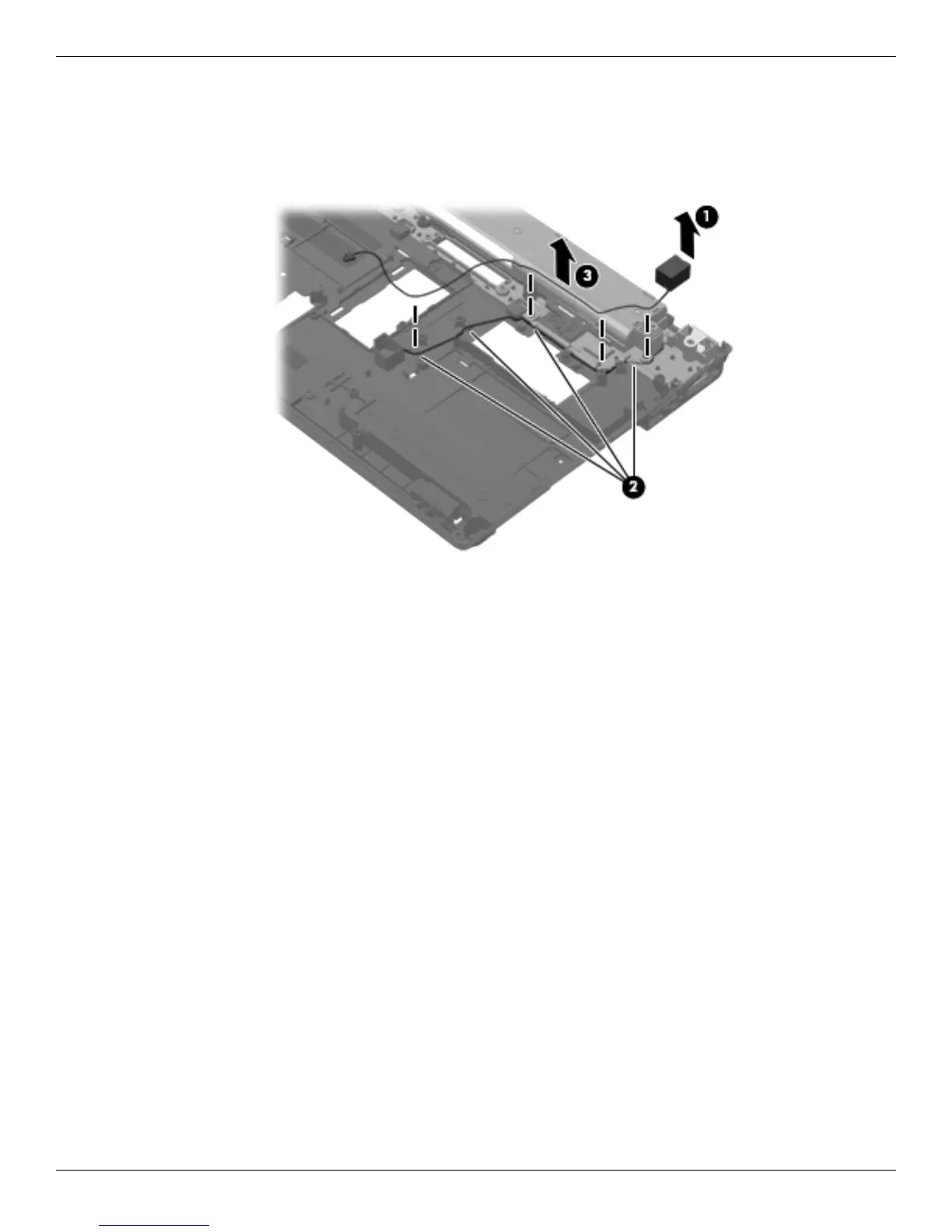

Remove the modem module cable:

1. Release the RJ-11 connector 1 from the clip built into the base enclosure.

2. Release the modem module cable from the clips 2 and routing channel built into the base enclosure.

3. Remove the modem module cable 3.

Reverse this procedure to install the modem module cable.
