Configuring Port-Based and Client-Based Access Control (802.1X)
How RADIUS/802.1X Authentication Affects VLAN Operation
This entry shows that port A2 is temporarily untagged on
VLAN 22 for an 802.1X session. This is to accommodate
an 802.1X client’s access, authenticated by a RADIUS
server, where the server included an instruction to put
the client’s access on VLAN 22.
Note: With the current VLAN configuration (figure 10-9),
the only time port A2 appears in this show vlan 22 listing
is during an 802.1X session with an attached client.
Otherwise, port A2 is not listed.

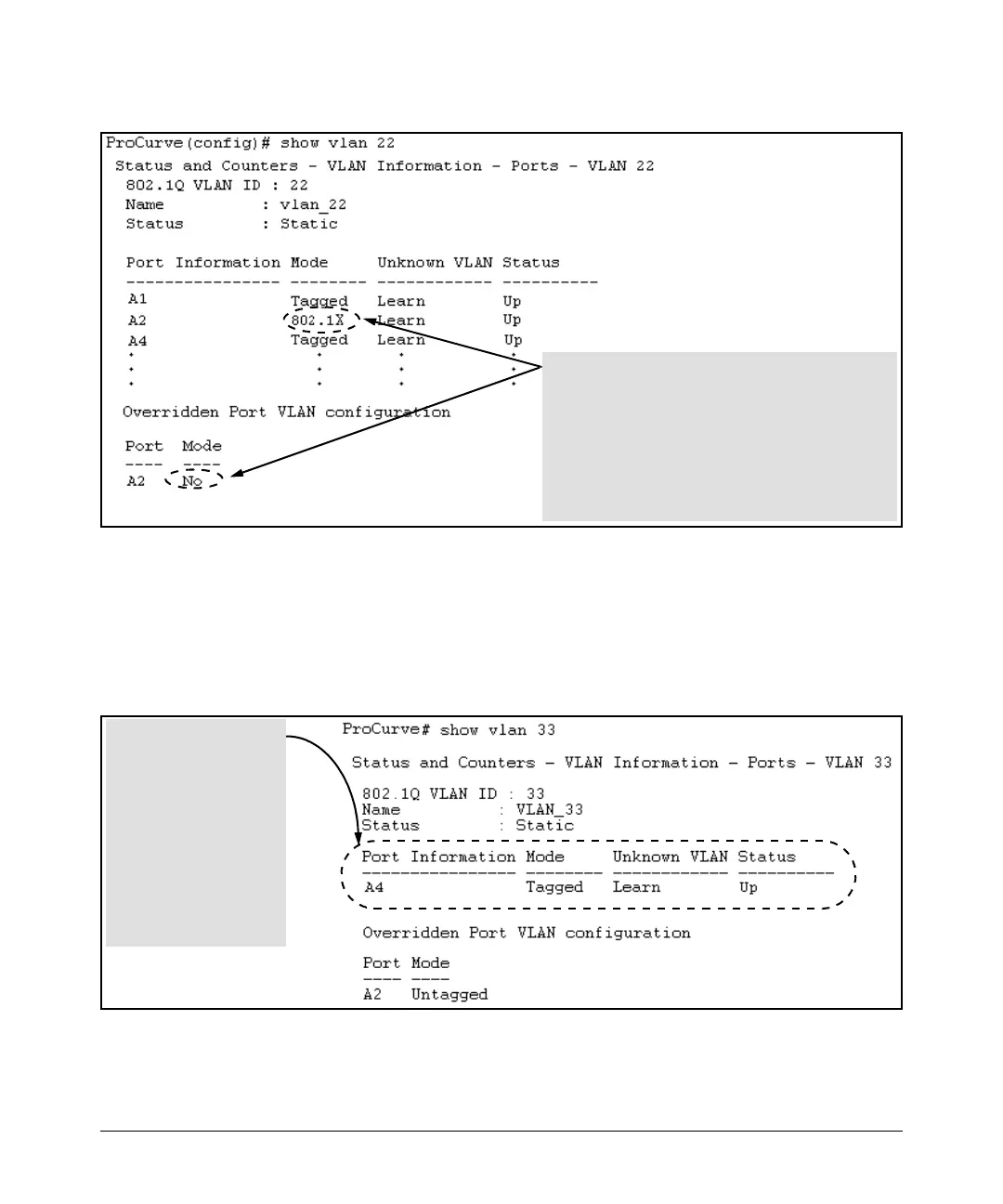

Figure 10-10.The Active Configuration for VLAN 22 Temporarily Changes for the 802.1X Session
â– With the preceding in mind, since (static) VLAN 33 is configured as
untagged on port A2 (see figure 10-9), and since a port can be untagged
on only one VLAN, port A2 loses access to VLAN 33 for the duration of
the 802.1X session involving VLAN 22. You can verify the temporary loss
of access to VLAN 33 with the show vlan 33 command.
Even though port A2 is
configured as Untagged
on (static) VLAN 33 (see
figure 10-9), it does not
appear in the VLAN 33
listing while the 802.1X
session is using VLAN 22
in the Untagged status.
However, after the 802.1X
session with VLAN 22
ends, the active
configuration returns port
A2 to VLAN 33.
Figure 10-11.The Active Configuration for VLAN 33 Temporarily Drops Port 22 for the 802.1X Session
