1-9
Introducing the ProCurve Series 5400zl Switches
Back of the Switch
Introducing the ProCurve
Series 5400zl Switches
■ Restoring Factory Default Configuration - When pressed with the
Reset button in a specific pattern, the Clear button clears any configura-
tion changes you may have made through the switch console, the web
browser interface, or SNMP management, and restores the factory default
configuration to the switch. For the specific method to restore the factory
default configuration, see “Restoring the Factory Default Configuration”
in chapter 4, “Troubleshooting” of this manual.
Back of the Switch
.

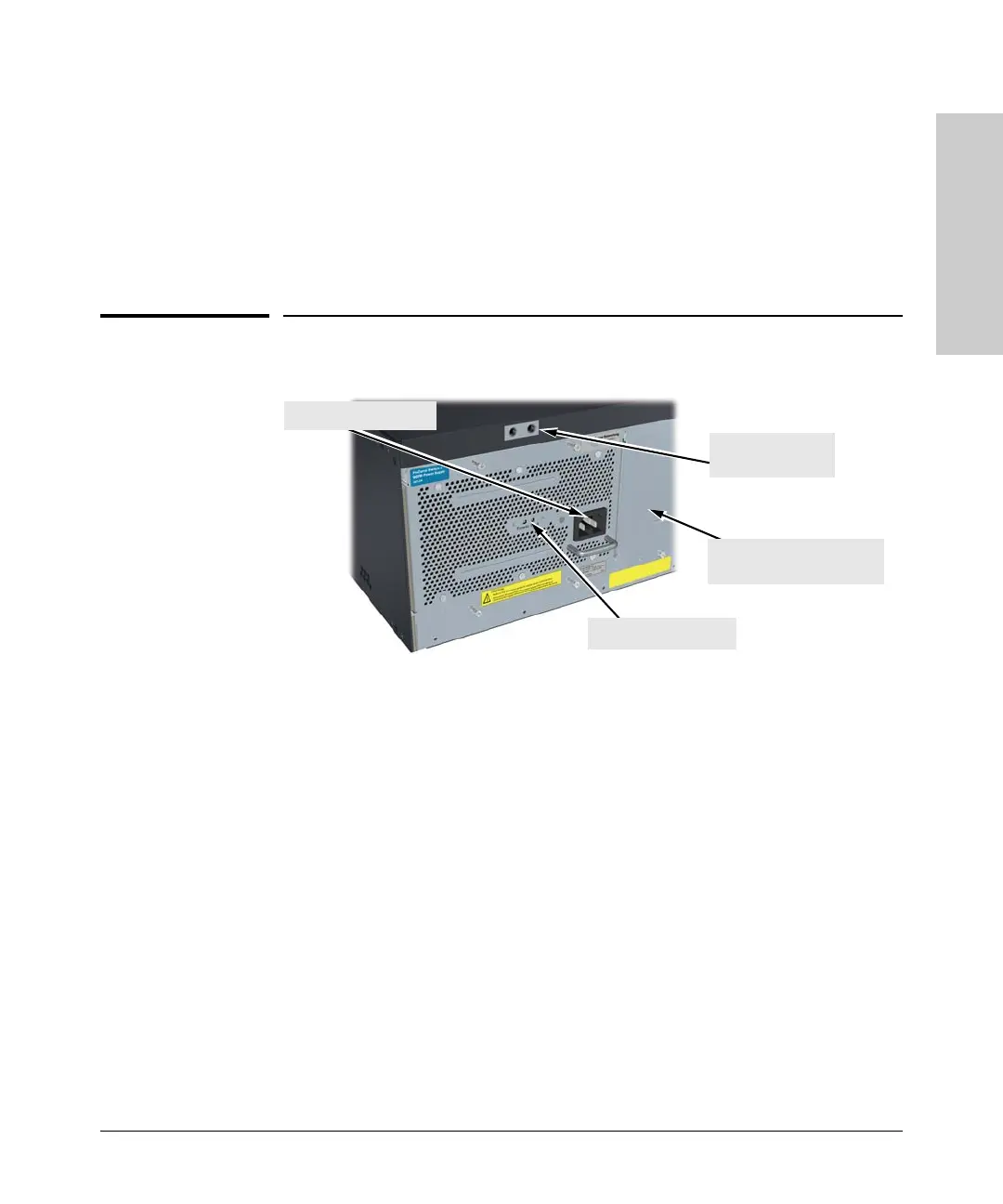

Figure 1-5. Back of Switch with One Power Supply
Power Connector
The Series 5400zl Switches do not have a power switch; they are powered on
when connected to an active AC power source. The Series 5400zl Switches
automatically adjust to any voltage between 100-127 and 200-240 volts when
using the J8712A power supply, and 200-240 volts only when using the J8713A
power supply, and either 50 or 60 Hz.There are no voltage range settings
required.
Slot for Redundant Power Supply
A second, load-sharing redundant power supply (ProCurve Switch zl 875 W
Power Supply, J8712A or a ProCurve Switch zl 1500 W Power Supply J8713A)
can be installed in the back of the Series 5400zl Switches. To provide redun-
dancy, this second power supply should be connected to a different AC power
source from the other supply. Then, if one AC power source fails, the switch
will continue to run.
Grounding lug
mounting holes
AC power connector
Power and Fault
Slot for installing optional
redundant power supply
To Next Page
