2-9
Installing the Series 5400zl Switches
Installation Procedures
Installing the Series 5400zl
Switches

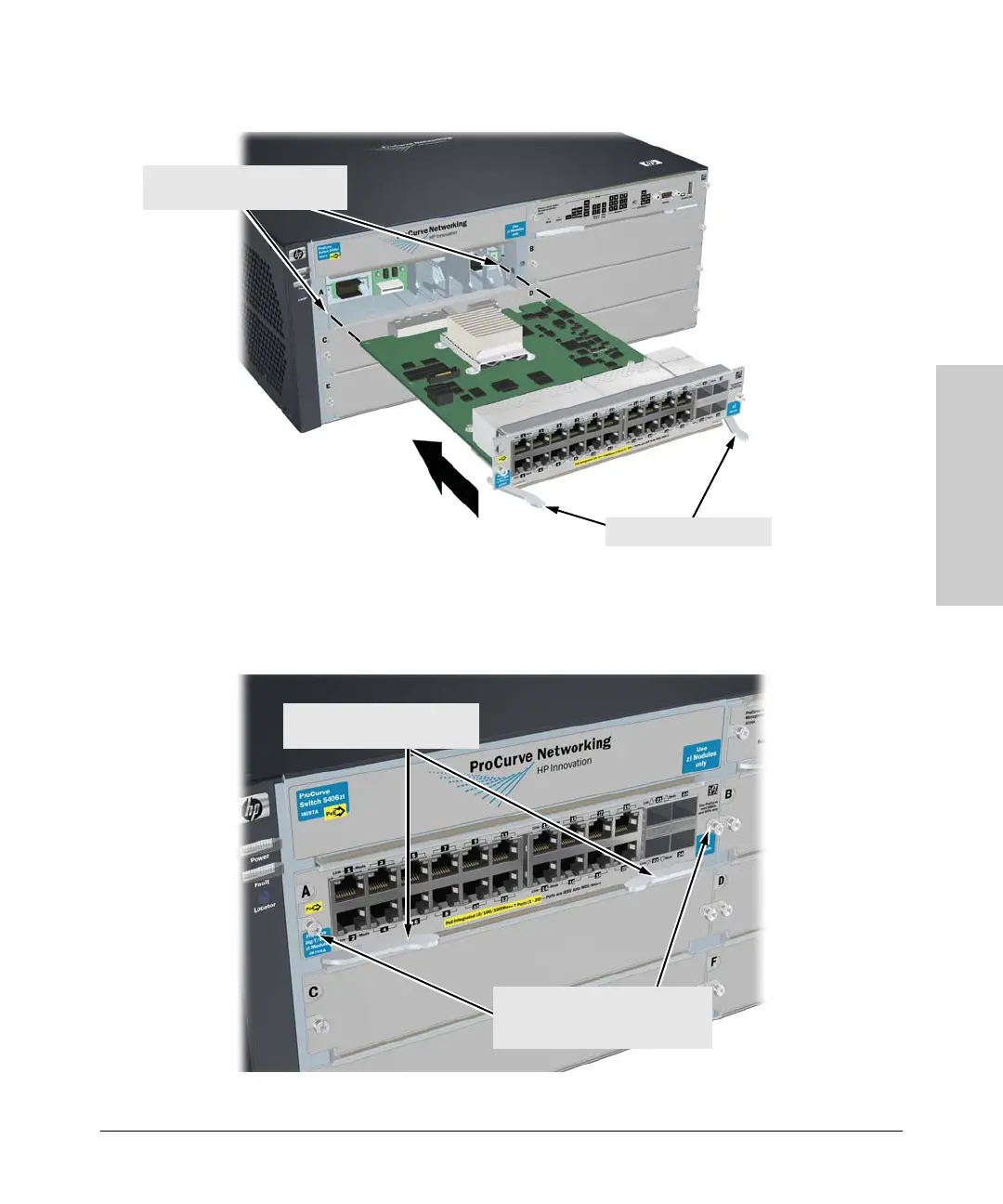

Figure 2-1. Module Being Installed in a Chassis
Figure 2-2. Generic Chassis with Module Fully Installed
Insert module into the guides and
slide it in until it is fully inserted.
Open extractor handles
Then tighten the retaining screws
on the module until they are secure,
but do not overtighten them.
Use the extractor handles to
seat the module completely.
