Installing the Series 5400zl Switches
Installation Procedures
Installing the Series 5400zl
Switches

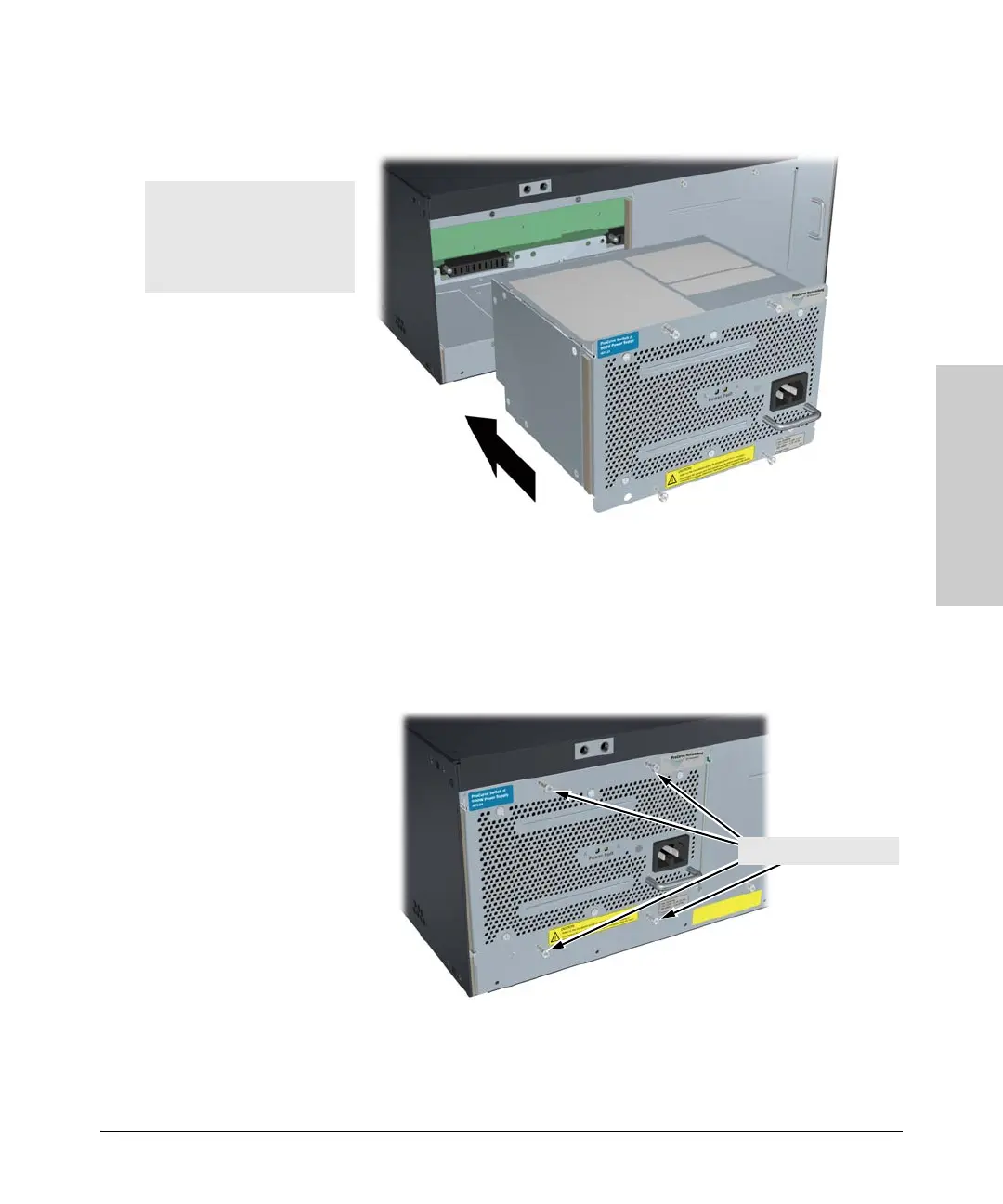

Figure 2-3. Installing a Power Supply
Once the power supply is installed, tighten the four retaining screws that hold
it in place. The screws can be tightened with either a flat-bladed or Torx T-10
screwdriver. Be careful not to overtighten the screws.
Figure 2-4. Back of Switch with Power Supply Fully Installed
Insert the power supply into the
opening, then slide it all the way in
until it connects to the switch. The
power supply face plate will be
flush with the back face of the
switch.
tighten the four screws
