Introducing the Switch
Back of the Switch
Introducing the Switch
Back of the Switch

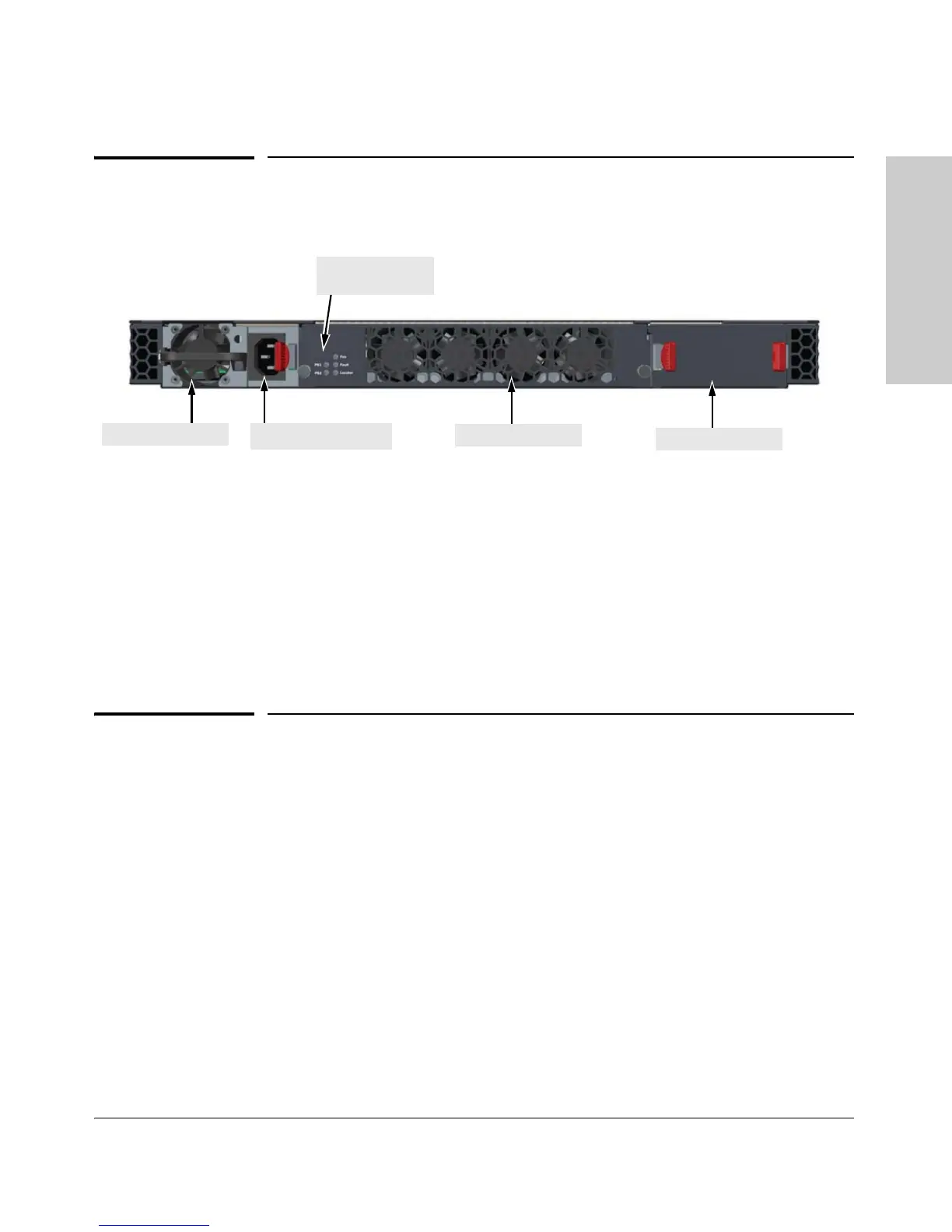

Figure 1-6. HP ProCurve Series 6600 Switches. The backs of all these switches
are the same.
Power Connector
The Series 6600 Switches do not have a power switch; they are powered on
when connected to an active AC power source. These switches automatically
adjust to any voltage between 100--127 and 200--240 volts and either 50 or 60
Hz. There are no voltage range settings required.
Switch Features
The features of the Series 6600 Switches include:
■ 24 auto-sensing 10/100/1000Base-T RJ-45 ports with Auto-MDIX or 24
SFP+ 10-GbE ports. The 6600-24G-4XG has only 4 SFP+ 10-GbE ports.
■ Four dual-personality ports—either the auto sensing 10/100/1000Base-T
RJ-45 or the mini-GBIC can be used for each port. The 6600-24XG does
not have these dual-personality ports.
■ An auxiliary (USB) port for processing a USB command file.
■ Plug-and-play networking—all ports are enabled—just connect the
network cables to active network devices and your switched network is
operational.
AC power connector
Extra power slot
Power supply
Fan tray assembly
Power supply and
Locator LEDs
