2-14
Installing the Switch
Installation Procedures
Installing the Switch
5. Connect the Switch to a Power Source
1. Plug the included power cord into the switch’s power connector and into
a nearby AC power source.
2. Re-check the LEDs during self test. See “LED Behavior” on page 2-7.

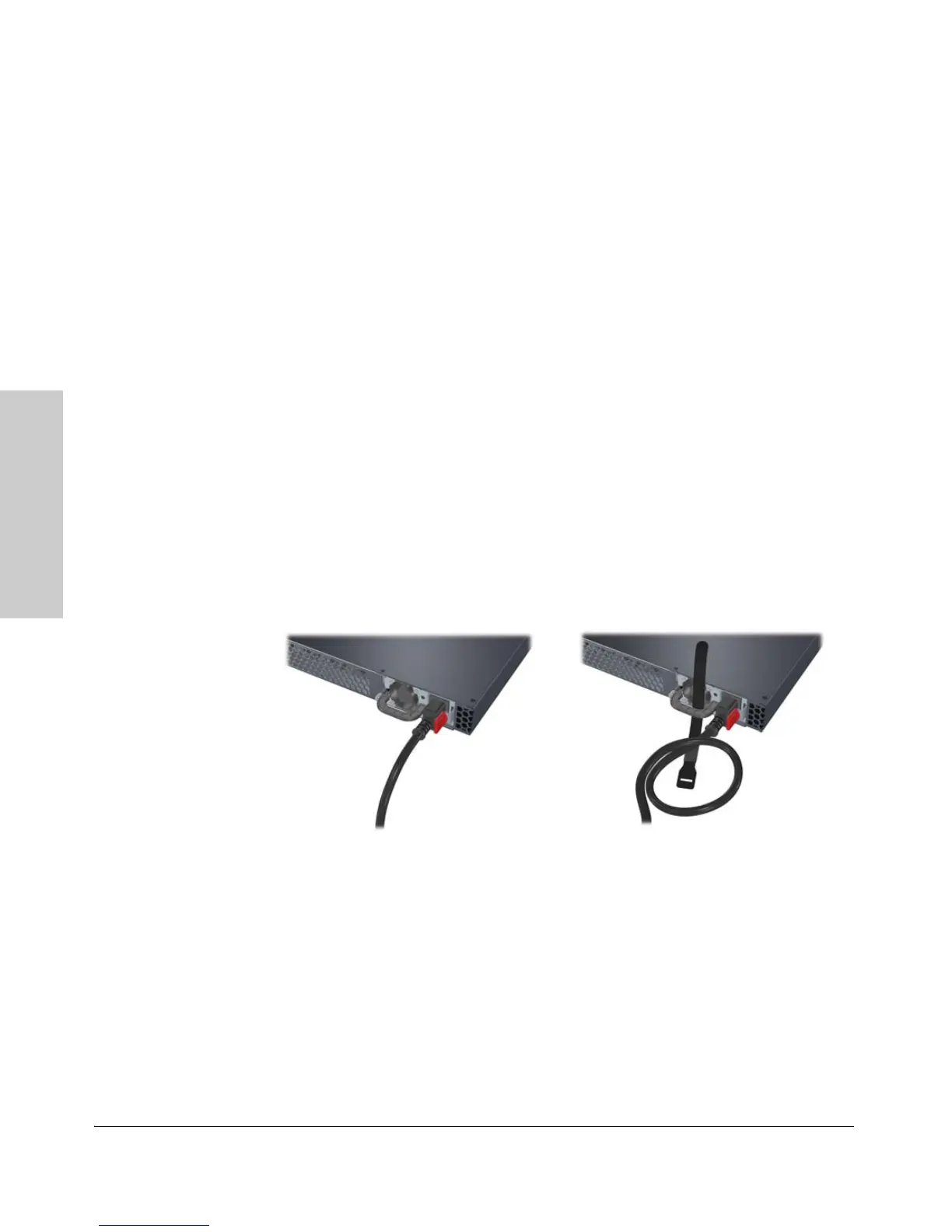

Securing the power cord
1.Connect the power cord to the power supply.
2.Make a small loop in the power cord, approximately 3 to 4 inches
and insert the velcro strap through the loop and through the handle
on power supply.
3.Insert the end of the velcro strap through the slot in the other end
of the velcro strap.
4.Tighten the velcro strap around the loop in the power cord.
5.Wrap the excess velcro strap around the power cord loop and
through the power supply handle a couple of times and secure the
velcro strap to itself.
1. 2.
To Next Page
