Figure 11 shows an FCoE end-to-end direct-connect storage configuration using an MPX200
Multifunction Router and EVA storage systems. This provides 10-GbE FCoE and optionally, iSCSI
connectivity for up to two EVA storage systems without requiring any Fibre Channel switches.
26652b
Servers with CNAs
Servers with NICs
FCoE/IP
/iSCSI
MPX200
FCoE/iSCSI
target
EVA Storage Systems
Ethernet
Network
FCoE switches
FCoE/iSCSI
Converged
network
iSCSI/IP
IP
GE1 GE2
IOIOI
FC1 FC2MGMT
10GbE4 10GbE3
HP StorageWorks
MPX200
10 - 1 GbE Blade
MPX200 Multifunction Router
GE1 GE2
IOIOI
FC1 FC2MGMT
10GbE4 10GbE3
HP StorageWorks
MPX200
10 - 1 GbE Blade
MPX200 Multifunction Router
10-GbE/FCoE A/FCoE B connection
iSCSI/IP connection
10-GbE connection
FCoE/iSCSI connection
Fabric A Fibre Channel connection
Fabric B Fibre Channel connection

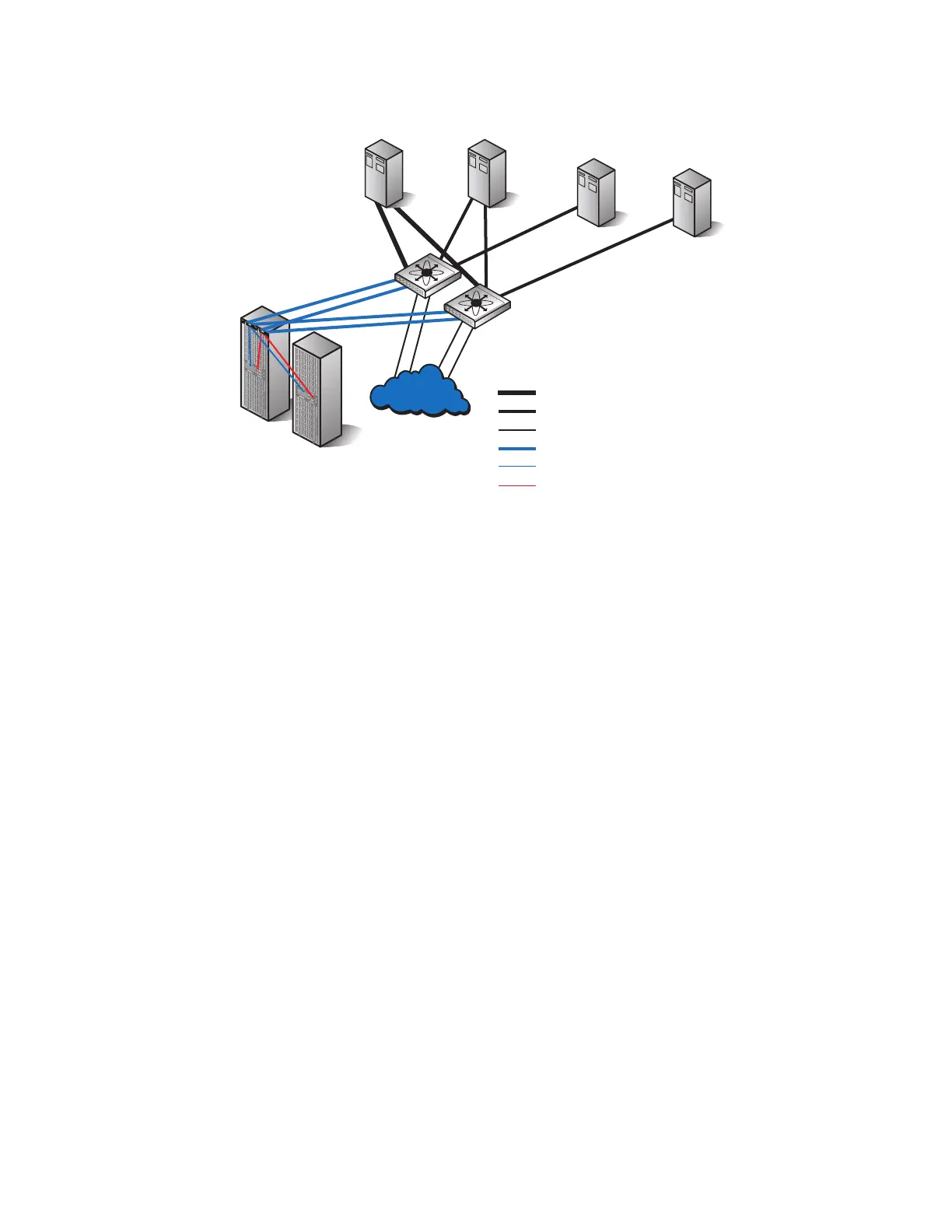

Figure 11 FCoE end-to-end direct-connect EVA storage configuration
.
The configuration shown in Figure 12 provides additional connectivity, allowing for up to four EVA
storage systems using a fabric connection between the MPX200 and EVAs. In addition to FCoE and
iSCSI, Fibre Channel connected servers can access the same EVA storage systems through the Fibre
Channel fabric. This configuration provides the highest level of multi-protocol support with FCoE,
iSCSI, and Fibre Channel connectivity for up to four EVA storage systems.
