Figure 10 shows a converged fabric that has servers with CNAs and servers with FC HBAs and NICs.
26649b
Server
with FC HBA
and NIC
IP network
Server
with FC HBA
and NIC
X-series
CN switch
FC attached
HP storage
Fabric A
X-series
FC switch
Server
with CNA
Server
with CNA
FC attached
HP storage
10-GbE
X-series
CN switch
Fabric B
X-series
FC switch
10-GbE/FCoE A/FCoE B connection
Fabric A Fibre Channel connection
Fabric B Fibre Channel connection
10-GbE connection

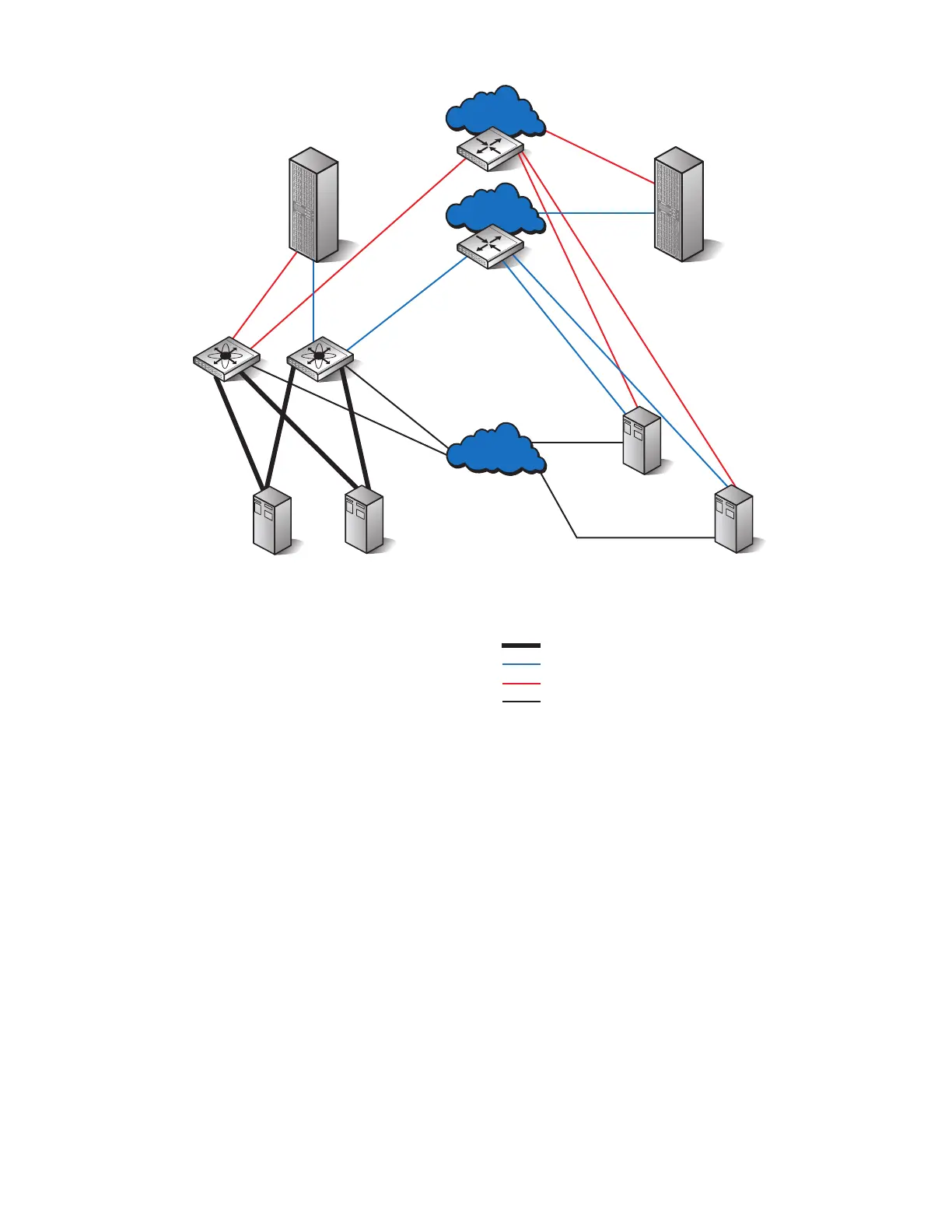

Figure 10 FCoE integrated with FC SAN fabric
.
