Hardware options installation 63

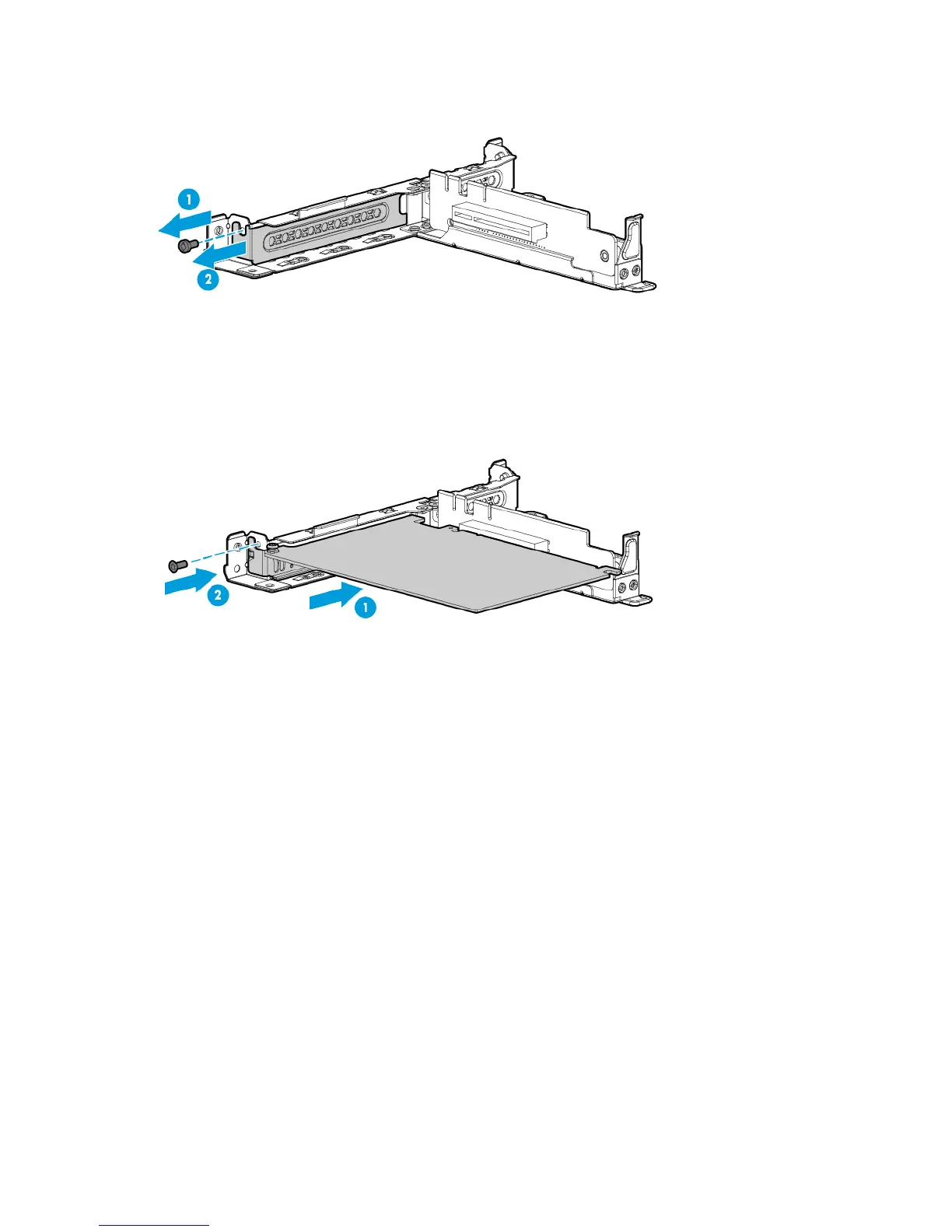

6. Remove the slot cover from the riser cage.
7. Install the expansion board.
8. Align the PCI riser board with the corresponding connector on the system board, and then press down
the riser cage.
