HP ProLiant DL120 Gen9 - Drive Cable Options; Mini-SAS Cable Options

Hardware options installation 45
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 17).
o Remove the server from the rack (on page 19).
4. Remove the access panel (on page 20).

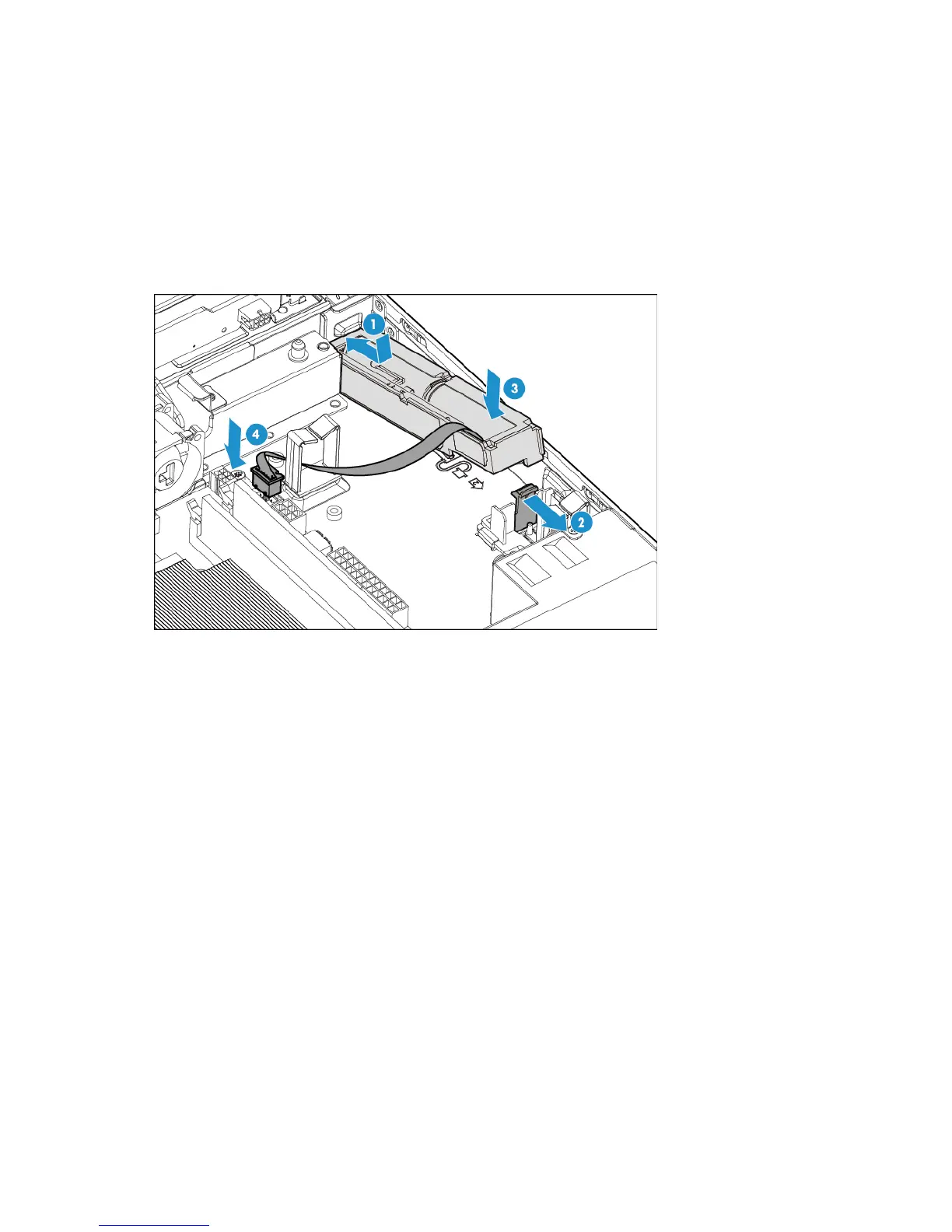

5. Install the HP Smart Storage Battery:
6. Install the access panel (on page 21).
7. Do one of the following:
o Slide the server into the rack.
o Install the server into the rack ("Installing the server into the rack" on page 31).
8. Power up the server (on page 17).
Drive cable options
Use these drive cable options to install an HP Host Bus Adapter or an HP Smart Array Controller board
option.
For more information about product features, specifications, options, configurations, and compatibility, see
the product QuickSpecs on the HP website (http://www.hp.com/go/qs).
Mini-SAS cable options
To connect the cable option:
1. Power down the server (on page 17).
2. Remove all power:
a. Disconnect each power cord from the power source.
