Removal and replacement procedures 38
6.

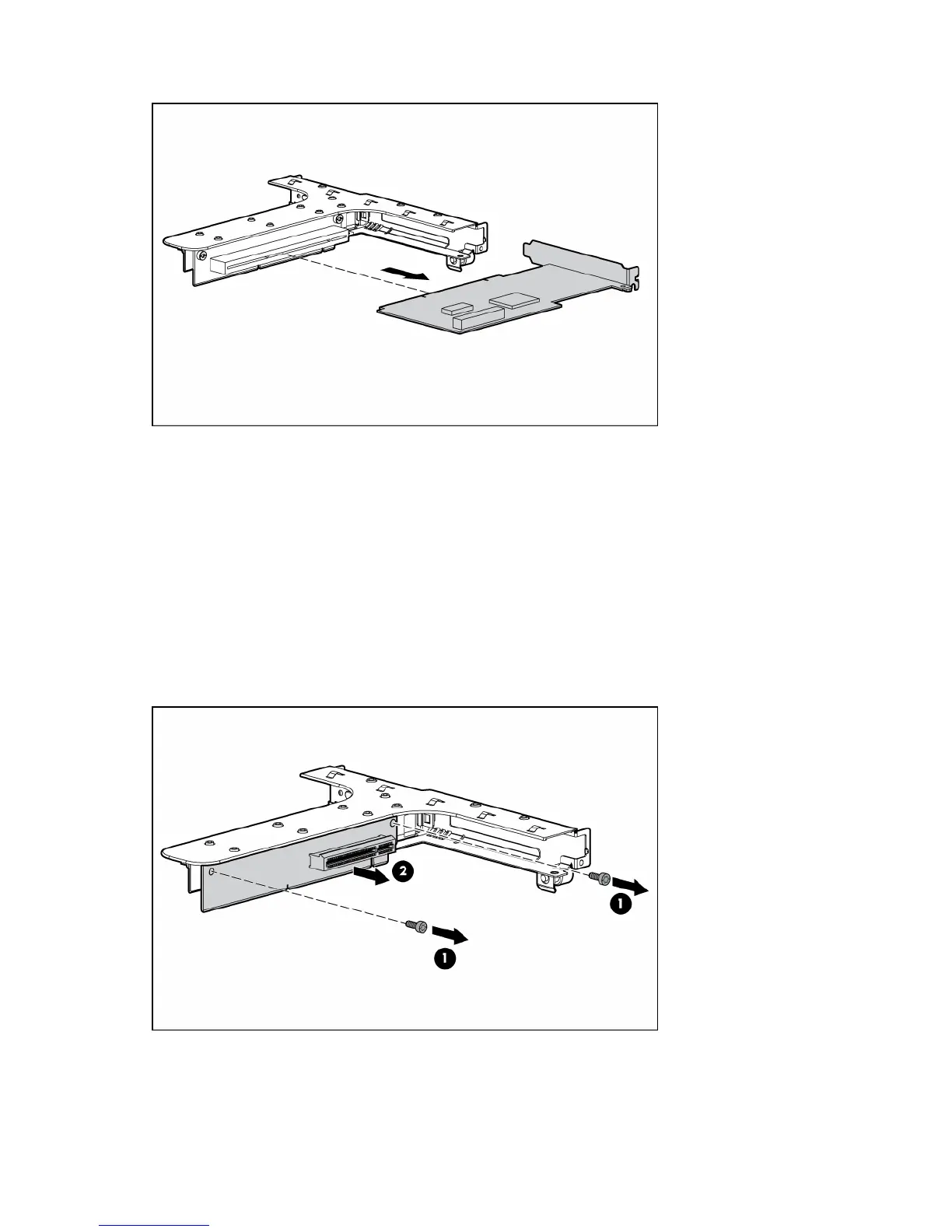

Remove the storage controller.
To replace the component, reverse the removal procedure.
PCI Express riser board
To remove the component:
1. Power down the server (on page 26).
2. Extend the server from the rack (on page 26).
3. Remove the access panel.
4. Remove the PCI riser board assembly ("PCI riser board assembly" on page 36).
5. Remove the expansion board ("Expansion boards" on page 36).
6. Remove the PCI Express riser board.
To replace the component, reverse the removal procedure.
