HP ProLiant DL360 G9 - Front View of HP ProLiant DL360 G9 Server

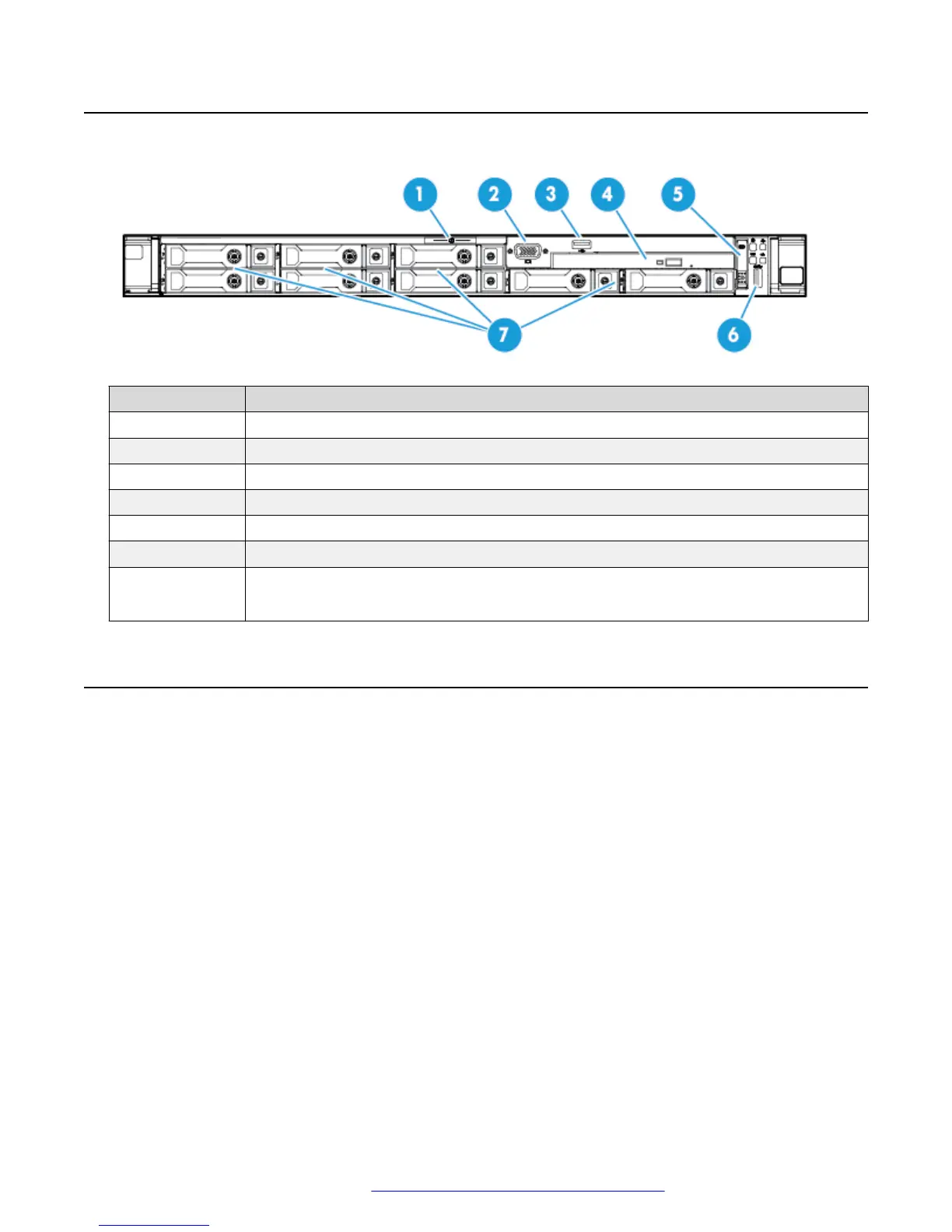

Front view of HP ProLiant DL360 G9 Server
No. Description
1 Serial label pull tab
2 Front video connector
3 USB 2.0 connector
4 Optical drive
5 Systems Insight Display (Not used in Avaya configurations)
6 USB 3.0 connector
7 Hard Drive bays*
* The HDDs read starting with top left, then bottom left, and continues to the right.
Front panel LEDs of HP ProLiant DL360 G9 Server
Use these LEDs to identify hardware status and problems.
