QuickSpecs
HPE ProLiant DL360 Generation9 (Gen9)
Overview
Page 2

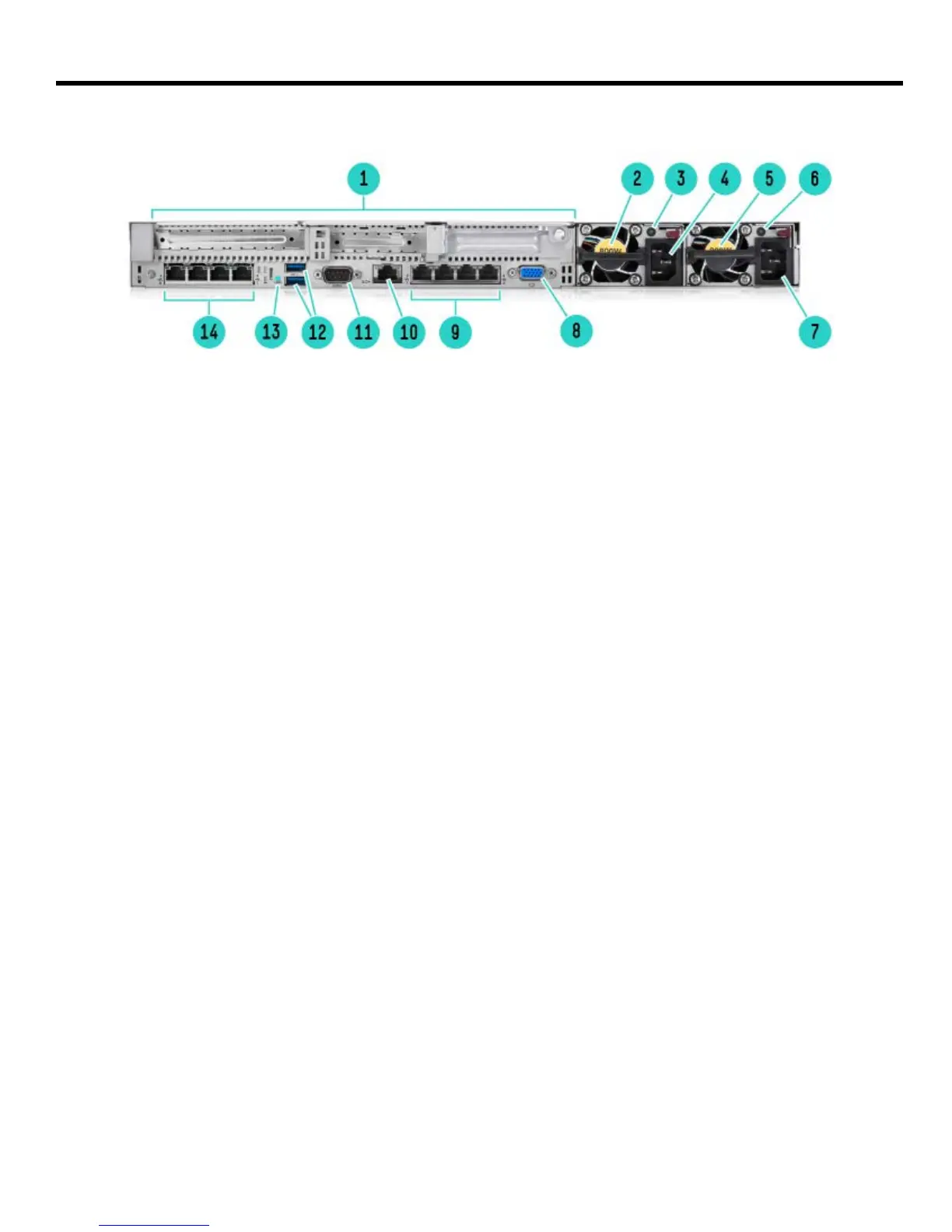

Rear View
1.
PCIe 3.0 Slots 1-3
NOTE:
Slot 1 and 2 Riser Ships Standard, Slot 3 Optional one
FH/
¾ length and two Low Profile slots available (shown) or
two FH/
¾ length slots.
2.
HPE Flexible Slot Power Supply Bay 2
3.
Power Supply 2 Status LED
4.
Power Supply 2 C13 Connection
5.
HPE Flexible Slot Power Supply Bay 1
6.
Power Supply 1 Status LED
7.
Power Supply 1 C13 Connection
8.
Video Connector
9.
Embedded 4x1GbE Network Adapter
10.
Dedicated iLO 4 connector
11.
Serial Port Connector (Optional)
12.
USB 3.0 Connectors (2)
13.
Unit Identification LED
14.
FlexibleLOM bay (Optional)
NOTE:
Shown: 4x1Gbe.
