HPE ProLiant DL360 Generation9 (Gen9)
General Memory Population Rules and Guidelines:

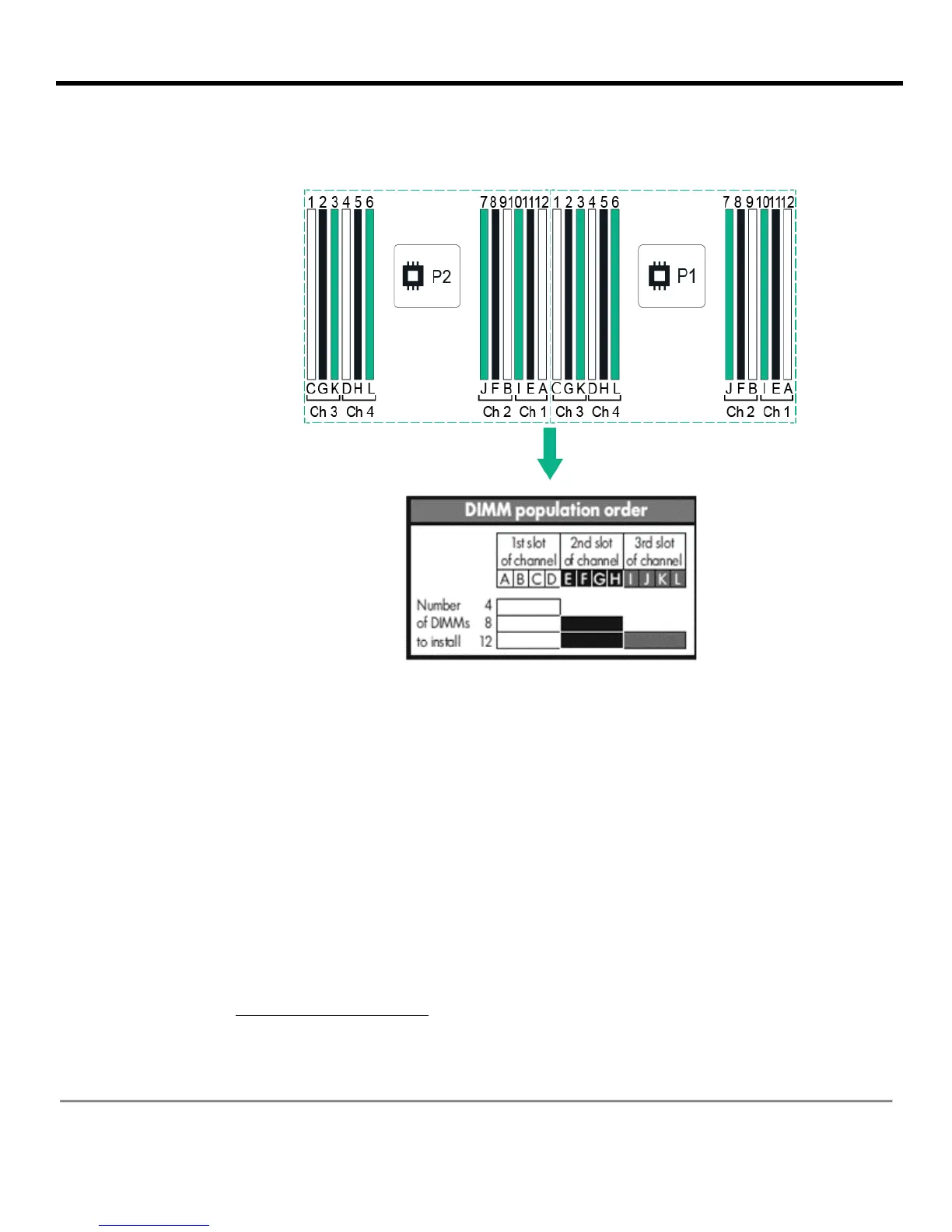

White DIMM slots denote the first slot of a channel. For 1 DPC (DIMM per channel) populate white slots
only.
A minimum of one DIMM is required per server.
Install DIMMs only if the corresponding processor is installed.
When two processors are installed, balance the DIMMs across the two processors
Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel. Heaviest
load (DIMM with most ranks) within a channel goes furthest from the processor.
Do not mix RDIMMs or LRDIMMs.
DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed
The maximum memory speed is a function of the memory type, memory configuration, and processor
model.
The maximum memory capacity is a function of the memory type and number of installed processors
HPE memory from previous generation servers is not compatible with the DL360 Gen9 Server.
For memory population rules and additional memory guidelines, please see the DL360 Gen9 user guide
http://www.hp.com/support
There are four (4) Memory channels per processor; eight (8) channels per 2 processor server.
There are three (3) DIMM slots for each memory channel; twenty four (24) total slots for 2 processor
server.
