QuickSpecs
HPE ProLiant DL360 Generation9 (Gen9)
Overview
Page 3

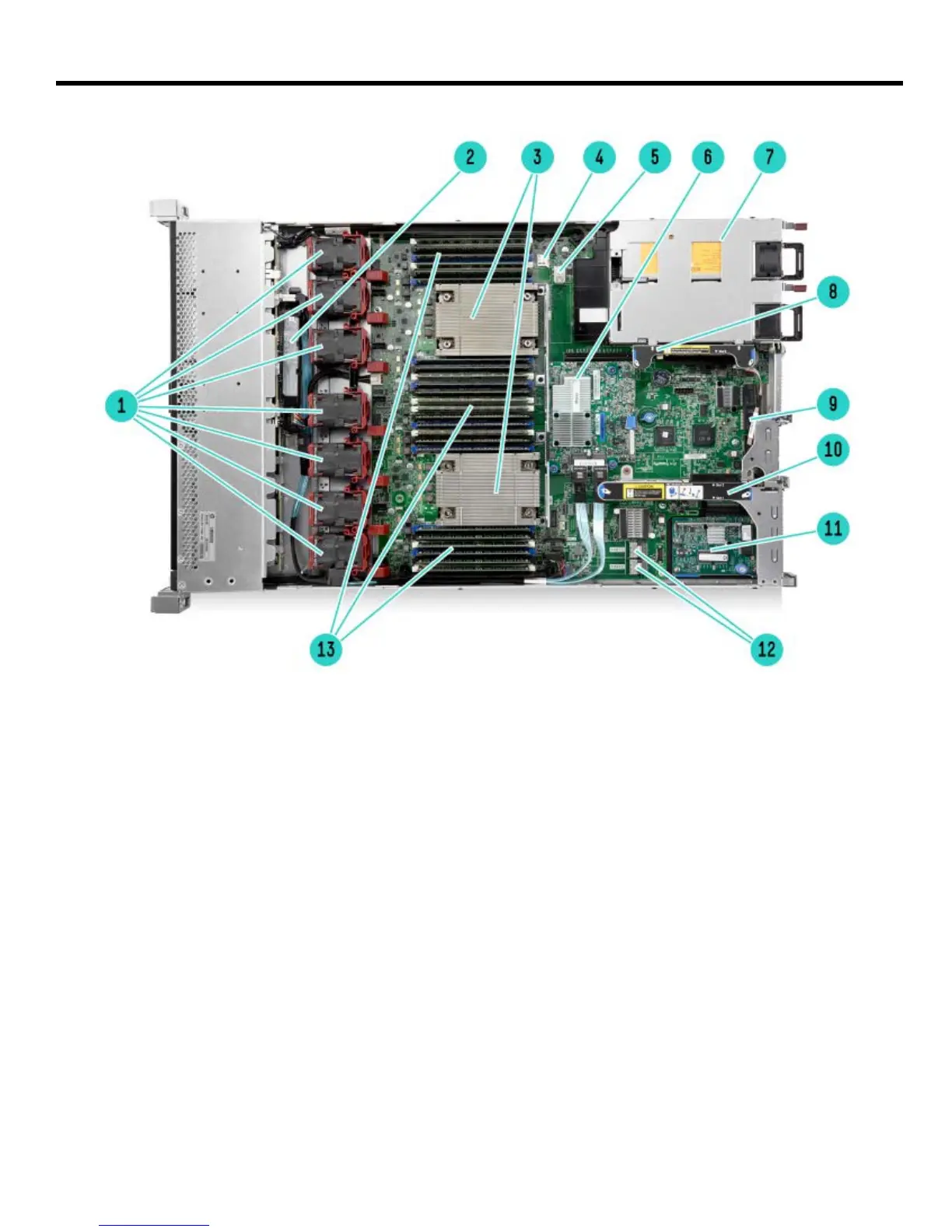

Internal View
1.
5 Standard Fans Ship for 1P and 7 Standard Fans Ship for 2P
NOTE:
High Performance Fans also available as an option.
2.
HPE Smart Storage Battery (Optional)
3.
2 Processors with HPE Smart Socket Guide
4.
MicroSD card slot
NOTE:
Optional Dual Micro-SD option.
5.
Dual Internal USB 3.0 connector
6.
HPE Flexible Smart Array or Smart HBA (Optional)
NOTE: H240ar shown and P440ar available.
7.
2 HPE Flexible Slot Power supplies
NOTE: Optional Micro UPS option
8.
Secondary PCIe 3.0 riser for PCIe slot 3 (requires CPU
2)
9.
Embedded 4x1Gbe NIC
10.
Primary PCIe 3.0 riser for PCIe slots 1 & 2
11.
FlexibleLOM Bay (Optional)
12.
Embedded SATA Controller ports
13.
DDR4 DIMM slots. Shown fully populated in 24 slots (12 per
processor)

HP ProLiant DL360 Generation9 Specifications

General

Processor Sockets	2
Memory Slots	24 DIMM slots
Network Controller	HP Ethernet 1Gb 4-port 331i Adapter
Form Factor	1U Rack
Processor	Intel Xeon E5-2600 v3/v4
Storage	Up to 8 SFF or 4 LFF drives
RAID Support	HP Dynamic Smart Array B140i, HP Smart Array P440ar/2GB FBWC
Network	4 x 1Gb Ethernet ports
Expansion Slots	3 PCIe 3.0 slots
Management	HP iLO (Integrated Lights-Out)
Power Supply	Hot-plug 500W, 800W
