Drive backplane power connector
DIMM slots

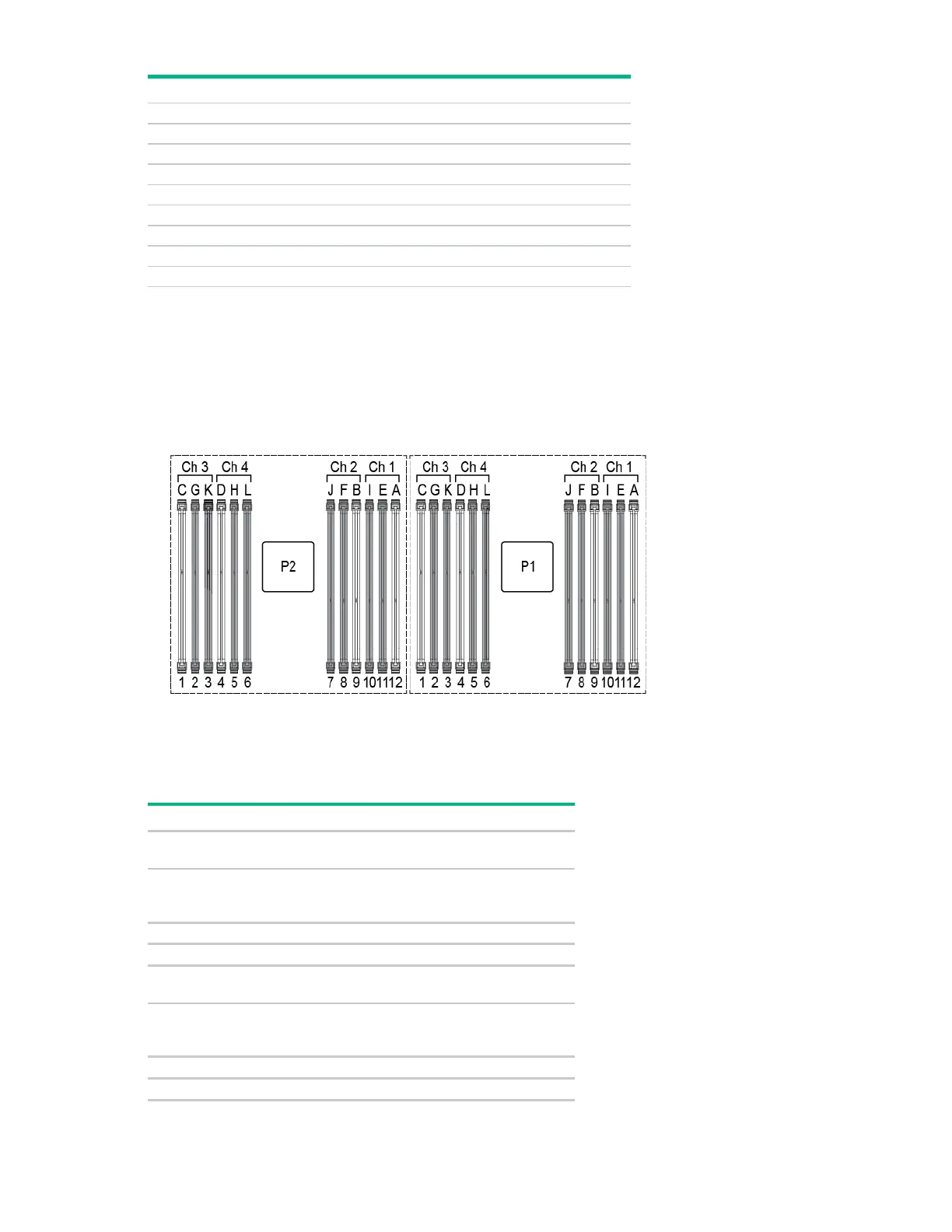

DIMM slots are numbered sequentially (1 through 12) for each processor. The supported AMP modes use
the letter assignments for population guidelines.
System maintenance switch
Position Default Function
S1
Off = HPE iLO security is enabled.
On = HPE iLO security is disabled.
S2
Off = System configuration can be
changed.
On = System configuration is locked.
S5
Off = Power-on password is enabled.
On = Power-on password is disabled.
S6
On = ROM reads system
configuration as invalid.
