HP ProLiant DL380 G6 - Rear Panel Leds and Buttons; Non-Hot-Plug PCI Riser Board Slot Definitions

Component identification 12
10
Video connector
11
NIC 1 connector
12
NIC 2 connector
13
Mouse connector
14
Keyboard connector
15
Serial connector
16
iLO 2 connector
17
NIC 3 connector
18
NIC 4 connector

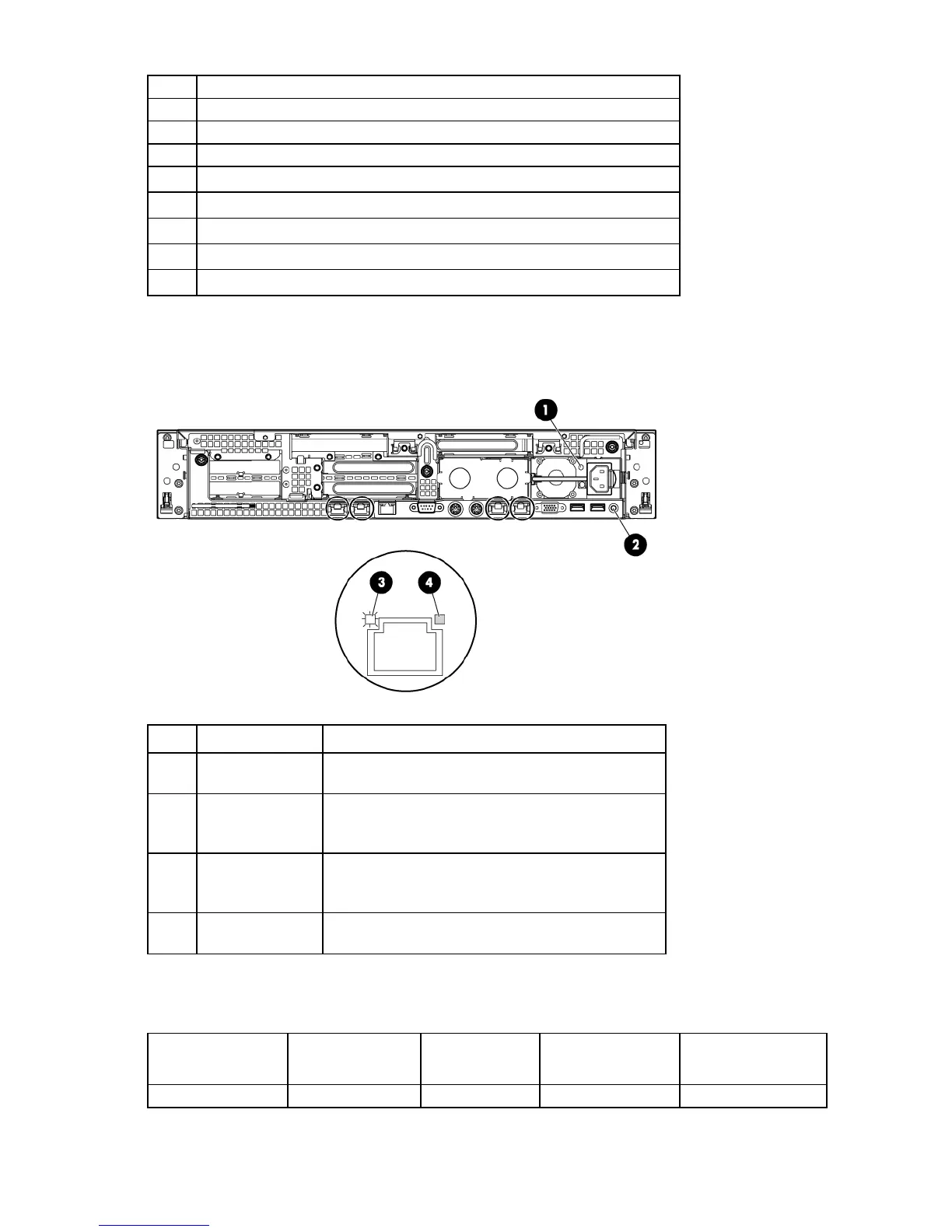

Rear panel LEDs and buttons
Item Description Status
1
Power supply LED Green = Normal
Off = System is off or power supply has failed
2
UID LED/button Blue = Activated
Flashing blue = System being managed remotely
Off = Deactivated
3
NIC/iLO 2 activity
LED
Green = Network activity
Flashing green = Network activity
Off = No network activity
4
NIC/iLO 2 link LED Green = Network link
Off = No network link
Non-hot-plug PCI riser board slot definitions
Primary
(slot - form factor)
Secondary
(slot - form factor)
PCIe riser
slot description
PCIe x16 riser
slot description
PCIe/PCI-X riser
slot description
1 - FL/FH
4 - FL/FH PCIe x16 (8,4,1) PCIe x16 (16,8,4,1) PCI-X 64-bit/133-MHz
