HP ProLiant DL380 Generation9

QuickSpecs
HP ProLiant DL380 Generation9 (Gen9)
Memory
c04375627 – DA – 15034 North America — Version 7 — February 17, 2015
Page 40
Memory Subsystem
Architecture
Each Intel® Xeon® E5-2600v3 family processor socket contains four memory channels per installed processor with
three DIMMs per channel for a total of twelve (12) DIMMs or a grand total of twenty-four (24) DIMMs for the server.
Memory Population
guidelines

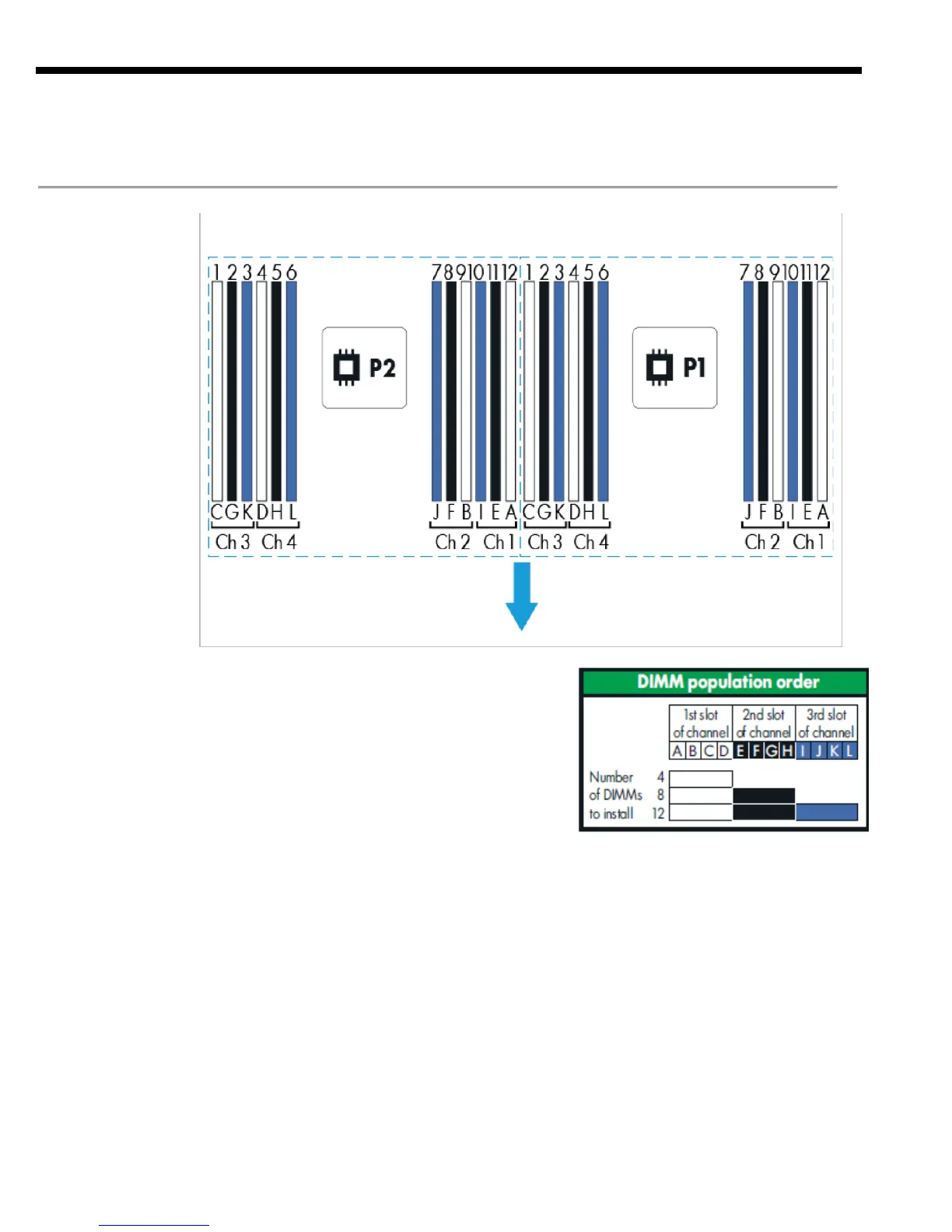

General Memory Population Rules and Guidelines:
.
White DIMM slots denote the first slot of a channel. For 1 DPC (DIMM per channel) populate white slots only.
.
A minimum of one DIMM is required per server.
.
Install DIMMs only if the corresponding processor is installed.
.
If only one processor is installed in a two processor system, only half of the DIMM slots are available.
.
To maximize performance, it is recommended to balance the total memory capacity between all installed
processors and to load the channels similarly whenever possible.
.
When two processors are installed, balance the DIMMs across the two processors.
.
Populate DIMMs from heaviest load (quad-rank) to lightest load (single-rank) within a channel. Heaviest load
(DIMM with most ranks) within a channel goes furthest from the processor.
.
Do not mix RDIMMs or LRDIMMs.
.
LRDIMMs are supported up to 3 DIMMs per channel.
.
DIMMs of different speeds may be mixed in any order; the server will select a common optimal speed.
.
The maximum memory speed is a function of the memory type, memory configuration, and processor model.
.
The maximum memory capacity is a function of the memory type and number of installed processors.
