Component identification 72
Item Description Status
4
NIC activity LED Green = Network activity
Flashing green = Network activity
Off = No network activity
iLO 2 link LED* Green = Network link
Off = No network link
5
NIC link LED Green = Network link
Off = No network link
Flashing green = Network activity
Off = No network activity
* iLO 2 LED positions are reversed from the embedded NIC LEDs

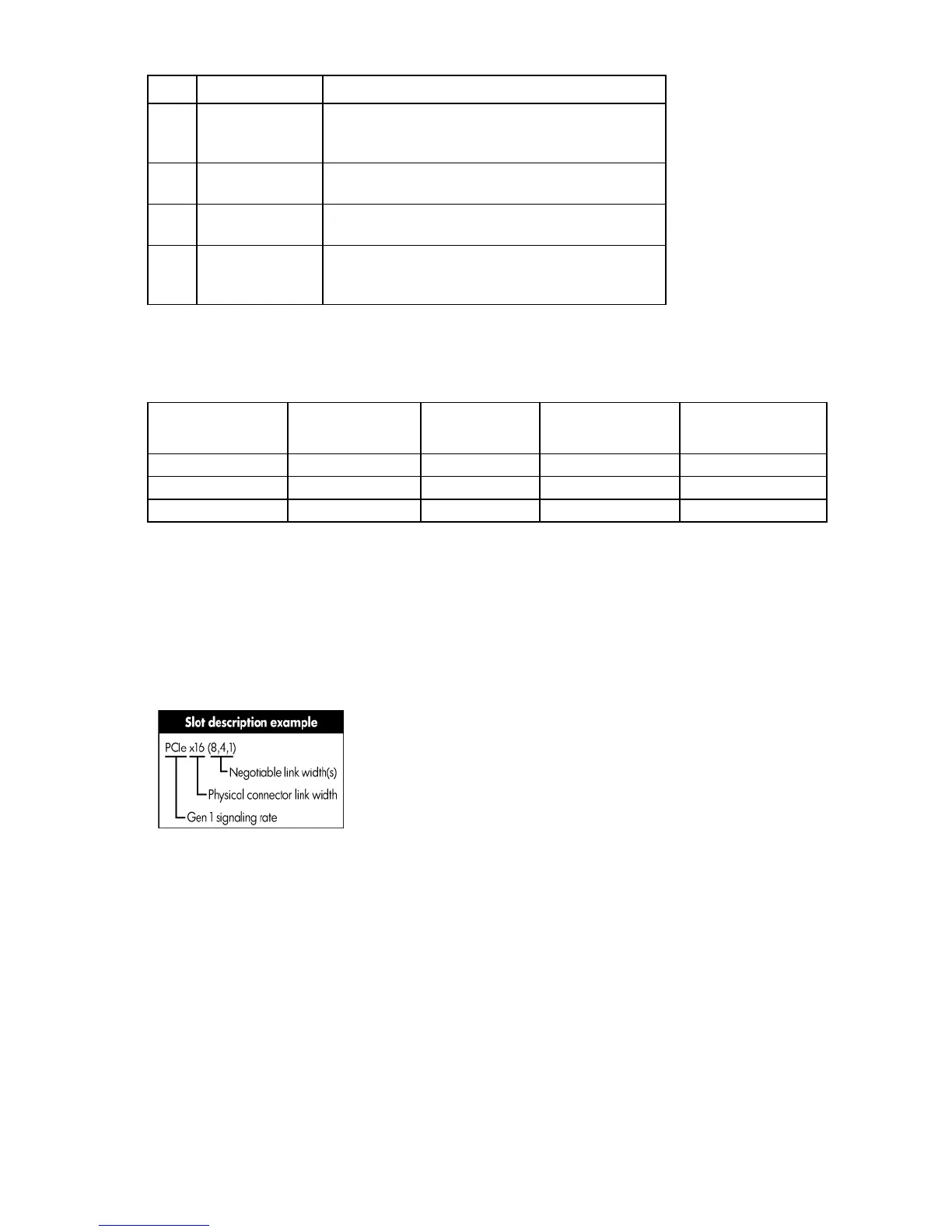

Non-hot-plug PCI riser board slot definitions
Primary
(slot - form factor)
Secondary
(slot - form factor)
PCIe riser
slot description
PCIe x16 riser
slot description
PCIe/PCI-X riser
slot description
1 - FL/FH
4 - FL/FH PCIe x16 (8,4,1) PCIe x16 (16,8,4,1) PCI-X 64bit/133MHz
2 - HL/FH
5 - LP PCIe x8 (4,1) — PCIe x16 (8,4,1)
3 - HL/FH
6 - LP PCIe x8 (4,1) — PCIe x8 (4,1)
Notes:
• "Primary" denotes the risers are installed in the primary riser connector.
• "Secondary" denotes the risers are installed in the secondary riser connector.
• FL/FH denotes full-length, full-height. HL/FH denotes half-length, full-height. LP denotes low profile.
• The PCIe x16 riser supports a maximum power of 225W with an HP power cable. This cable must be
used for PCIe card wattages greater than 75W.
