HP ProLiant DL580 G7 - Rear Panel Components and LEDs

Component identification 10

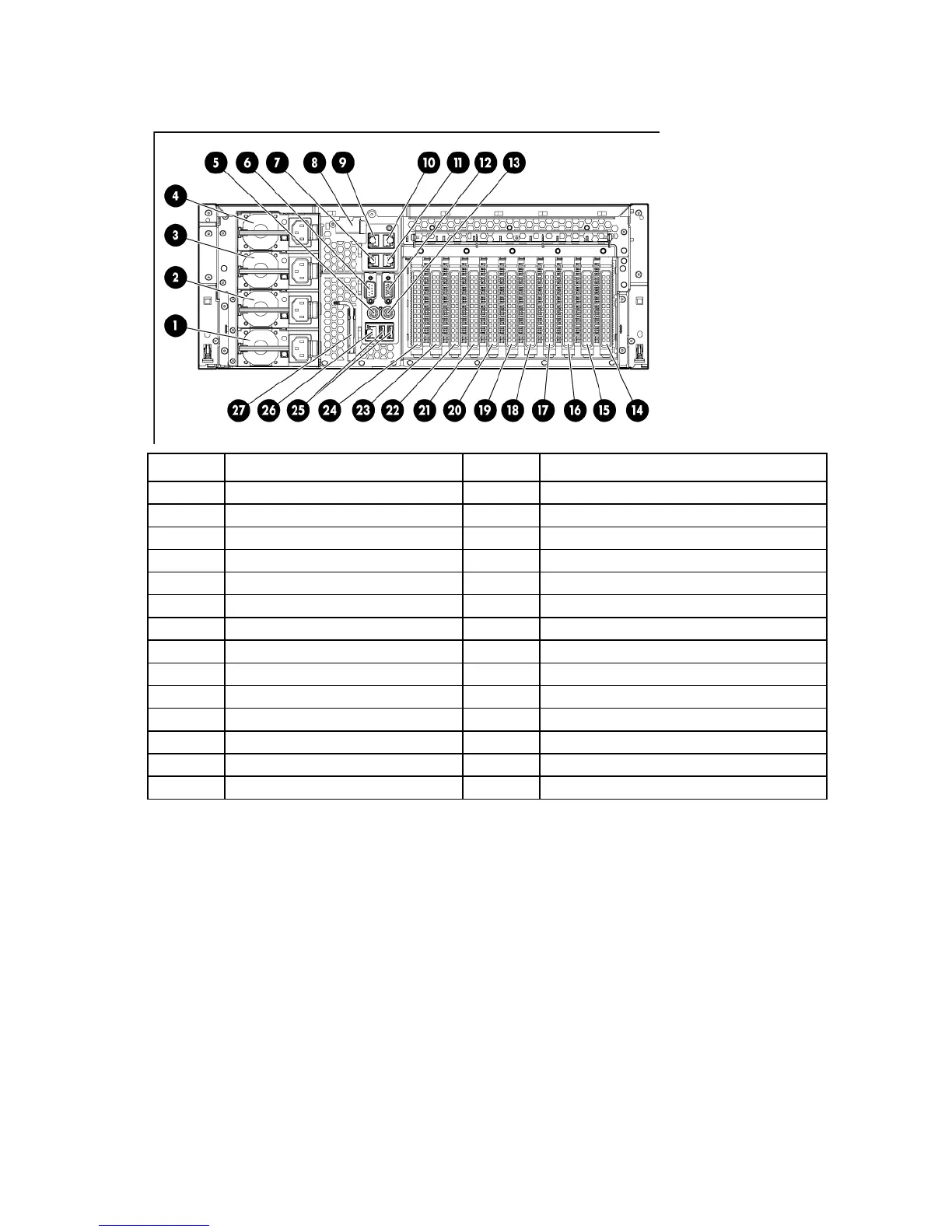

Rear panel components
Item Description Item Description
1
Power supply bay 4 (optional) 15 Expansion slot 2 (optional)
2
Power supply bay 3 (optional) 16 Expansion slot 3 (optional)
3
Power supply bay 2
17
Expansion slot 4 (optional)
4
Power supply bay 1 18 Expansion slot 5 (optional)
5
Mouse connector 19 Expansion slot 6 (optional)
6
Serial connector 20 PCIe2 x8 expansion slot 7
7
NIC 2 connector 21 PCIe2 x8 expansion slot 8
8
10Gb NIC adapter blank 22 PCIe2 x16 expansion slot 9
9
NIC 4 connector 23 PCIe2 x8 expansion slot 10
10
NIC 3 connector 24 PCIe2 x16 expansion slot 11
11
NIC 1 connector 25 USB connectors (2)
12
Video connector 26 iLO 3 connector
13
Keyboard connector 27 T-10/T-15 Torx screwdriver
14
Expansion slot 1 (optional) — —
For optional configuration of slots 1–6, see "I/O expansion board components (on page 16)."
