Hardware options installation 68
6.

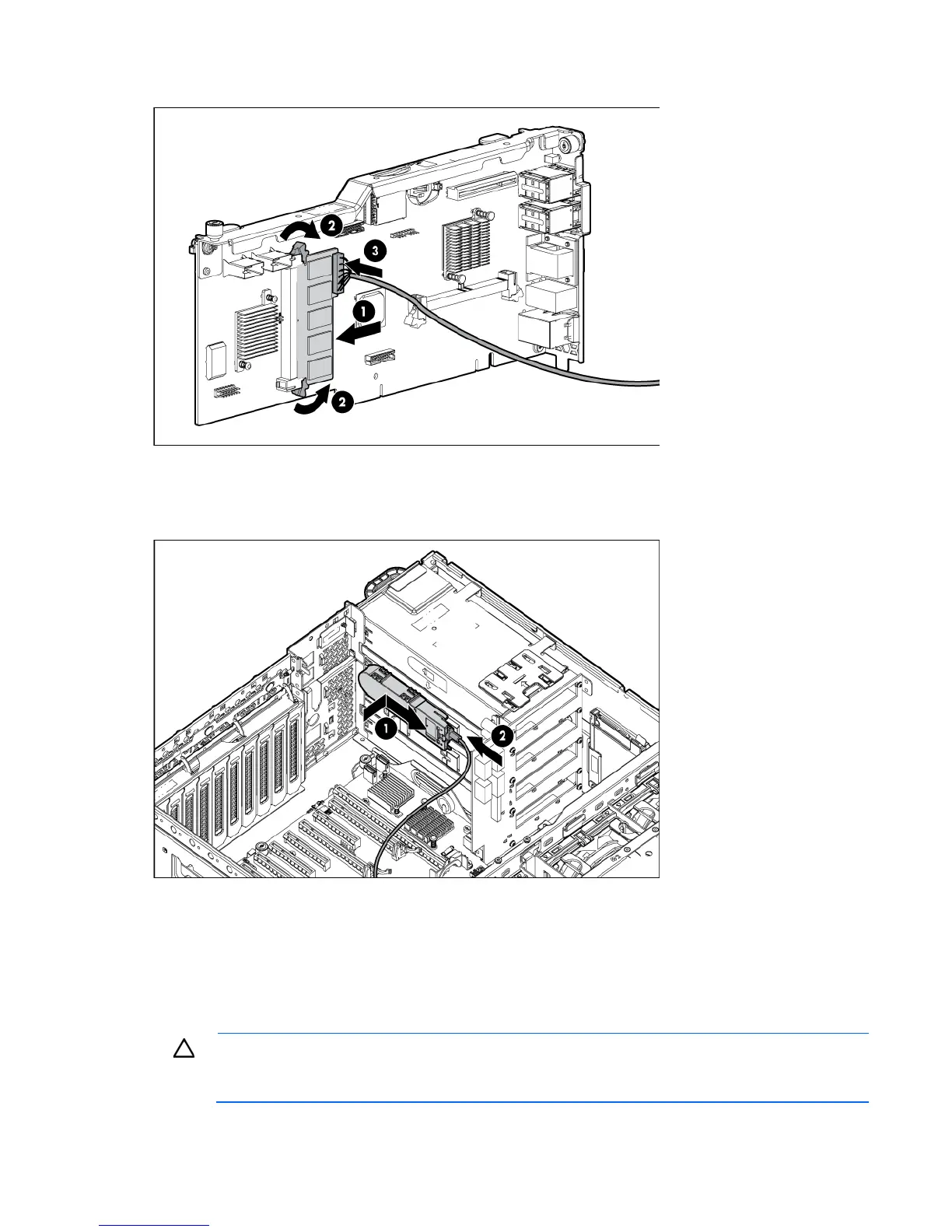

Attach the cable to the cache module.
7. Install the battery.
8. Connect the cable to the battery.
The SPI board is not shown for clarity.
9. Install the access panel.
10. Slide the server back into the rack.
11. Power up the server (on page 25).
FBWC module and capacitor pack option
CAUTION: Do not use this controller with cache modules designed for other controller models,
because the controller can malfunction and you can lose data. Also, do not transfer this cache
module to a different controller module, because you can lose data.
