Component identification 11

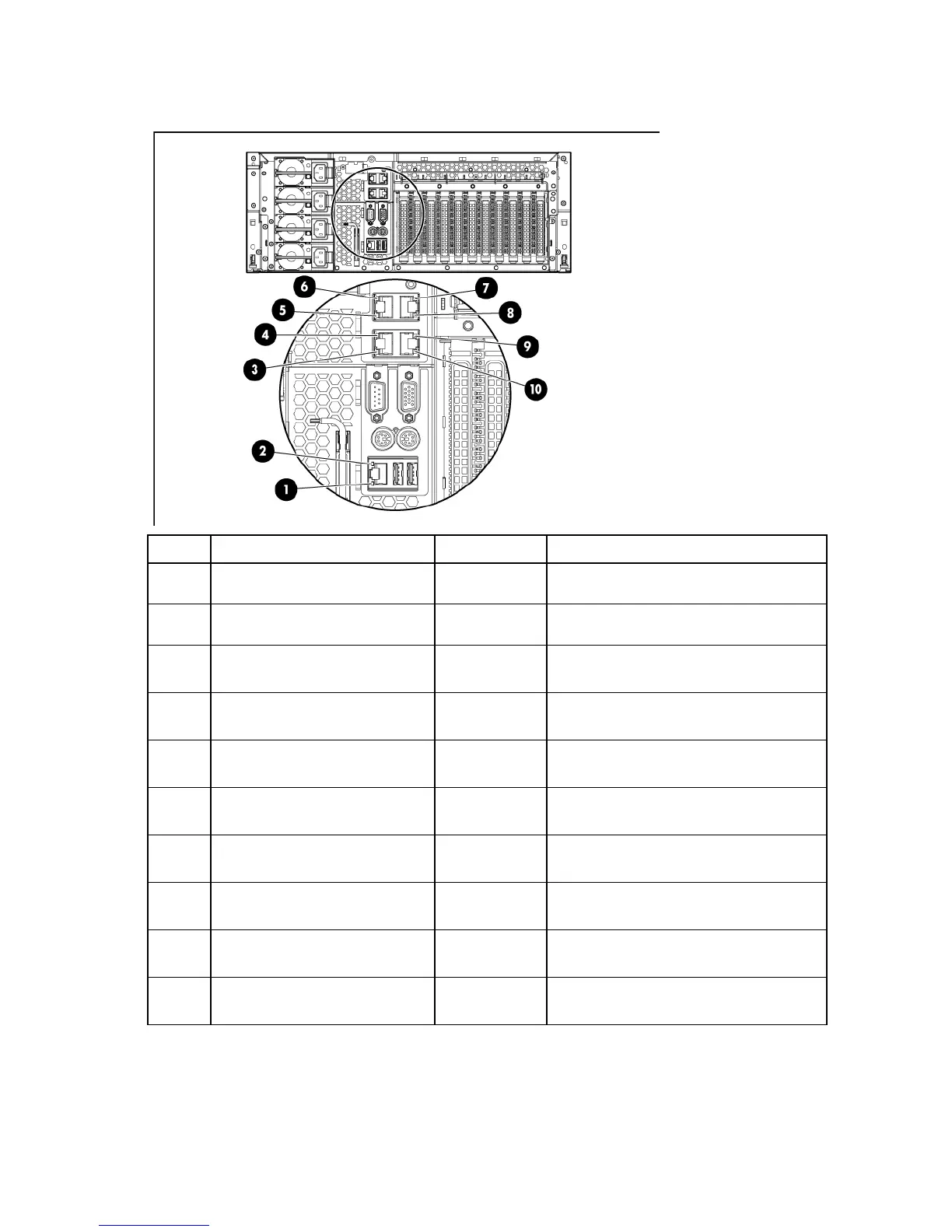

Rear panel LEDs and buttons
Item Description LED color Status
1
iLO 3 NIC Activity LED Green On or flashing—Network activity
Off—No network activity
2
iLO 3 NIC Link LED Green On—Linked to network
Off—Not linked to network
3
NIC 2 Activity LED Green On or flashing—Network activity
Off—No network activity
4
NIC 2 Link LED Green On—Linked to network
Off—Not linked to network
5
NIC 4 Activity LED Green On or flashing—Network activity
Off—No network activity
6
NIC 4 Link LED Green On—Linked to network
Off—Not linked to network
7
NIC 3 Link LED Green On—Linked to network
Off—Not linked to network
8
NIC 3 Activity LED Green On or flashing—Network activity
Off—No network activity
9
NIC 1 Link LED Green On—Linked to network
Off—Not linked to network
10
NIC 1 Activity LED Green On or flashing—Network activity
Off—No network activity
