Server component identification 22
• Zone 1 contains four fans (three, plus one redundant) to control the temperature in the processor
module area.
• Zone 2 contains two fans (one, plus one redundant) to control the temperature in the hard drive bay
area.
This fan configuration allows the server to continue operating in non-redundant mode if a single fan fails
in either zone. If the system detects two fan failures in the same zone, the server shuts down to avoid
thermal damage.

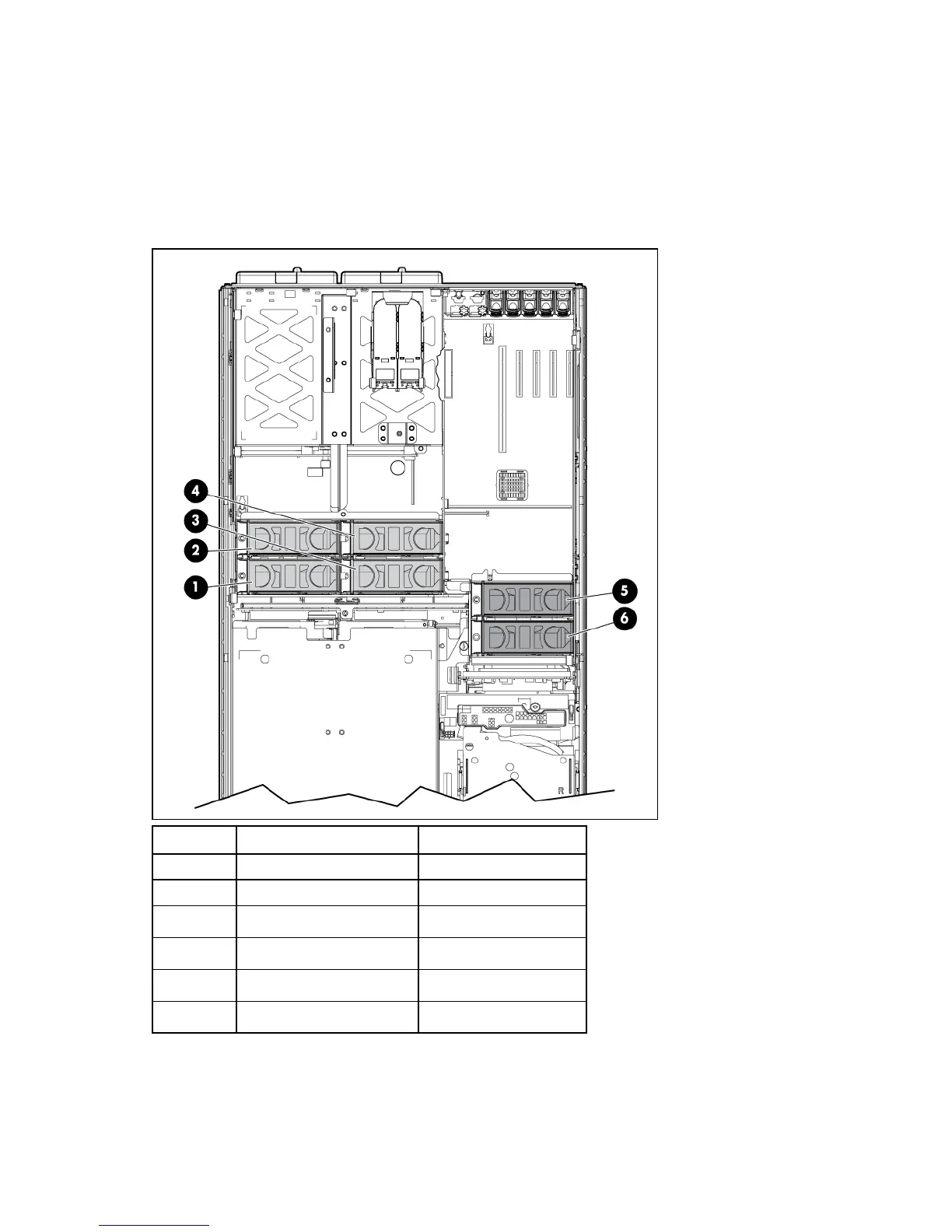

Item Description Zone
1 Fan 1 1
2 Fan 2 1
3 Fan 3 1
4 Fan 4 1
5 Fan 5 2
6 Fan 6 2
