Expansion board options 65
4.

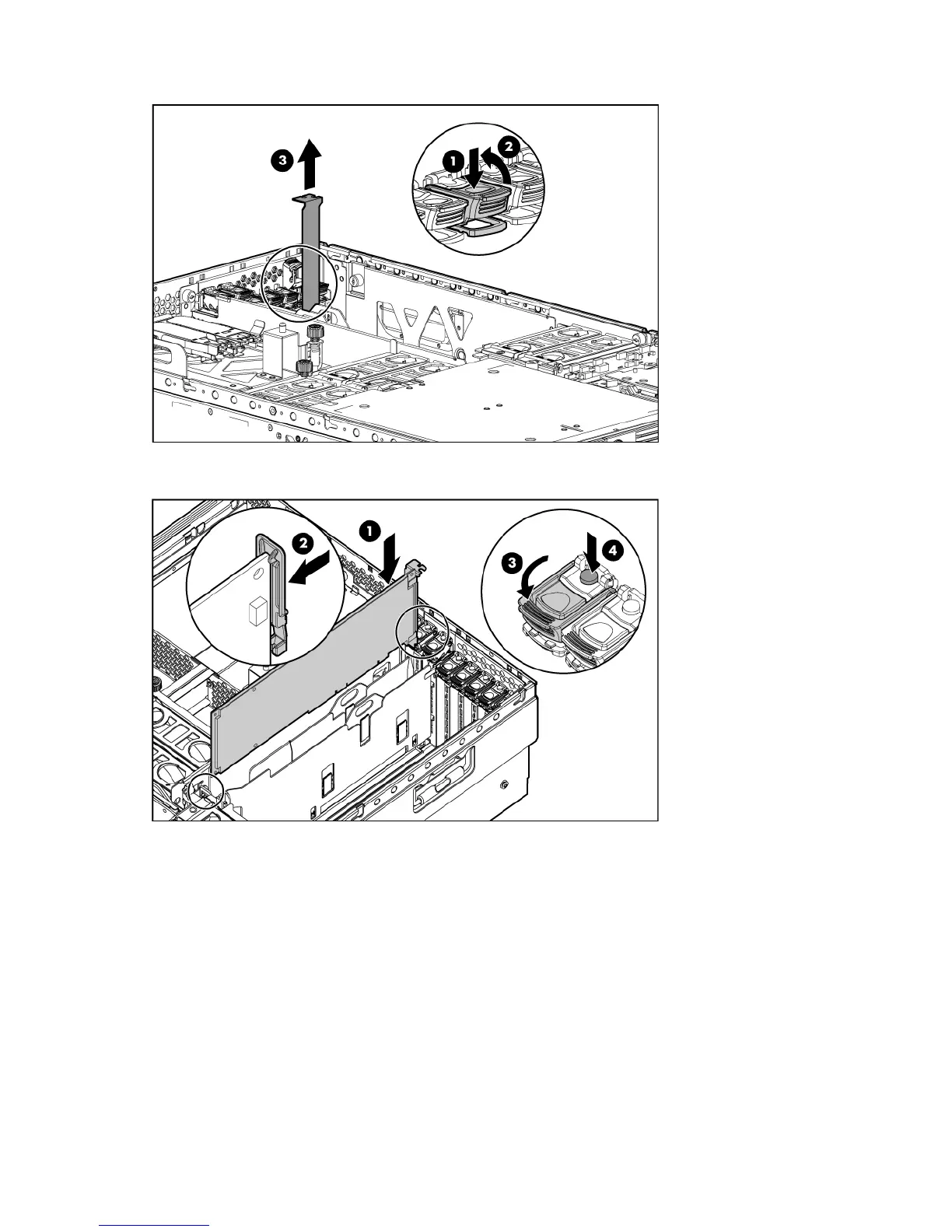

Open the latch, and remove the expansion slot cover.
5. Unlock the retaining clip (for full-length expansion boards), and install the PCI-X Hot Plug expansion
board.
6. Lock the retaining clip (for full-length expansion boards), and close the latch.
7. Connect any required internal or external cables to the expansion board.
8. Press the PCI-X Hot Plug button, and wait for the power LED to illuminate green without flashing.
9. Replace the access panel, and resume normal server operations.
Removing a PCI-X Hot Plug expansion board
1. Extend or remove the server from the rack ("Extending the server from the rack" on page 24).
2. Remove the access panel ("Removing the access panel" on page 26).
3. Press the PCI-X Hot Plug button to remove power from the slot. When the green power LED on the
slot stops flashing, power has been removed from the slot.
