Hardware options installation 50
4.

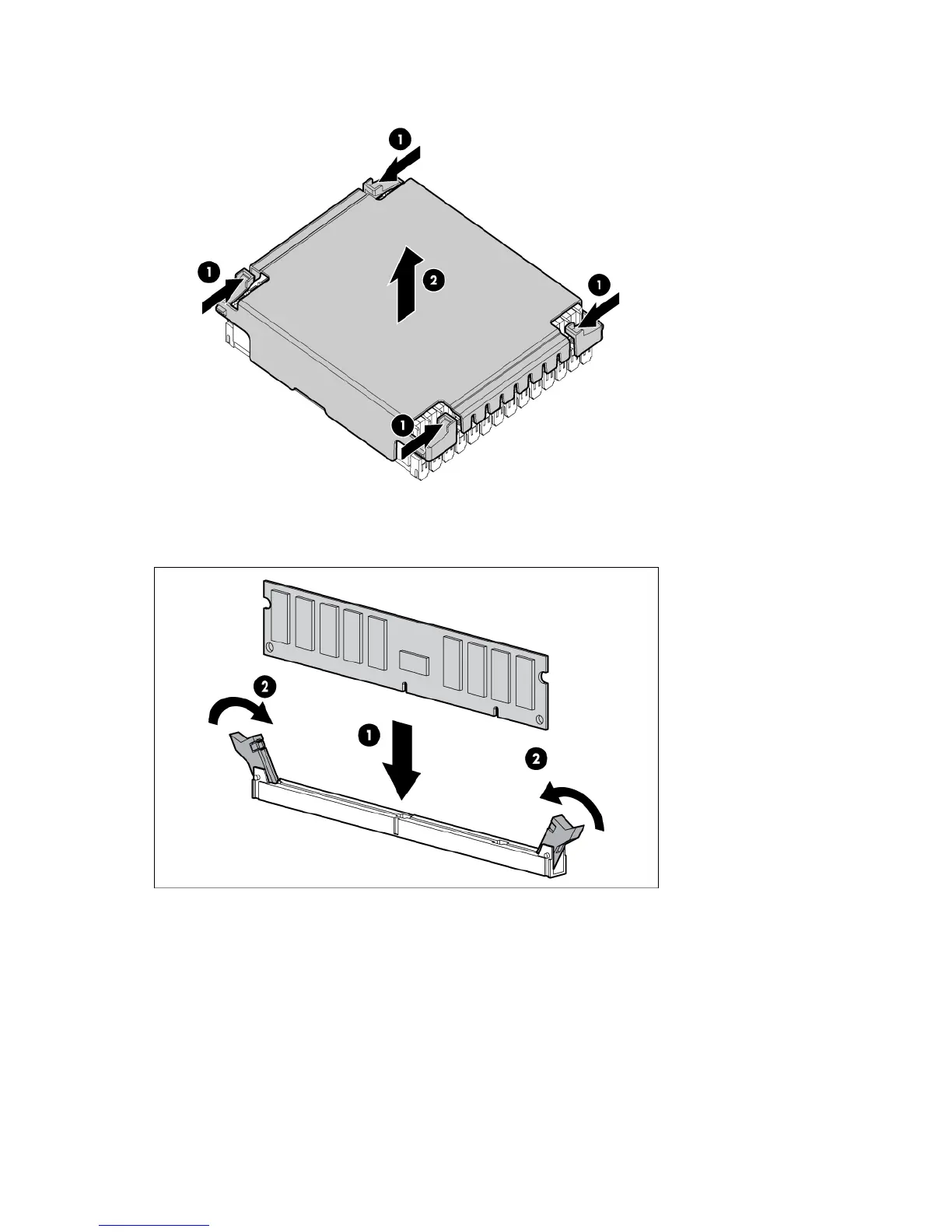

Remove the DIMM baffle.
5. Install the DIMMs.
For configuration options, see "Memory configurations (on page 43)."
6. Install the DIMM baffle.
7. Install the processor memory drawer cover.
8. Install the processor memory drawer.
9. Power up the server (on page 25).
Hot-plug hard drive option
When adding hard drives to the server, observe the following general guidelines:
