Systems Insight Display

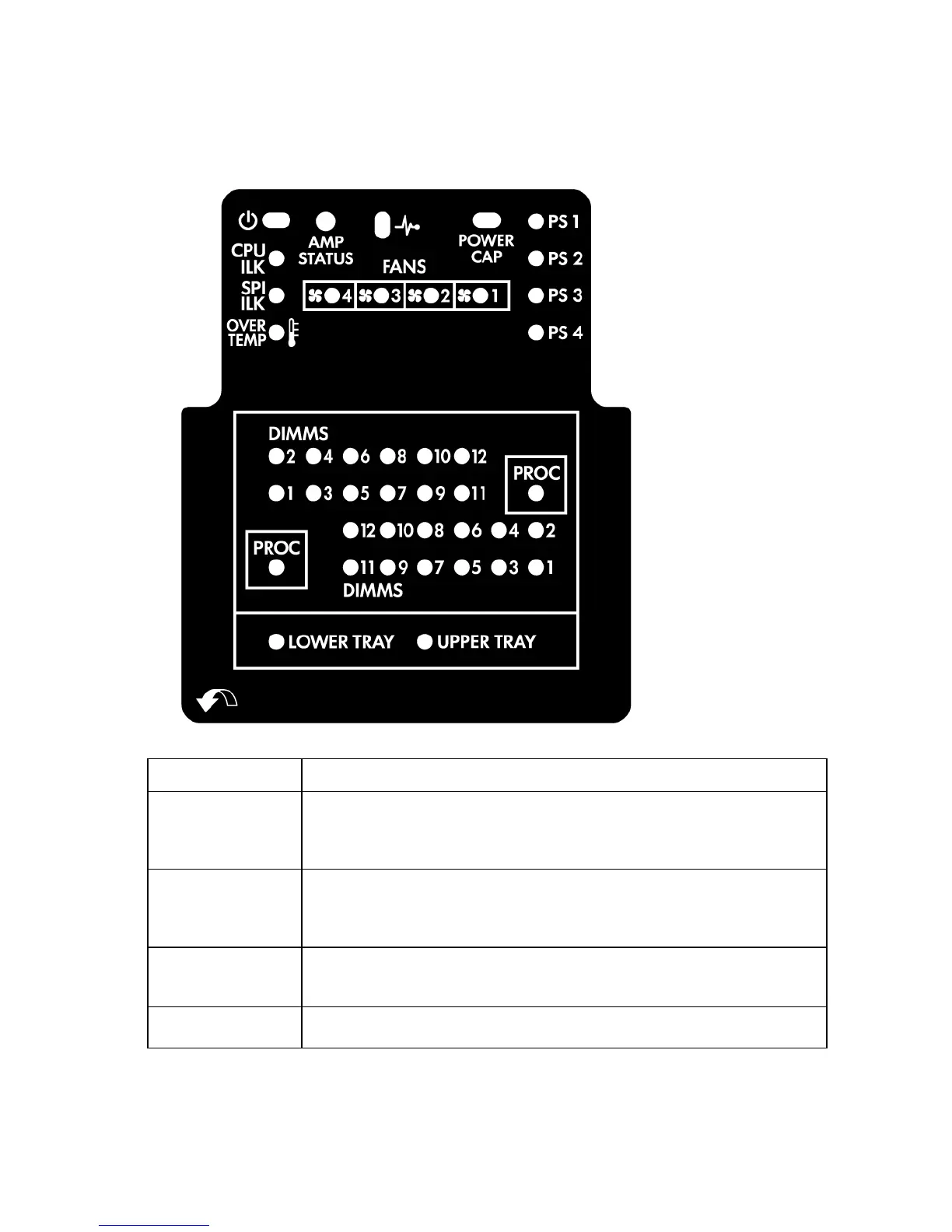

The Systems Insight Display LEDs represent the server and component layout.
LED Description
AMP status
Off—No protection
Green—Protection enabled
Amber—Memory failure occurred
Amber (flashing)—Memory configuration error
Health
Green—Normal (system on)
Amber (flashing)—Internal system health degraded
Red (flashing)—Internal system health critical
Off—Normal (system off)
Power cap
Green—System on or requesting poweron
Amber (flashing)—Poweron denied
Off—Standby
All other LEDs
Off—Normal
Amber—Failed or missing component
