Hardware options installation 65
6.

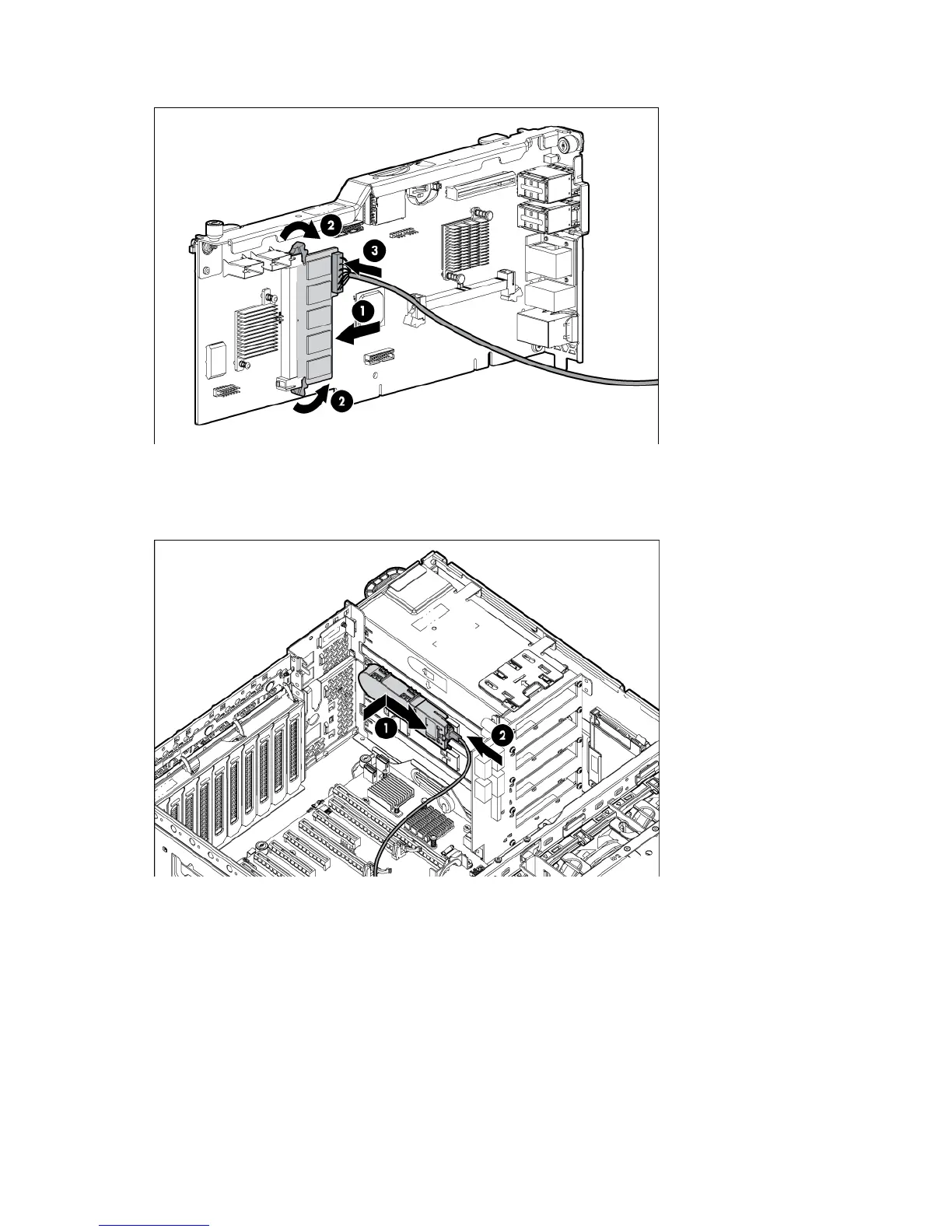

Attach the cable to the cache module.
7. Install the battery.
8. Connect the cable to the battery.
The SPI board is not shown for clarity.
9. Install the access panel (on page 27).
10. Slide the server back into the rack.
11. Power up the server (on page 25).
FBWC module and capacitor pack option
