Component identification 11
Item LED Status
1
NIC/iLO 2 link On = Link
Off = No link
2
NIC/iLO 2 activity Flashing = Activity
Off = No activity

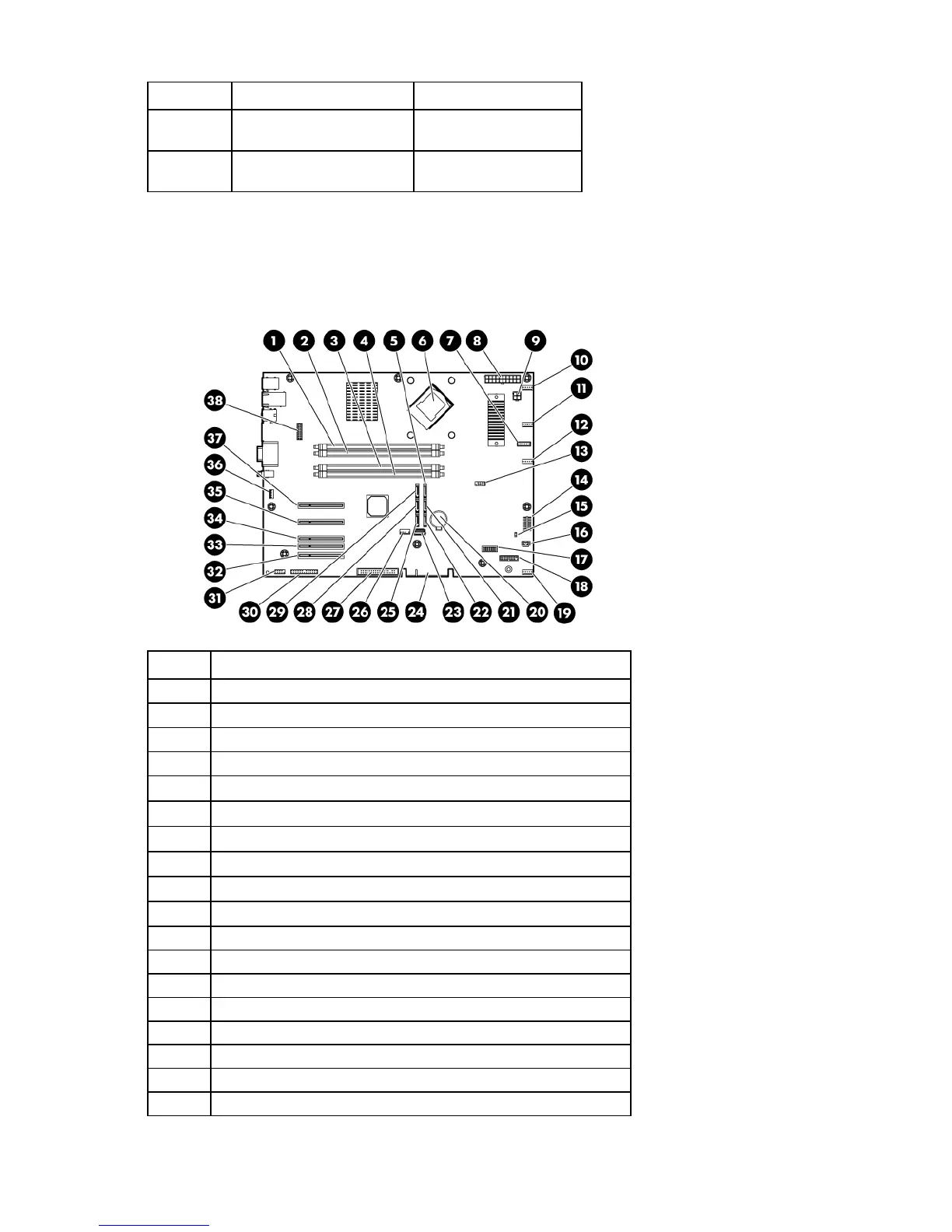

System board components
For this server, some system board slots and connectors are reserved.
Item Description
1
DIMM slot 1 (bank A)
2
DIMM slot 2 (bank B)
3
DIMM slot 3 (bank A)
4
DIMM slot 4 (bank B)
5
SATA connector 2 (hard drive)
6
Processor socket
7
Redundant power supply connector
8
System power connector
9
Processor power connector
10
Processor heatsink fan connector
11
Reserved
12
Reserved
13
Front USB cable connector
14
Front panel LED cable connector
15
NMI jumper
16
Temperature sensor connector
17
System maintenance switch
18
TPM connector
