HP ProLiant ML310 Generation 5p User Manual

Hardware options installation 41
6.

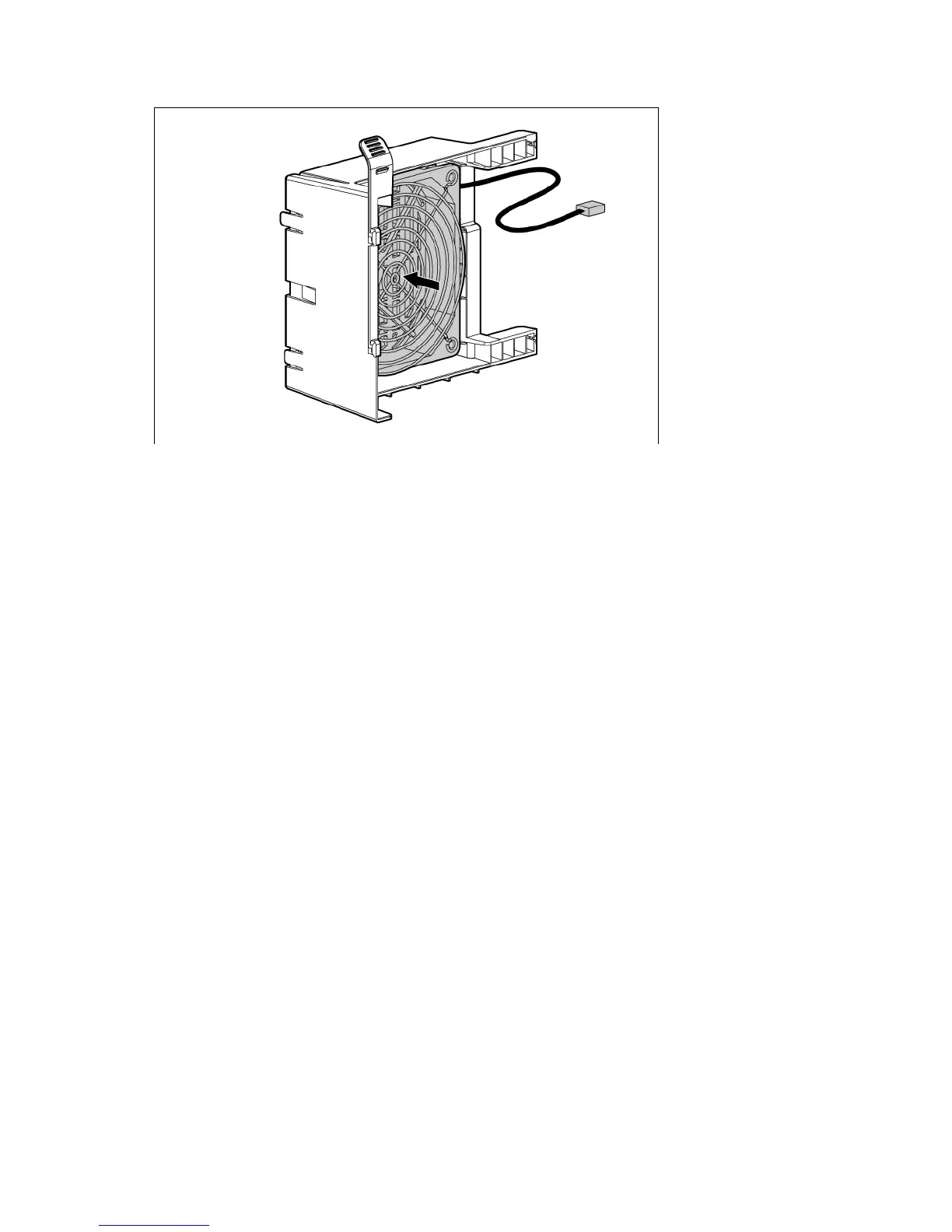

Install the PCI fan.
7. Install the system air baffle and PCI card guide.
8. Connect the PCI fan cable to the PCI fan connector on the system board ("System board components"
on page 11).
9. Install the PCI-X expansion board in slot 1, as needed ("Installing expansion boards" on page 39).
10. Install the access panel (on page 18).
11. Lock the bezel.
12. Power up the server (on page 16).
SAS controller
To install the component:
1. Power down the server (on page 16).
2. Unlock the bezel (on page 17).
3. Remove the access panel (on page 18).
4. Remove the expansion slot cover ("Removing the expansion slot cover" on page 38).
5. Install the SAS controller ("Installing expansion boards" on page 39).
6. Disconnect the SATA cable from the hard drive backplane and the system board.
7. Connect the SAS cable to the hard drive backplane and to the SAS controller ("SAS hard drive cabling"
on page 49).
8. Install the access panel (on page 18).
9. Lock the bezel.
10. Power up the server (on page 16).
Parallel and second serial connector
To install the component:

HP ProLiant ML310 Generation 5p Specifications

General

Processor Sockets	1
Chipset	Intel 3200
Memory Slots	4
Storage	SATA or SAS
Form Factor	Tower
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Processor	Intel Xeon 3000 sequence, Dual-Core Intel Pentium, Intel Celeron
Memory	Maximum 8 GB PC2-6400E DDR2 SDRAM
Drive Bays	4 LFF SATA Hot-Plug or Non-Hot-Plug
Storage Controller	HP Smart Array E200i
RAID Support	RAID 0, 1
Optical Drive	Optional
Network	Embedded NC105i PCI Express Gigabit Server Adapter
