Upgrading or replacing controller options 24
b.

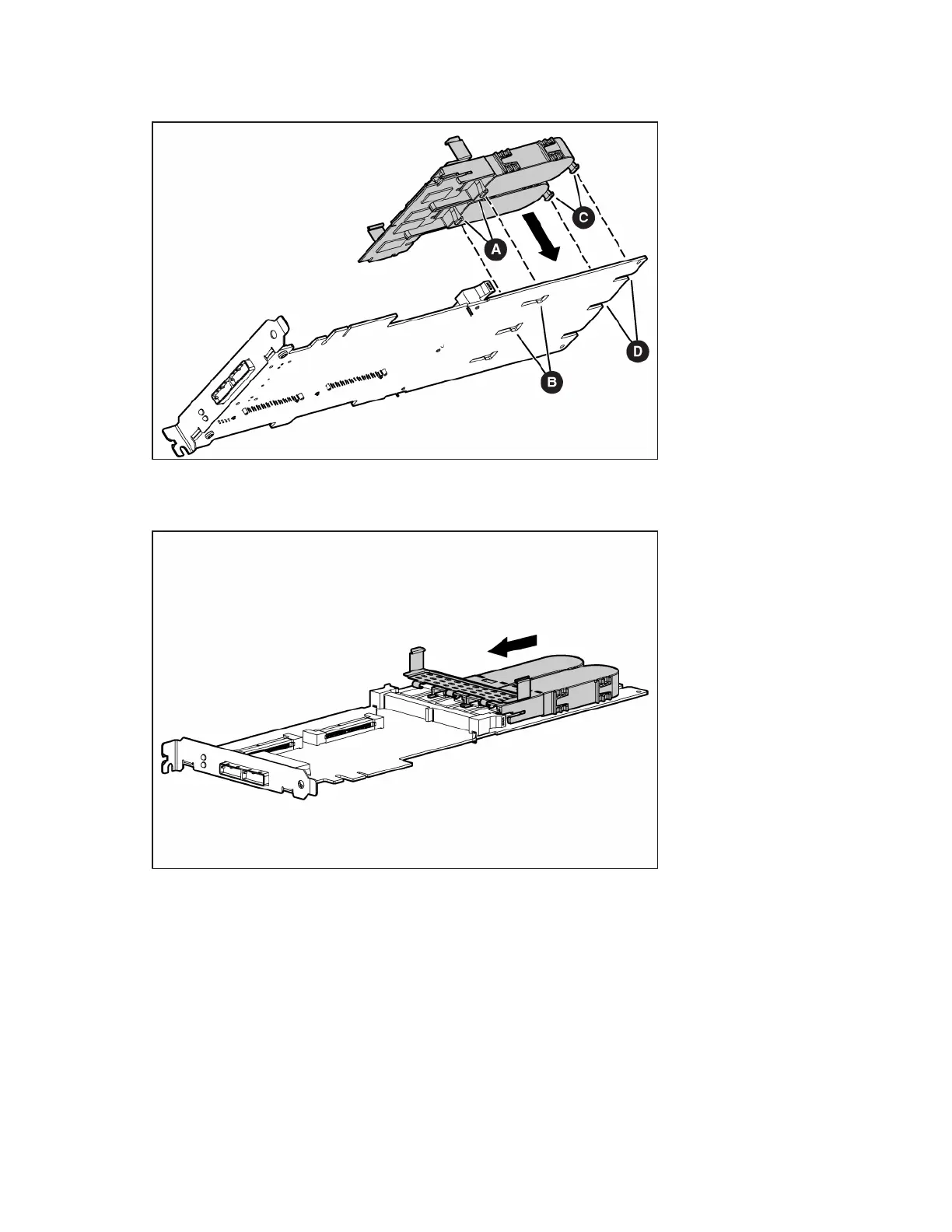

Position the batteries so that the pegs A on the underside of each battery are in the appropriate
holes B on the controller board and pegs C are in slots D.
c. Slide the batteries toward the board bracket until the connectors on the cache module are firmly
seated in the DIMM connector. (When the cache module is correctly seated, the gold contacts on
the cache module are completely hidden within the DIMM connector.)
8. Secure the battery clip to the controller board.
a. Swivel the clip over the cache module (1).
