Upgrading or replacing controller options 23
4.

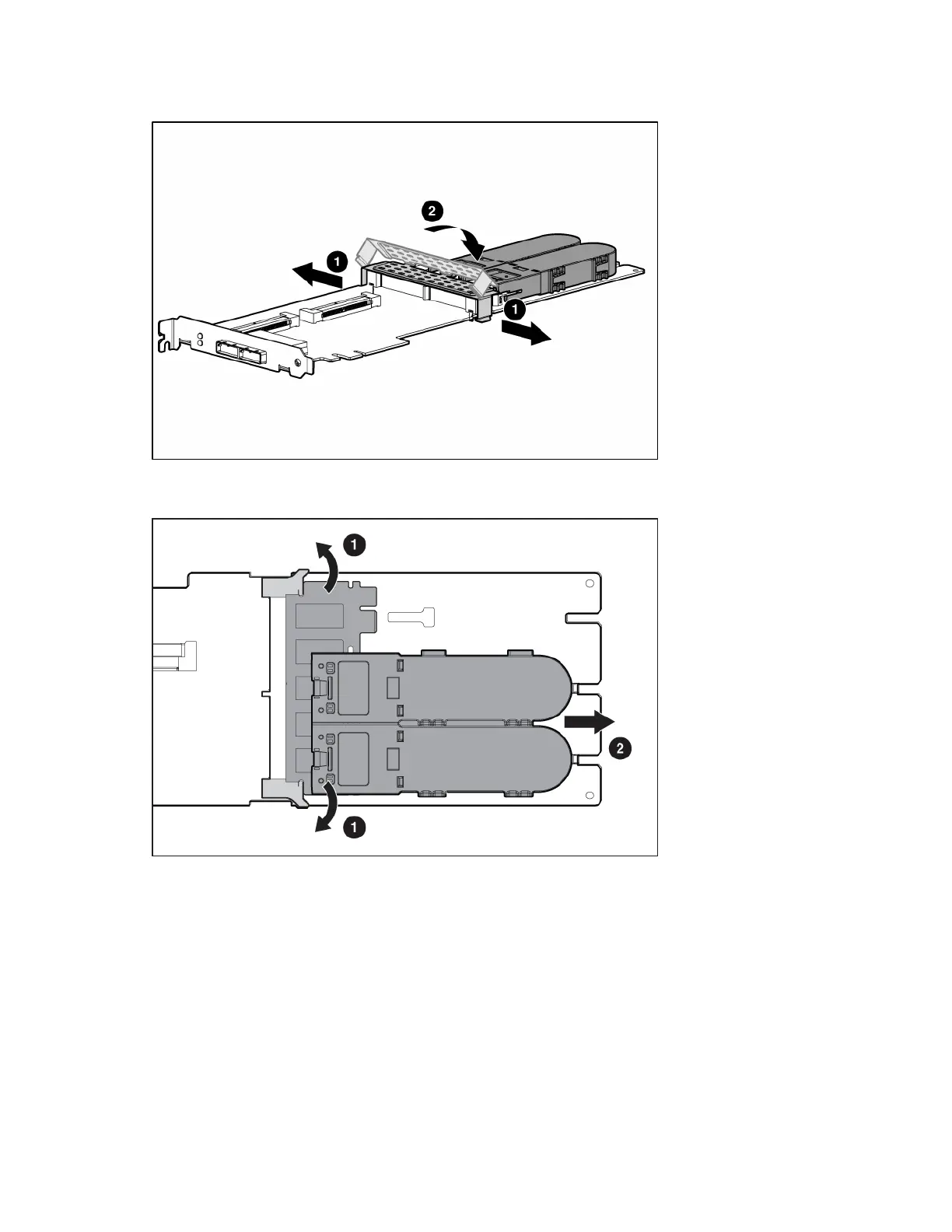

Pull the flanges on the battery clip outward (1), and then swivel the clip 180 degrees so that it rests
on the batteries (2).
5. Swivel the latches on the DIMM connector outward (1).
6. Slide the battery assembly and the cache module off the controller board (2).
The procedure at this point depends on whether you are replacing the controller or the cache
module.
• If you are replacing the controller, go directly to the next step.
• If you are replacing the cache module, pull it out of the battery assembly, install the new cache
module in its place, and go to the next step.
7. Install the cache module and batteries on the controller board.
a. Hold the controller board near the DIMM connector and at the top and right edges to minimize
bending of the board.
