Bottom cover
Description Spare part number
Bottom cover (includes 4 rubber feet) 801492-001
Before disassembling the computer, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation,
turn the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
Remove the bottom cover:
1. Close the computer.
2. Turn the computer upside down with the front toward you.

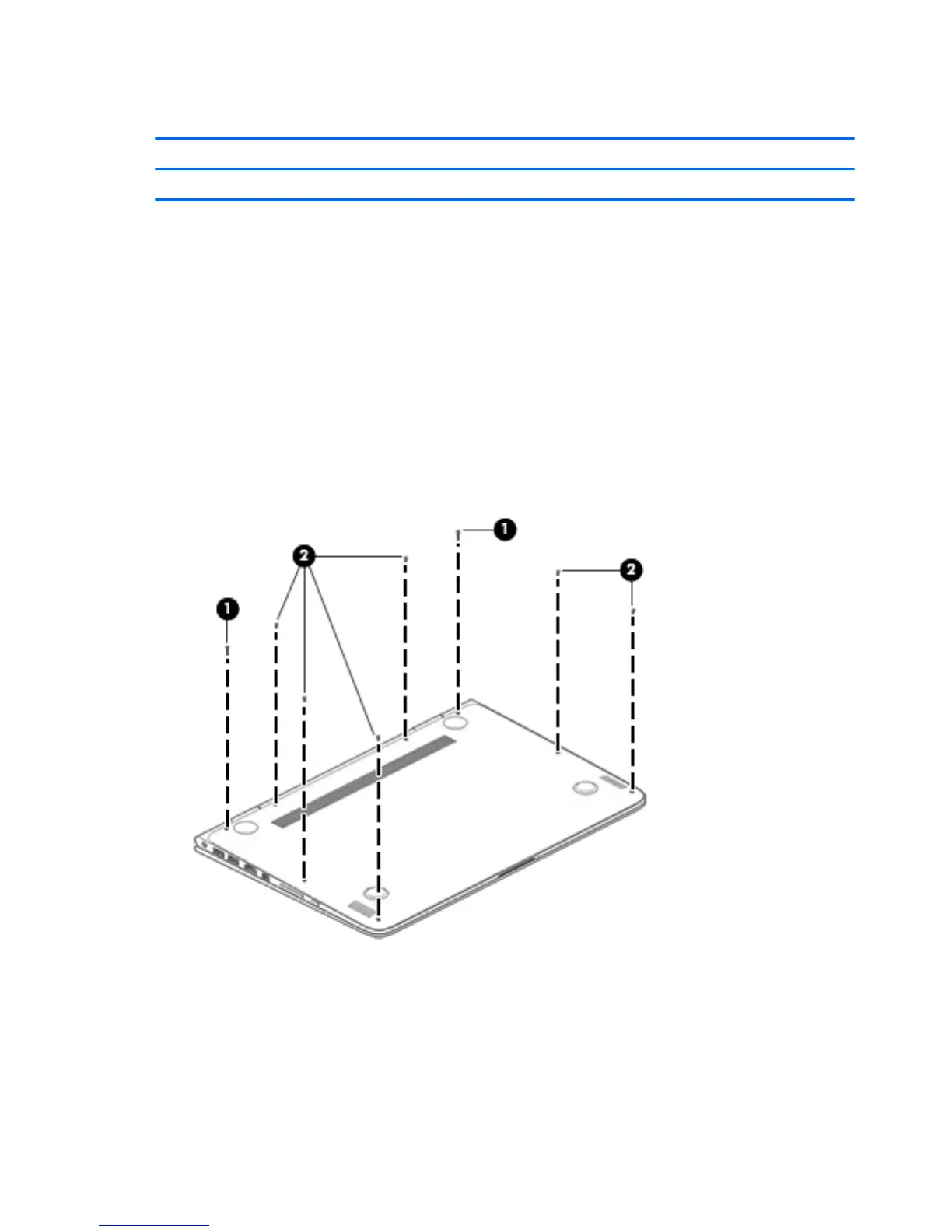

3. Remove the two Torx5 T5M2.0×8.0 screws (1) and the six Torx5 T5M2.0×3.9 screws (2) that
secure the bottom cover to the computer.
4. Separate the rear edge of the bottom cover (1) from the top cover until it rests at an angle.
22 Chapter 5 Removal and replacement procedures
