HP Spectre Pro x360 G2 User Manual

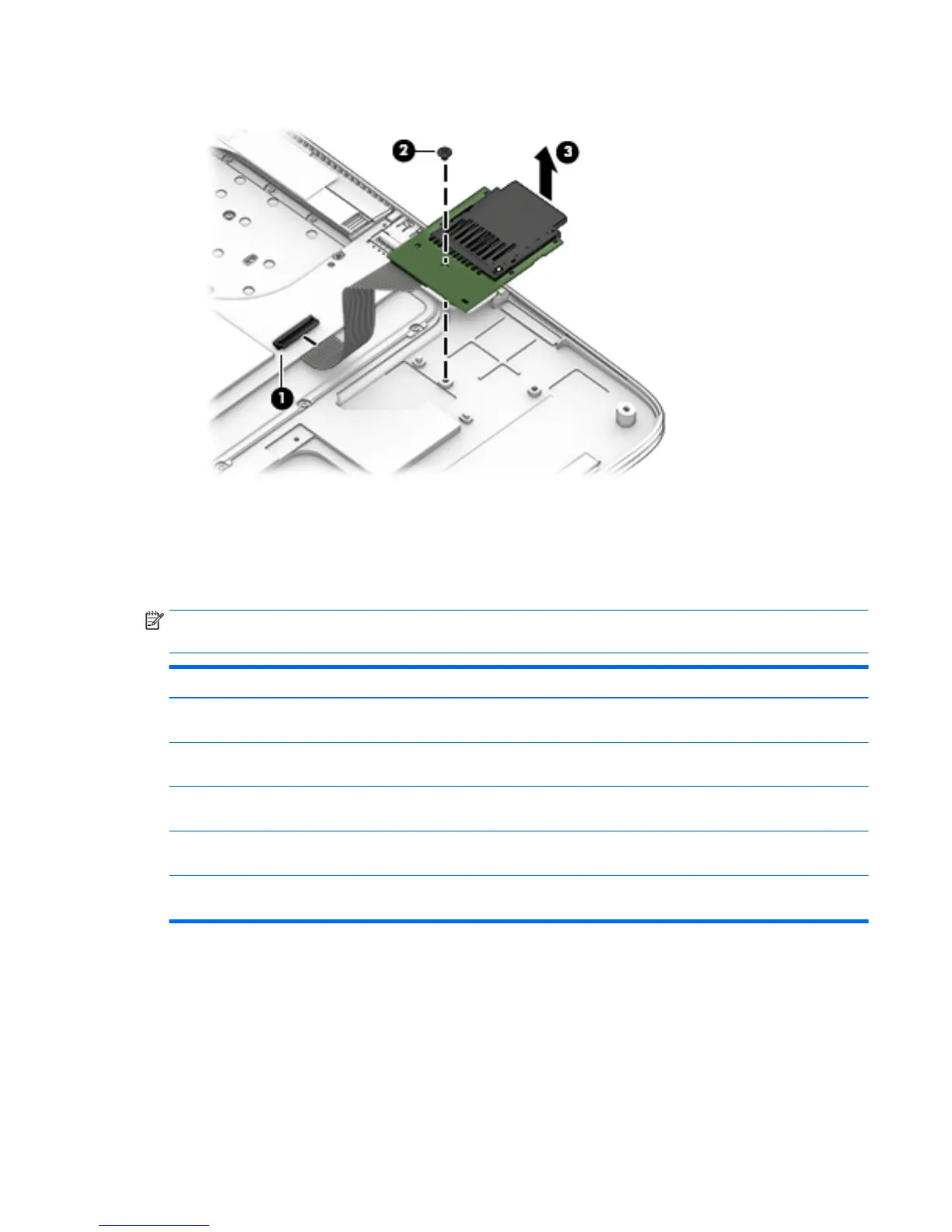

3. Remove the card reader board (3) and cable from the top cover.
4. Remove the card reader board.
Reverse this procedure to install the card reader board.
System board
NOTE: The system board spare part kit includes a graphics subsystem with UMA memory and replacement
thermal material.
Description Spare part number
Equipped with an Intel Core i7-6600U 2.60-GHz (SC turbo up to 3.4-GHz) processor (1600-MHz FSB,
4.00-MB L2 cache, dual core, 15 W), 8.0-GB of system memory, and the Windows 10 operating system
847450-601
Equipped with an Intel Core i5-6300U 2.40-GHz (SC turbo up to 3.00-GHz) processor (1866-MHz FSB,
3.00-MB L2 cache, dual core, 15 W), 8.0-GB of system memory, and the Windows 10 operating system
847448-601
Equipped with an Intel Core i5-6300U 2.40-GHz (SC turbo up to 3.00-GHz) processor (1866-MHz FSB,
3.00-MB L2 cache, dual core, 15 W), 4.0-GB of system memory, and the Windows 10 operating system
847447-601
Equipped with an Intel Core i5-6200U 2.30-GHz (SC turbo up to 2.80-GHz) processor (1866-MHz FSB,
3.00-MB L2 cache, dual core, 15 W), 8.0-GB of system memory, and the Windows 10 operating system
849426-601
Equipped with an Intel Core i5-6200U 2.30-GHz (SC turbo up to 2.80-GHz) processor (1866-MHz FSB,
3.00-MB L2 cache, dual core, 15 W), 4.0-GB of system memory, and the Windows 10 operating system
849427-601
Before removing the system board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is o or in Hibernation,
turn the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by rst unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
System board 31

HP Spectre Pro x360 G2 Specifications

General

Form factor	Convertible (Folder)
Product type	Hybrid (2-in-1)
Product color	Silver
Country of origin	China
Motherboard chipset	Intel SoC
Numeric keypad	No
Pointing device	Touchpad
Full-size keyboard	Yes
Internal memory	8 GB
Memory clock speed	1600 MHz
Internal memory type	LPDDR3-SDRAM
Memory layout (slots x size)	1 x 8 GB
SSD capacity	The Solid State Drive's storage capacity in Gigabytes.
SSD interface	M.2, SATA
Storage media	SSD
Total storage capacity	256 GB
Compatible memory cards	SD, SDHC, SDXC
Number of SSDs installed	1
Operating system architecture	64-bit
Display surface	Gloss
Display diagonal	13.3 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Native aspect ratio	16:9
On-board graphics card ID	1916
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 520
On-board graphics card family	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
On-board graphics card OpenGL version	4.4
On-board graphics card base frequency	300 MHz
On-board graphics card DirectX version	12.0
On-board graphics card dynamic frequency (max)	1000 MHz
Battery capacity	56 Wh
Number of battery cells	3
Intel segment tagging	Home Office, Small Business
Number of built-in speakers	2
WWAN	Not installed
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.2
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Charging port type	DC-in jack
USB 2.0 ports quantity	0
Bus type	QPI
Stepping	D1
Tjunction	100 °C
Processor cache	3 MB
System bus rate	4 GT/s
Processor family	Intel® Core™ i5
Processor series	Intel Core i5-6200 series
Processor socket	LGA 1356 (Socket B2)
Processor threads	4
Processor codename	Skylake
Configurable TDP-up	25 W
Processor frequency	2.3 GHz
Processor cache type	Smart Cache
Configurable TDP-down	7.5 W
Processor lithography	14 nm
Processor manufacturer	Intel
Processor front side bus	- MHz
PCI Express slots version	3.0
Processor boost frequency	2.8 GHz
PCI Express configurations	1x4, 4x1
Thermal Design Power (TDP)	15 W
Configurable TDP-up frequency	2.4 GHz
Configurable TDP-down frequency	0.8 GHz
Maximum number of PCI Express lanes	12
Processor code	SR2EY
Processor ARK ID	88193
Processor package size	42 X 24 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Intel Smart Response Technology version	1.00
Intel Stable Image Platform Program (SIPP) version	0.00
AC adapter power	45 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19 V
Sustainability certificates	RoHS, EPEAT Silver, ENERGY STAR
HP segment	Business
HP Software provided	HP Wireless Hotspot

Weight and Dimensions

Depth	218 mm
Width	325 mm
Height	15.4 mm
Weight	1480 g
