Display assembly
Description Spare part number
Display assembly (full hinge-up; includes display panel cable, microphones, hinges, webcam,
and wireless antenna cables and transceivers)
907334-001
Before removing the display assembly, follow these steps:
1. Turn o the computer. If you are unsure whether the computer is o or in Hibernation,
turn the computer on, and then shut it down through the operating system.
2. Disconnect the power from the computer by unplugging the power cord from the computer.
3. Disconnect all external devices from the computer.
4. Remove the bottom cover (see Bottom cover on page 22), and then remove the following components:
5. Disconnect the battery cable from the system board (see Battery on page 24).
Remove the display assembly:

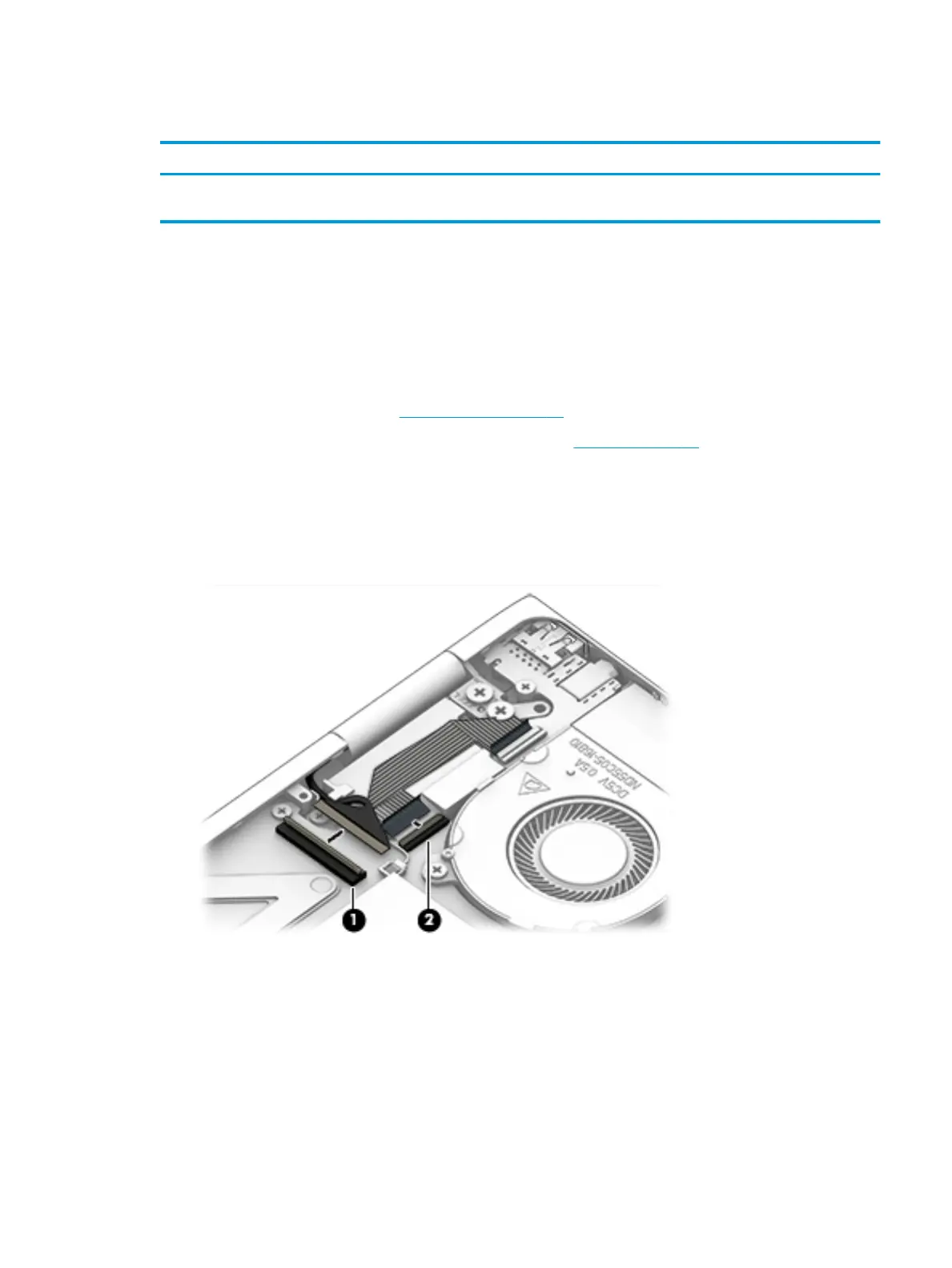

1. Open the computer to the interactive position, as shown in the following illustrations.
2. Release the ZIF connector and then disconnect the display cable from the system board (1).
3. Release the ZIF connector and then disconnect the audio cable from the system board (1).
Display assembly 45
