56 Parts catalog

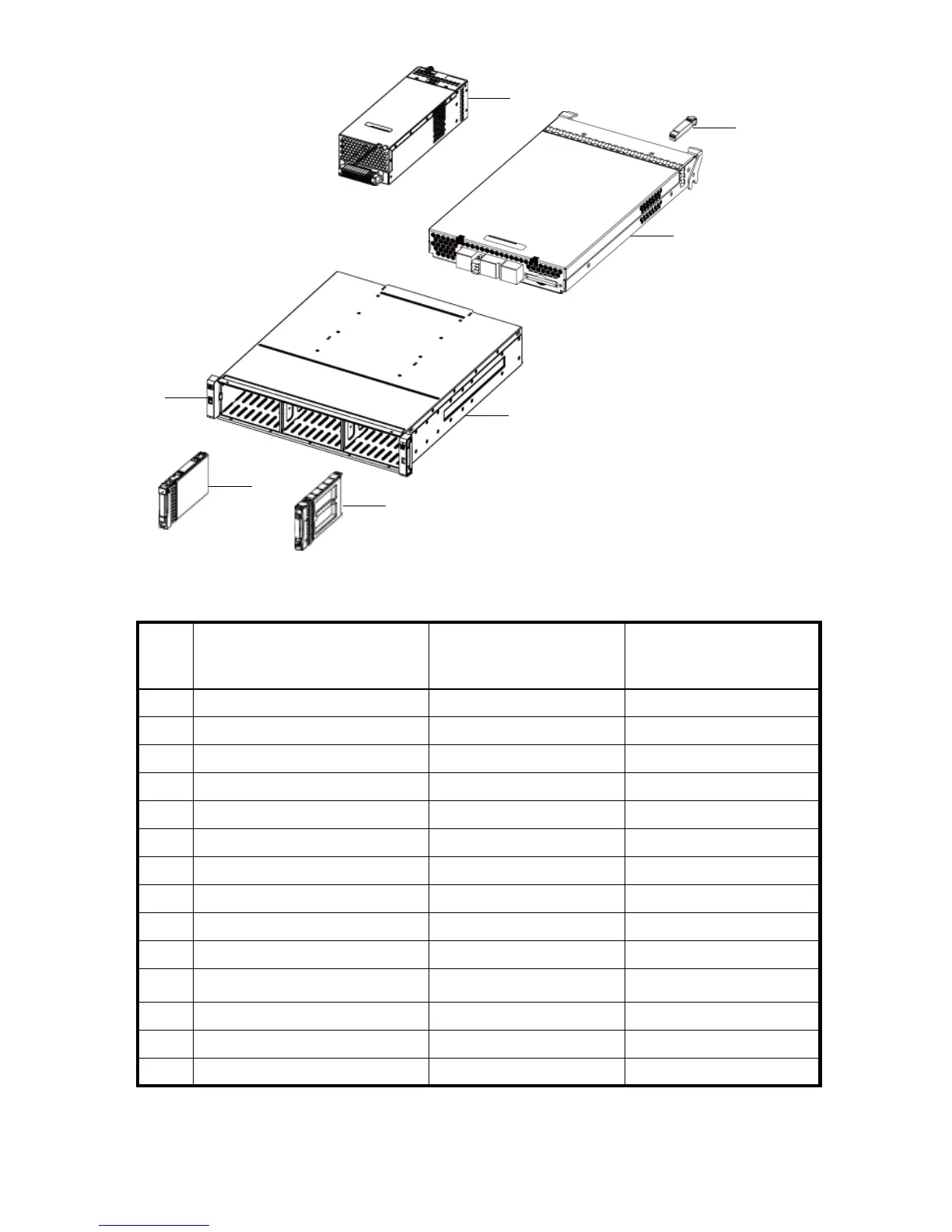

Figure 5 MSA2324fc exploded view
Table 12 MSA2324fc parts list
Item Description Spares part number CSR
Mandatory
Optional
1 SPS-BLANK,HDD 376383-002 Mandatory
2 Hard drives — —
a) 36-GB SAS, 10K rpm 376596-001 Mandatory
b) 36-GB SAS, 15K rpm 432332-001 Mandatory
c) 72-GB SAS, 10K rpm 447447-021 Mandatory
d) 72-GB SAS, 15K rpm 418373-001 Mandatory
e) 146-GB SAS, 10K rpm 432320-001 Mandatory
f) 60-GB SATA, 5.4 rpm 405419-001 Mandatory
g) 80-GB SATA, 5.4 rpm 431907-00 Mandatory
h) 160GB SATA, 5.4 rpm 431909-00 Mandatory
3SPS-EAR KIT
508296-001 Mandatory
4 SPS-CHASSIS-w/midplane 490095-001 Mandatory
5 SPS-CONTROLLER,2300fc 490092-001 Mandatory
6SPS-SFP,XCVR 481345-001 Mandatory
6
3
7
2
4
1
5
