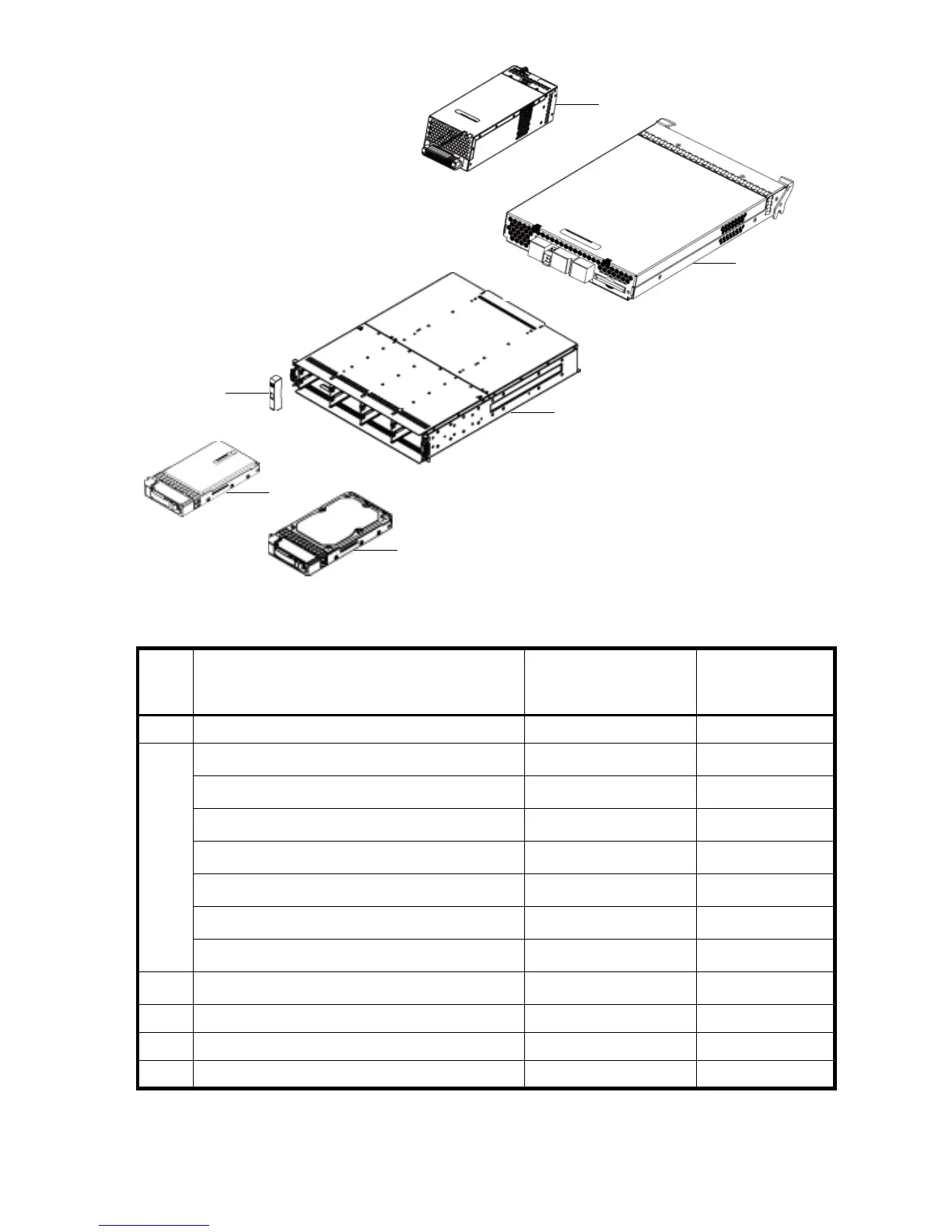

Figure 6 MSA2000 3.5 12-drive enclosure exploded view
Table 13 MSA2000 3.5 12-drive enclosure parts list
Item Description Spares part number CSR
Mandatory
Optional
1 SPS-BLANK,HDD 481344-001 Mandatory
2 Hard drives —
—
a) SPS—DRV, HD 146GB MSA2 3.5” 15K DP SAS
480937-001
Mandatory
b)
SPS—DRV, HD 300GB MSA2 3.5” 15K DP SAS 480938-001
Mandatory
c) SPS—DRV, HD 400GB MSA2 3.5” 10K DP SAS 480939-001
Mandatory
d) SPS—DRV, HD 500GB MSA2 3.5” 7.2K SATA 480940-001
Mandatory
e) SPS—DRV, HD 750GB MSA2 3.5” 7.2K SATA 480941-001
Mandatory
f) SPS—DRV, HD 1TB MSA2 3.5” 7.2K SATA 480942-001
Mandatory
3SPS-EAR KIT 508296-001
Mandatory
4 SPS-CHASSIS-w/midplane 481321-001 Mandatory
5 SPS-ENCLOSURE,I/O MODULE 481342-001 Mandatary
6 SPS-POWER SUPPLY 481320-001 Mandatory
6
5
1
2
3
4
