Ultrium 960, Ultrium 448, Ultrium 460, Ultrium 230, DLT VS80, SDLT 320 17

• The correct orientation of the left rail is shown in Figure 6. Repeat this procedure for the right

rail.

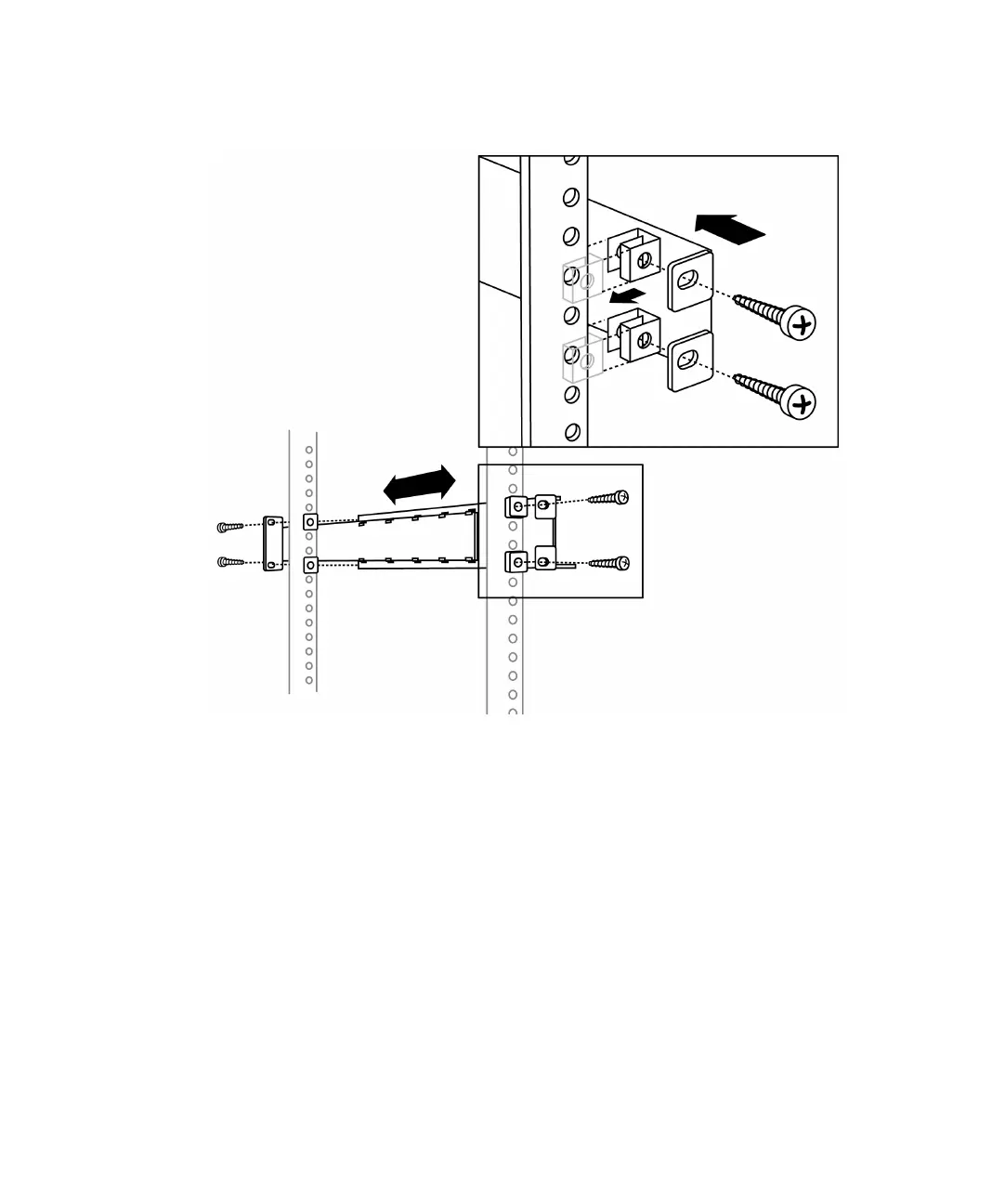

Figure 6 Installing rails in the rack (left side shown)
