8. Carefully pull the cartridge lock release lever as shown in Figure 20 away from the cartridge
carrier allowing the cartridge to slide out of the carrier.

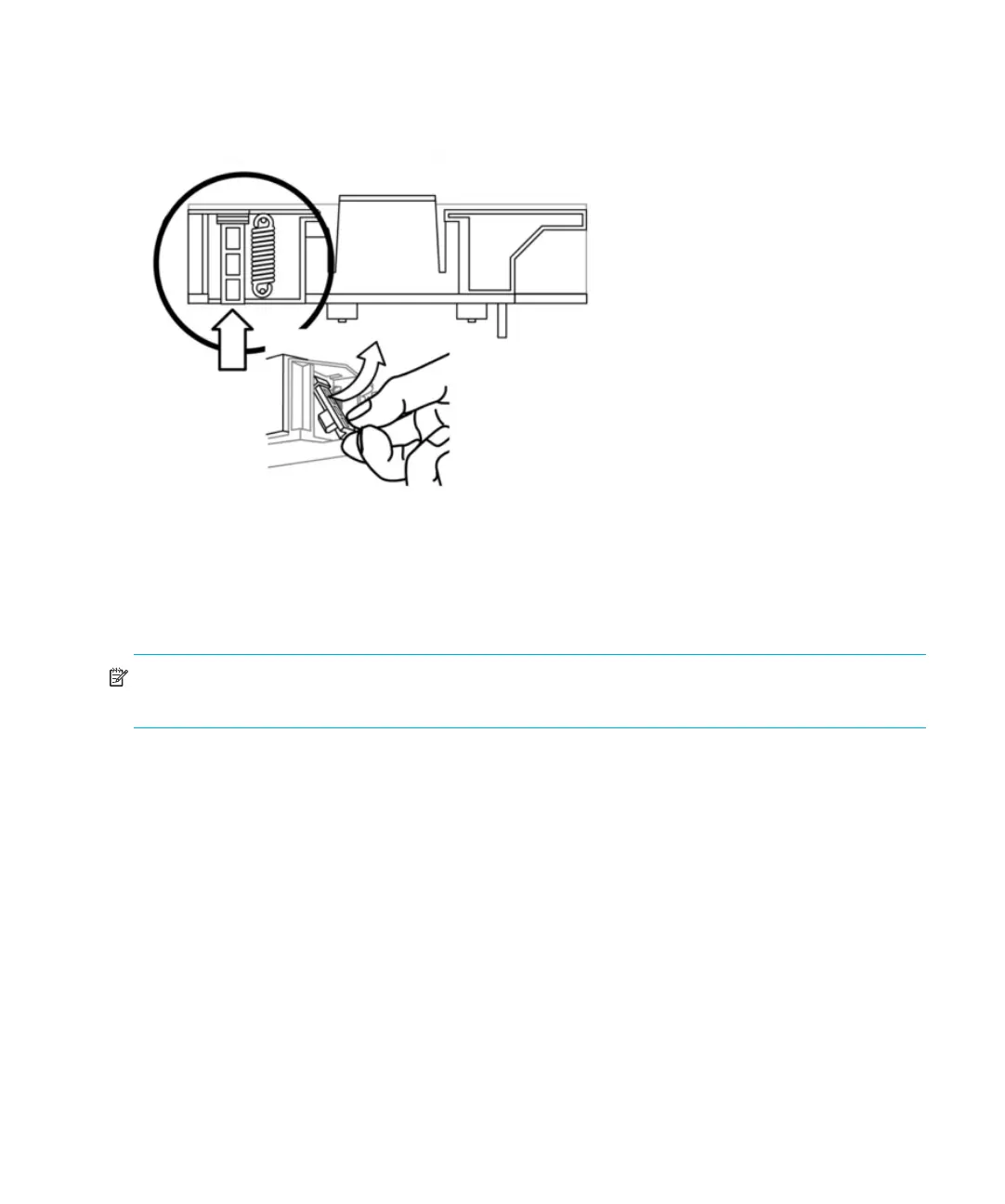

Figure 20 Pull cartridge lock release lever
9. After removing the cartridges from the desired carriers, reinstall each carrier by placing it on the
belt and rotating it clockwise until the tab engages with the belt.
• Make sure that the rollers on the bottom of the carrier are aligned in the carrier tracks.
• Make sure that the belt tab beneath each carrier is inserted into the proper autoloader belt
loop.
NOTE: There are unused loops on the belt. The proper belt loops have an extra bump on the
outside of the loop (see Figure 19 on page 55).
10.Ensure the carrier is properly installed on the belt by gently pressing on the top of the carrier and
sliding it back and forth. If it is properly attached to the belt, it should not move. If the carrier
moves, reinstall the carrier.
11.Replace the top cover of the autoloader and reinstall the eleven cover screws and mounting
brackets.
Autoloader error codes
If an error occurs during operation of the autoloader, the autoloader stops the current operation and
displays an error code on the top line of the LCD screen. Unless otherwise noted in Table 18, try to
resolve the error by cycling power on the autoloader and retrying the last operation. If the error
persists, contact support personnel.
To view the error log:
1. From the Home screen or Main menu, press + or - until Information displays on the top
line of the LCD screen. Press Enter to access the available options.
